Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | FR-2 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Transport Case + Carton |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Battery Internal Resistance Tester | Impedance Measurement Range: | 0-10mΩ@2V, 0-100mΩ@6V/12V |
---|---|---|---|
Impedance Measurement Accuracy: | ±0.2%rdg | Battery Voltage Measurement Range: | 0-15V |
Temperature Measurement: | -20℃~80℃ | Communication Port: | USB |
High Light: | USB Battery Impedance Tester,Lithium Battery Impedance Tester,Ultraportable Battery Testing Kit |

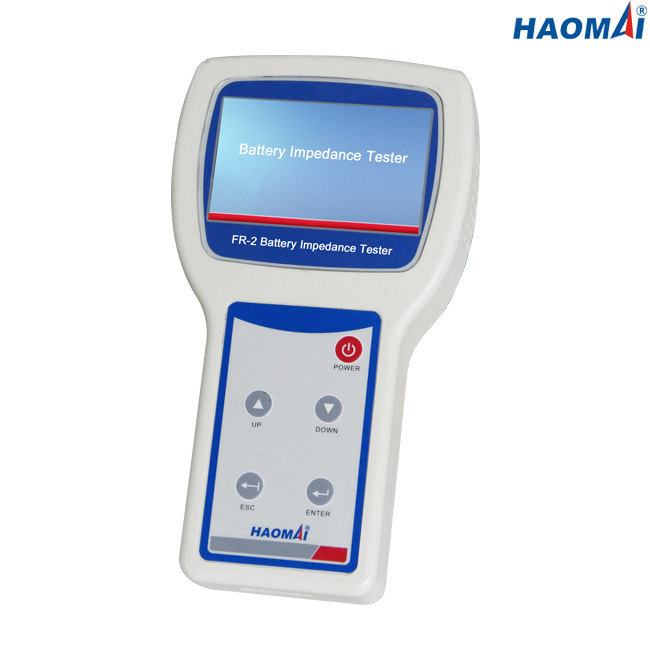

Battery Impedance Tester
Model: FR-2
Battery Impedance Tester adopts instantaneous large-current discharge method to measure the battery impedance, at the same time uses voltage measurement method to do the comprehensive analysis and judge the condition of battery exactly.
Main Features
1) Able to test battery impedance
2) Able to test battery voltage
3) Able to measure and calculate battery capacity
4) Able to test battery cell
5) Able to do continuous test cell by cell for battery bank
6) Programmed various reference impedance and voltage of battery to do comparison and analysis for tested battery and give voice prompt for determination results
7) Users can define battery type and reference impedance freely
8) The tester has graphic display and histogram analysis capability
9) The tester has battery capacity analysis capability
10) Up to 999 test results can be save into the tester
11) Test results can be copied via U disk
12) Able to do comparative analysis, graphic display and report generation by PC software
Technical Data
◇Battery Impedance Measurement
range: 0~10mΩ@2V, 0~100mΩ@6V/12V
accuracy: ±2%
resolution: 1μΩ
◇Battery Voltage Measurement
range: 0~15.0V
accuracy: ±0.5%
resolution: 1mV
◇Temperature Measurement
range: -20℃~80℃
accuracy: ±0.5%
◇Communication Port: USB
◇Power Supply: lithium battery(3.7V,6000mAH)
◇Test Time: >5 hours
◇Standby Time: >50 hours
◇Charger: AC100~240V(0.5A) / DC5V(3A)
◇Dimension: 232x132x48mm(9.13x5.20x1.89 in)
Battery Impedance Tester FR-2 is ideal instrument for testing battery impedance on site.
