Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015, Calibration Report |
Model Number: | CRM-200 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Transport Case + Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Contact Resistance Tester, Micro-ohmmeter | Max. Test Current: | 200A DC |
---|---|---|---|
Measurement Range: | 0-100mΩ @ 50A, 0-20mΩ @ 200A | Measurement Accuracy: | ±0.5% ± 2μΩ |
Current Output Mode: | Continuously Output | Operation: | 7-inch Touch Screen |
High Light: | 200A Contact Resistance Meter,Multipurpose Contact Resistance Meter,Lightweight Circuit Breaker Testing Kit |

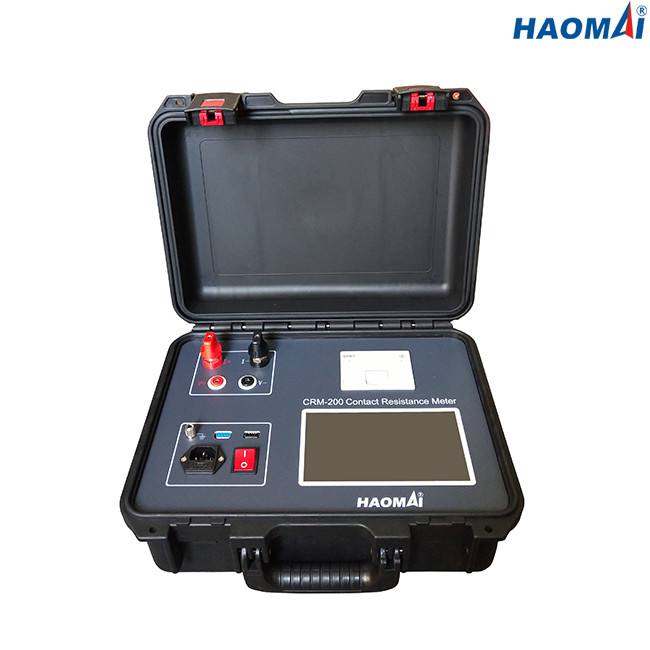

200A Contact Resistance Meter
Model: CRM-200
Contact Resistance Meter CRM-200 can provide test current up to 200A subject to the load resistance and supply voltage, which is suitable for testing circuit breaker contacts, switch contacts, busbar joints or other applications where high current is needed.
Contact Resistance Meter CRM-200 uses a four terminal measurement method to eliminate the resistance of the test leads from the measurement.
Main Features
●Max. test current: 200A DC
●0.1µΩ resolution
●Touch screen for operation
●7” colour LCD screen display
●On board memory for saving 1000 test results
●Download test results via USB interface
●Print the test result directly via built-in thermal printer
Technical Data
◇Max. test current: 200A DC
◇Measurement range: 0-100mΩ @ 50A
0-50mΩ @ 100A
0-20mΩ @ 150A
0-20mΩ @ 200A
◇Measurement accuracy: ±0.5% ± 2μΩ
◇Resolution: minimum 0.1µΩ
◇Current output mode: continuously output until the thermal protection
◇Output power: 1000W
◇Display mode: 7” colour LCD screen
◇Max memory capacity: 1000 test results
◇Power supply: AC 220V/230V±10%, 50Hz/60Hz
◇Dimension of host: 360x290x170mm(14.17x11.42x6.69 in)
◇Weight of host: 6.5kg(14.33 lb)
◇Environmental Condition
Storage temperature: -20℃~60℃
Operating temperature: -10℃~50℃
Humidity: <90%
◇Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326
Contact Resistance Meter CRM-200 is reliable tool for on-site testing.
Contact Resistance Meter CRM-200 is calibrated in the third party laboratory accredited under ISO/IEC 17025.
The Calibration Report is shown as below.
