| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015, Type Test Report, Calibration Report |
| Model Number: | RELAYSTAR-806 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Transport Case + Plywood Case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Relay Test Set, Relay Test Kit, Relay Tester, Secondary Injection Test Set | Current Output: | 3x0…40A |
|---|---|---|---|
| Voltage Output: | 4x0…150V | Output Accuracy: | ≤0.1% For AC Output |
| Max. Output Power: | 1x1000VA At 120A | Operation: | Local Mode + PC Mode |
| High Light: | ISO9001 3 Phase Relay Testing Kit,Multimode 3 Phase Relay Testing Kit,18kg Secondary Injection Kit For Relay Testing |
||

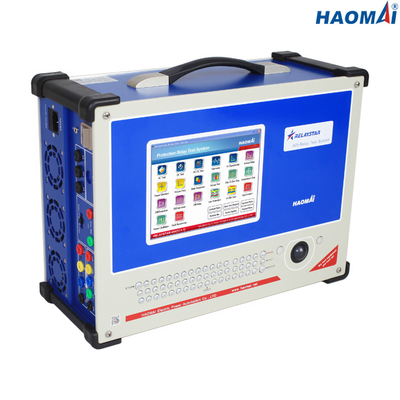

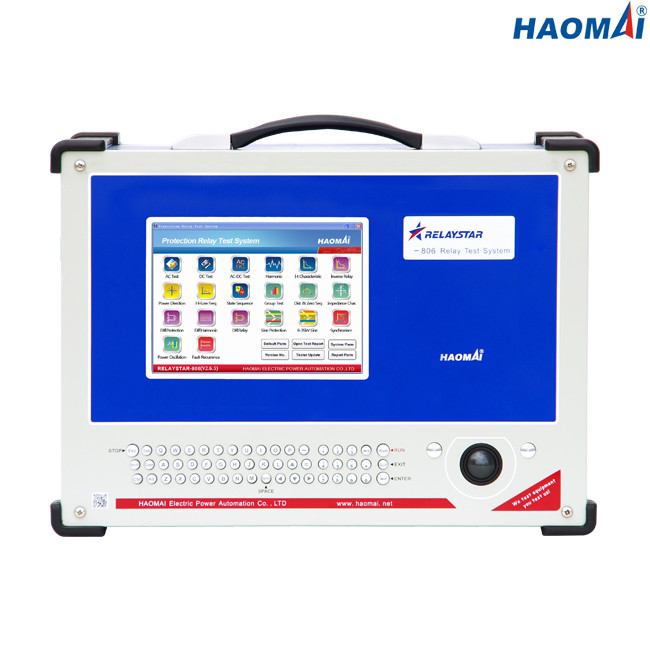

3-phase Protection Relay Test Set
Model: RELAYSTAR-806
The RELAYSTAR-806 is all-in-one protection relay test set for testing electro-mechanical, solid-state and microprocessor-based protective relays.
The unit is extremely compact and rugged. The design incorporates the latest in modern digital microprocessor technology to achieve unbeatable output characteristics in terms of power, accuracy, low distortion, and dynamic capability. This technology allows users to test many different specific functions required in relay testing, without the need of additional accessories. All output signals are digitally generated, amplified, and internally controlled by the Intelligent Generator Modules, which interpret the orders received from the front panel to produce a highly accurate, stable, and low distorted output, independent of the voltage supply.
The RELAYSTAR-806 is capable to perform end-to-end test via built-in GPS module and receiving accessory.
Main Features
1) 3-phase current(3×40A) + 4-phase voltage(4×150V) output
2) Embedded industrial PC with 8-inch LCD screen
3) Both local test and PC remote test available
4) High performance linear power amplifier
5) End to end test with in-built GPS
6) Independent Aux. DC
7) Intelligent self-protection
8) Abundant test modules
Technical Data
Current Generator
| Setting range | 3-phase AC(L-N) | 3x0…40A |
| 1-phase AC(LL-LN) | 1x0…120A | |
| DC(L-N) | 3x…±10A | |
|
Power
|
3-phase AC(L-N) | 3x300VA at 40A |
| 1-phase AC(LL-LN) | 1x1000VA at 120A | |
| DC(L-N) | 3x120VA at 10A | |
| Accuracy | AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A) | |
| DC: ±5mA(0~0.5A), ≤0.2% (0.5~10A) | ||
| Resolution | 1mA | |
Voltage Generator
| Setting range | 4-phase AC(L-N) | 4x0…150V |
| 1-phase AC(L-L) | 1x0…300V | |
| DC(L-N) | 3x…±160V | |
| Power | 4-phase AC(L-N) | 4x70VA at 150V |
| 1-phase AC(L-L) | 1x140VA at 300V | |
| DC(L-N) | 3x80VA at 160V | |
| Accuracy | AC: ±2mV(0.2~2V), ≤0.1% (2~150V) | |
| DC: ±10mV (0~5V), ≤0.2% (5~160V) | ||
| Resolution | 1mV | |
Auxiliary DC Supply
| Voltage range | 110V/220V(max.1.5A) |
| Power | max.165VA/330VA |
Binary Inputs
| Number | 8 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | “0”:0～6V; “1”:12V～250V |
| Max. measuring time | 999999.999s |
| Time accuracy | ±1ms |
| Time resolution | 1ms |
Binary Outputs
| Number | 4 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A, 250VDC/0.2A |
General Generators
| Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz),<10mHz(65~450Hz),<20mHz(450~1200Hz) | |
| resolution: 0.001Hz | |
| Phase | range: -360° ~+360° |
| accuracy: 0.1° | |
| resolution: 0.01° | |
| Harmonic | superposition order: 2~24 times |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | customized (AC 220V/230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 115V |
| Connection | standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight | 18kg(39.68 lb) |
| Dimensions (W x H x D, without handle) | 405×300×164mm(15.94x11.81x6.46 in) |
| Connection port | 2 USB2.0 ports, 1 Ethernet port |
The compact design and high performance linear power amplifier make 3-phase protection relay test set RELAYSTAR-806 particularly suitable for testing and commissioning work in distribution and industrial systems.
3-phase Protection Relay Test Set RELAYSTAR-806 passed the Type Test in China KETOP laboratory accredited under ISO/IEC 17025.
3-phase Protection Relay Test Set RELAYSTAR-806 is also calibrated in the third party laboratory accredited under ISO/IEC 17025.
The Type Test Report and Calibration Report issued by laboratory are shown as below.
