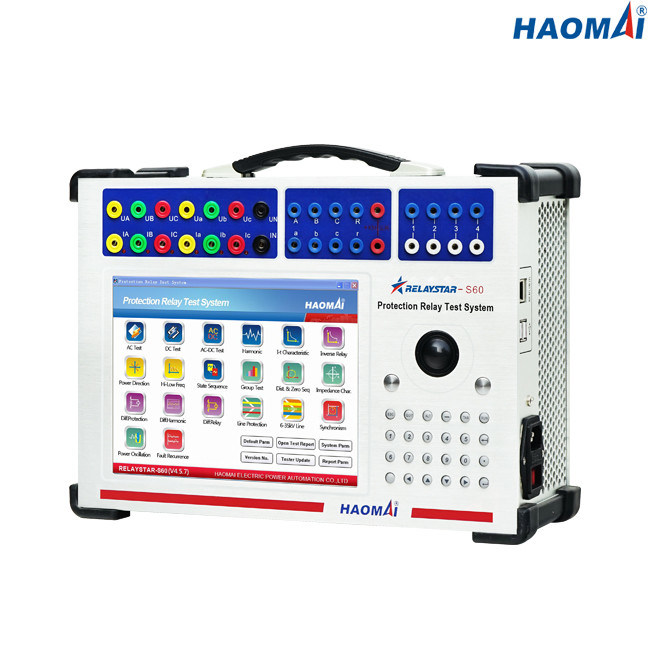

Ultraportable 6-phase Secondary Injection Test Set
Model: RELAYSTAR-S60
The RELAYSTAR-S60 is all-in-one Secondary Injection Test Set for testing a wide variety of electro-mechanical, solid-state and microprocessor-based protective relays, and similar protective devices. This Secondary Injection Test Set is capable of performing standard relay calibration and verification testing, state simulation and transient testing. RELAYSTAR-S60 can deliver full VA power with resistive, inductive and capacitive loads at maximum current rating.
With 12 high-level analog sources (six voltage, six current), RELAYSTAR-S60 is configurable for bench testing and proof-of-concept testing for complicated relaying schemes.
Main Features:
1) Small, rugged and lightweight design
2) Embedded industrial PC with 10.4-inch LCD screen
3) Operate with or without a computer
4) 6-phase current(6×30A) + 6-phase voltage(6×150V) output
5) High current output: 30 Amps at 200 VA per phase
6) Wide-ranging output frequency
7) Powerful RELAYSTAR software for local and PC remote
Technical Data
Current Generator
Setting range | 6-phase AC(L-N) | 6x0…30A |
3-phase AC(L-N) | 3x0…60A | |
1-phase AC(LL-LN) | 1x0…180A | |
DC(L-N) | 6x0…±10 A | |
Power | 6-phase AC(L-N) | 6x200VA at 30A |
3-phase AC(L-N) | 3x300VA at 60A | |
1-phase AC(LL-LN) | 1x600VA at 180A | |
DC(L-N) | 6x100VA at 10A | |
Accuracy | AC: ±1mA(≤0.2A), ≤0.1% (0.2~30A) | |
DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A) | ||
Resolution | 1mA |
Voltage Generator
Setting range | 6-phase AC(L-N) | 6x0…150V |
3-phase AC(L-N) | 3x0…300V | |
DC(L-N) | 6x0…±160V | |
Power | 6-phase AC(L-N) | 6x60VA at 150V |
3-phase AC(L-N) | 3x100VA at 300V | |
DC(L-N) | 6x60VA at 160V | |
Accuracy | AC: ±2mV(0.2~2V), ≤0.1% (2~150V) | |
DC: ±10mV (0.5~5V), ≤0.2% (5~160V) | ||
Resolution | 1mV |
Binary Inputs
Number | 8 |
Input characteristics | idle contact or potential-free contact |
Threshold characteristics | “0”:0~6V; “1”:12V~250V |
Max. measuring time | 999999.999s |
Time accuracy | ±1ms |
Time resolution | 1ms |
Binary Outputs
Number | 4 |
Type | idle contact |
Break capacity | 250VAC/0.5A, 250VDC/0.2A |
General Generators
Frequency | range: 0~1200Hz |
accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz) | |
resolution: 0.001Hz | |
Phase | range: -360° ~+360° |
accuracy: 0.1° | |
resolution: 0.01° | |
Harmonic | superposition order: 2~24 times |
distortion: ≤0.5% |
Power Supply
Nominal input voltage | customized (AC 220V/230V/120V±10%, 1-phase) |
Nominal frequency | 50/60 Hz |
Rated current | 10A at 230V / 12A at 115V |
Connection | standard AC socket (IEC 60320) |
Environmental Conditions
Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
Humidity range | relative humidity 5 ... 95 %, non-condensing |
Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
Weight | 10.6kg(26.37 lb) |
Dimensions (W x H x D, without handle) | 350×250×120mm(13.78x9.84x4.72 in) |
Connection port | 2 USB2.0 ports, 1 Ethernet port |
Ultraportable 6-phase Secondary Injection Test Set RELAYSTAR-S60 is an excellent choice for testing and commissioning engineers to perform protection relay testing on site.
Ultraportable 6-phase Secondary Injection Test Set RELAYSTAR-S60 is developed and manufactured under an ISO 9001 registered system. RELAYSTAR-S60 has perfect protection. All current and voltage outputs are fully overload and short circuit proof and protected against external high-voltage transient signals and over temperature.
