Economical 6-phase Protection Relay Test Set
Model: HME-1200

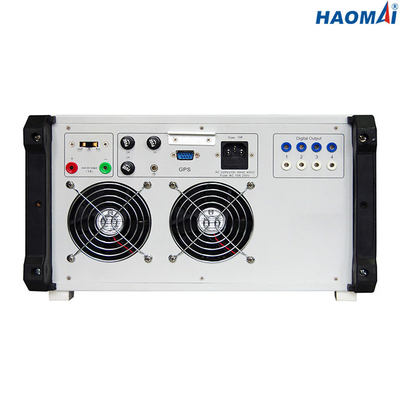

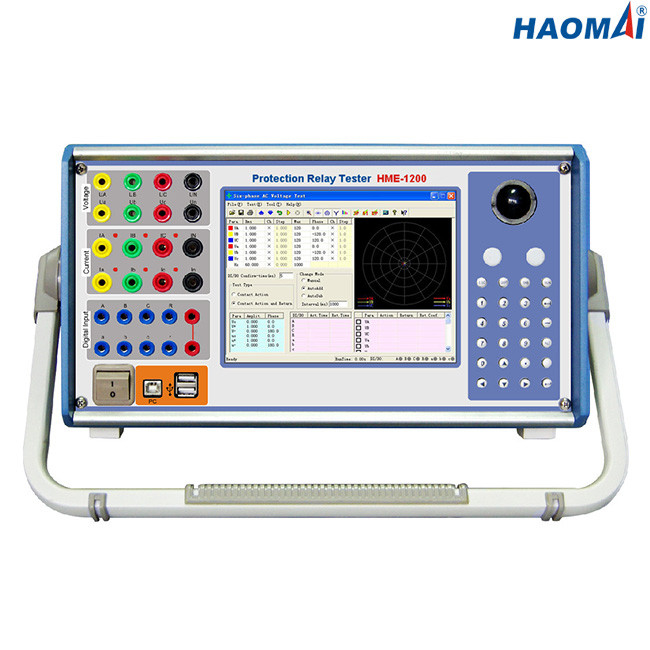

The HME-1200 is all-in-one protection relay test set, which outputs 6-phase current(6×30A) & 6-phase voltage(6×120V) for testing conventional protection relays.
The embedded industrial PC with 8-inch LCD screen, keyboard and trackball mouse are adopted to make HME-1200 run without a PC. It is also available to connect HME-1200 to PC for completing various tests.
The new high-fidelity linear amplifier is used for HME-1200 to avoid high and medium frequency interference on the test site, and ensure smooth and accurate waveform from large current to small current.
Main Features
● Most cost-effective 6-phase relay tester
● 6-phase current(6×30A) + 6-phase voltage(6×120V) output
● Embedded industrial PC with 8-inch LCD screen
● Both local test and PC remote test available
● Adopt high fidelity and high reliability linear amplifier
● Abundant test modules for testing various protection relays
Technical Data
Current Generator
| Setting range | 6-phase AC(L-N) | 6x0…30A |
| 3-phase AC(L-N) | 3x0…60A | |
| 1-phase AC(LL-LN) | 1x0…180A | |
| DC(L-N) | 6x0…±10 A | |
| Power | 6-phase AC(L-N) | 6x300VA at 30A |
| 3-phase AC(L-N) | 3x450VA at 60A | |
| 1-phase AC(LL-LN) | 1x1000VA at 180A | |
| DC(L-N) | 6x70VA at 10A | |
| Accuracy | AC: ≤0.2% | |
| DC: ≤0.5% | ||
| Resolution | 1mA | |
Voltage Generator
| Setting range | 6-phase AC(L-N) | 6x0…120V |
| 3-phase AC(L-N) | 3x0…240V | |
| DC(L-N) | 6x0…±160V | |
| Power | 6-phase AC(L-N) | 6x80VA at 120V |
| 3-phase AC(L-N) | 3x100VA at 240V | |
| DC(L-N) | 6x70VA at 160V | |
| Accuracy | AC: ≤0.2% | |
| DC: ≤0.5% | ||
| Resolution | 1mV | |
Auxiliary DC Supply
| Voltage range | 110V/220V(max.1.5A) |
| Power | max.165VA/330VA |
Digital Inputs
| Number | 8 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | “0”:0～6V; “1”:12V～250V |
| Max. measuring time | 999999.999s |
| Time accuracy | ±1ms |
| Time resolution | 1ms |
Digital Outputs
| Number | 8 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A, 250VDC/0.2A |
General Generators
| Frequency | range: 0~1000Hz |
| accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1000Hz) | |
| resolution: 0.01Hz | |
| Phase | range: -360° ~+360° |
| accuracy: 0.1° | |
| resolution: 0.1° | |
| Harmonic | superposition order: 2~20 times |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | customized (AC230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 120V |
| Connection | standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight | 20.3kg(44.75 lb) |
| Dimensions (W x H x D, without handle) | 470×550×280mm(18.50x21.65x11.02 in) |
| Connection port | 2 USB ports, 1 serial port |
The HME-1200 is the economical 6-phase Protection Relay Test Set for testing conventional protection relays.
