Name: Ultraportable Protective Relay Test System Lightweight IEC 61010-1
Brand: HAOMAI
SKU: RELAYSTAR-S60

Ultraportable Protective Relay Test System Lightweight IEC 61010-1

Product Details:

Place of Origin:	China
Brand Name:	HAOMAI
Certification:	ISO9001:2015, Calibration Report
Model Number:	RELAYSTAR-S60

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Transport Case + Plywood Case
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	400 sets per month

Contact Now

Detailed Product Description

Product Name:	Relay Tester, Relay Test Kit, Secondary Injection Test Set	Current Output:	6x0…30A
Voltage Output:	6x0…150V	Output Accuracy:	≤0.1% For AC Output
Operation:	Local Mode + PC Mode	Weight:	10.6kg(26.37 Lb)
High Light:	Ultraportable Relay Test System , Lightweight Relay Test System , IEC 61010-1 Protective Relay Test Equipment

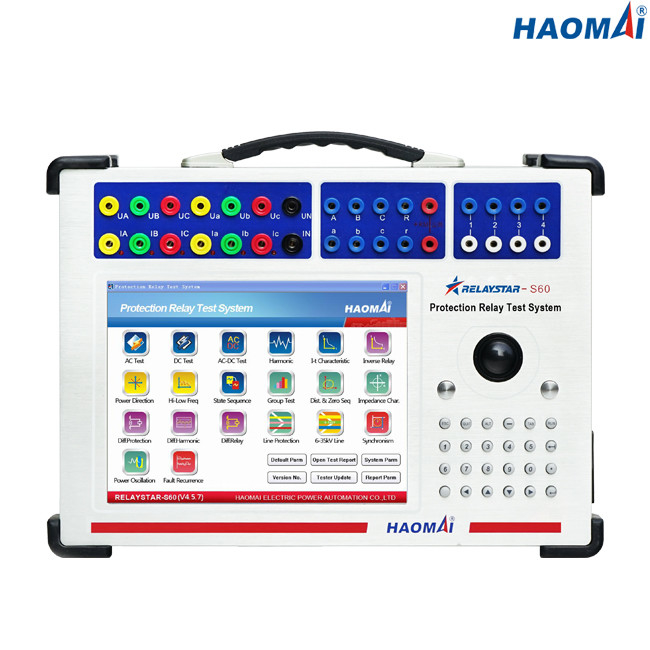

Ultraportable Six-phase Relay Test System

Model: RELAYSTAR-S60

The RELAYSTAR-S60 is ultra-portable protection relay test system that delivers performance verification testing of electromechanical, solid-state and microprocessor-based protective relays in their operating installations.

The RELAYSTAR-S60 is a rugged test set suitable for testing a variety of protective relays operated in both indoor and outdoor environments. The unit’s ergonomic design and intuitive control panel layout make it ideal for first-time users who have little or no training.

Main Features:

1) 6-phase current(6×30A) + 6-phase voltage(6×150V) output

2) Embedded industrial PC with 10.4-inch LCD screen

3) Convenient front-panel display indicates active voltage/current amplitudes and phase values during testing

4) Analog testing of 1A and 5A protection devices

5) Perform state simulation and transient testing

6) COMTRADE viewer and playback

7) Lower weight: only 10.6kg(26.37 lb)

Technical Data

Current Generator

Setting range	6-phase AC(L-N)	6x0…30A
	3-phase AC(L-N)	3x0…60A
	1-phase AC(LL-LN)	1x0…180A
	DC(L-N)	6x0…±10 A
Power	6-phase AC(L-N)	6x200VA at 30A
	3-phase AC(L-N)	3x300VA at 60A
	1-phase AC(LL-LN)	1x600VA at 180A
	DC(L-N)	6x100VA at 10A
Accuracy	AC: ±1mA(≤0.2A), ≤0.1% (0.2~30A)
Accuracy	DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A)
Resolution	1mA

Voltage Generator

Setting range	6-phase AC(L-N)	6x0…150V
	3-phase AC(L-N)	3x0…300V
	DC(L-N)	6x0…±160V
Power	6-phase AC(L-N)	6x60VA at 150V
	3-phase AC(L-N)	3x100VA at 300V
	DC(L-N)	6x60VA at 160V
Accuracy	AC: ±2mV(0.2~2V), ≤0.1% (2~150V)
	DC: ±10mV (0.5~5V), ≤0.2% (5~160V)
Resolution	1mV

Binary Inputs

Number	8
Input characteristics	idle contact or potential-free contact
Threshold characteristics	“0”:0～6V; “1”:12V～250V
Max. measuring time	999999.999s
Time accuracy	±1ms
Time resolution	1ms

Binary Outputs

Number	4
Type	idle contact
Break capacity	250VAC/0.5A, 250VDC/0.2A

General Generators

Frequency	range: 0~1200Hz
	accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz)
	resolution: 0.001Hz
Phase	range: -360° ~+360°
	accuracy: 0.1°
	resolution: 0.01°
Harmonic	superposition order: 2~24 times
Harmonic	distortion: ≤0.5%

Power Supply

Nominal input voltage	customized (AC 220V/230V/120V±10%, 1-phase)
Nominal frequency	50/60 Hz
Rated current	10A at 230V / 12A at 115V
Connection	standard AC socket (IEC 60320)

Environmental Conditions

Operation temperature	0 ... +50 °C (+32 ... +122 °F)
Storage temperature	-25 ... +70 °C (-13 ... +158 °F)
Humidity range	relative humidity 5 ... 95 %, non-condensing
Vibration	IEC 60068-2-6(20m/s2 at 10 ... 150 Hz)

Miscellaneous

Weight	10.6kg(26.37 lb)
Dimensions (W x H x D, without handle)	350×250×120mm(13.78x9.84x4.72 in)
Connection port	2 USB2.0 ports, 1 Ethernet port

Safety Standards, Electromagnetic Compatibility

EMC	The product adheres to the electromagnetic compatibility (EMC) Directive 2004/108/EC(CE conform)
	IEC 61326-1; IEC 61000-6-4; IEC 61000-3-2/3
Safety	The product adheres to the low voltage Directive 2006/95/EC(CE conform).
	IEC 61010-1

Ultraportable Six-phase Relay Test System RELAYSTAR-S60 is an excellent choice for testing and commissioning engineers to perform protection relay testing on site.

Ultraportable Six-phase Relay Test System RELAYSTAR-S60 is quite convenient to carry for users due to super-small size and much lower weight 10.6kg(26.37 lb).

Ultraportable Six-phase Relay Test System RELAYSTAR-S60 is capable to test all generations and types of protection relays as below according to requirements of ANSI/IEEE.

ANSI / IEEE No.	Device or Function Name
2	Time Delay Staring
3	Checking or Interlocking Relay
7	Rate-of-change Relay
13	Synchronous-speed Device
15	Speed or Frequency, Matching Device
16	Data Communication Device
18	Accelerating or Decelerating Device
21	Distance Relay
24	Volts per Hertz Relay
25	Synchronizing or Synchronism-check Device
27	Undervoltage Relay
30	Annunciator Relay
32	Directional Power Relay
36	Polarity or Polarizing Voltage Device
37	Undercurrent or Underpower Relay
40	Field Relay
44	Unit Sequence Starting Relay
46	Reverse-phase or Phase-balance Current Relay
47	Phase-sequence Voltage Relay
48	Incomplete Sequence Relay
50	Instantaneous Overcurrent or Rate of Rise Relay
51	AC Time Overcurrent Relay
55	Power Factor Relay
59	Overvoltage Relay
60	Voltage or Current Balance Relay
62	Time-delay Stopping or Opening Relay
66	Notching or Jogging Device
67	AC Directional Overcurrent Relay
68	Out-of-step or Blocking Relay
69	Permissive Control Device
74	Alarm Relay
76	DC Current Relay
77	Telemetering Device
78	Phase-angle Measuring Relay
79	AC Reclosing Relay
81	Frequency Relay
82	DC Load-measuring Reclosing Relay
83	Automatic Selective Control or Transfer Relay
85	Carrier or Pilot-wire Receiver Relay
86	Lockout Relay
87	Differential Protective Relay
91	Voltage Directional Relay
92	Voltage and Power Directional Relay
94	Tripping or Trip-free Relay
--	Phasor Measurement Unit
--	Power Quality Monitor
