| Product Name: | Protection Relay Test Set, Relay Test Kit, Relay Test System | Current Output: | 6x0…32A |
|---|---|---|---|
| Voltage Output: | 4x0…300V | Output Accuracy: | ≤0.05% For AC Output |
| End-to-end Test: | By Built-in GPS | Operation: | External PC |
| High Light: | HAOMAI Secondary Injection Test Set,4x300V Secondary Injection Test Set,6Phase Protection Relay Testing Equipment |
||
High Voltage Six-phase Secondary Injection Test Set
Model: RELAYSTAR-H60

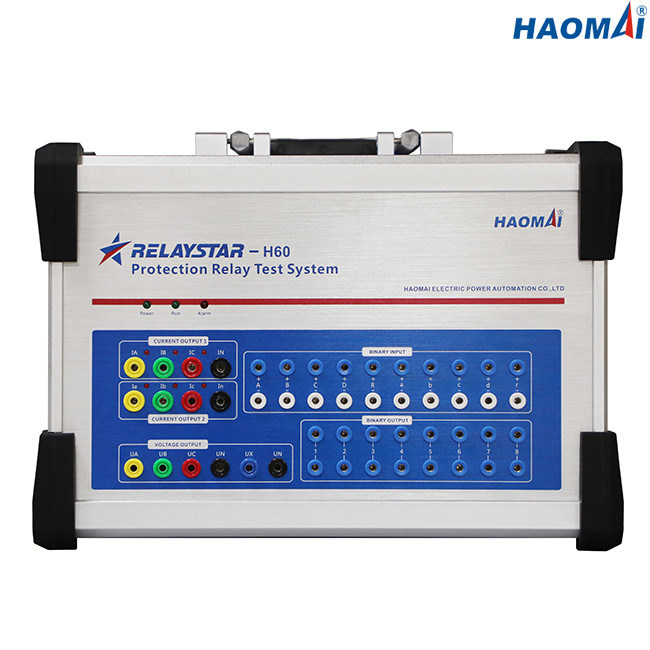

High Voltage Six-phase Secondary Injection Test Set RELAYSTAR-H60 is the portable protection relay test set for testing electro-mechanical, solid-state and microprocessor-based protection relays.
The RELAYSTAR-H60 can output six-phase current and four-phase voltage. Each output channel is independent, and the current and voltage magnitude, phase angle and frequency can be adjusted freely.
The AC output accuracy of RELAYSTAR-H60 is much higher, up to 0.05%.
The RELAYSTAR-H60 can be controlled and operated by the RELAYSTAR software running on a laptop with Windows operating system.
The RELAYSTAR-H60 can be synchronized to perform end-to-end testing with the test sets allocated in different substations through its in-built GPS.
Main Features
1) 6-phase current(6×32A) + 4-phase voltage(4×300V) output
2) Higher output accuracy(≤0.05% for AC output)
3) End to end test via in-built GPS
4) In-built monitoring and recording
5) RIO import & export facility
6) Online Vector display
7) Abundant binary inputs and binary outputs
8) Adjustable AUX DC output 0-300V
9) Powerful RELAYSTAR test software
10) Software upgrade free of charge
Technical Data
Current Generator
| Setting range | 6-phase AC(L-N) | 6x0…32A |
| 3-phase AC(L-N) | 3x0…64A | |
| 1-phase AC(LL-LN) | 1x0…192A | |
| DC(L-N) | 6x0…±15A | |
| Power | 6-phase AC(L-N) | 6x240VA at 32A |
| 3-phase AC(L-N) | 3x400VA at 64A | |
| 1-phase AC(LL-LN) | 1x750VA at 192A | |
| DC(L-N) | 6x240VA at 15A | |
| Accuracy | AC: ±2.5mA(≤0.5A), ≤0.05% (0.5~32A) | |
| DC: ≤0.1% | ||
| Resolution | 1mA | |
Voltage Generator
| Setting range | 4-phase AC(L-N) | 4x0…300V |
| 1-phase AC(L-L) | 1x0…600V | |
| DC(L-N) | 4x0…±300V | |
| Power | 4-phase AC(L-N) | 4x80VA at 300V |
| 1-phase AC(L-L) | 1x160VA at 600V | |
| DC(L-N) | 4x80VA at 300V | |
| Accuracy | AC: ±5mV(≤5V), ≤0.05% (5~300V) | |
| DC: ≤0.1% | ||
| Resolution | 1mV | |

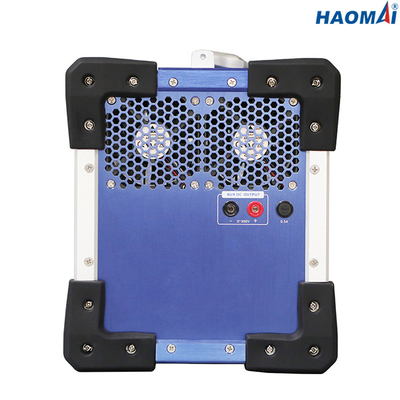

Auxiliary DC Supply
| Voltage range | 0-300V |
| Output accuracy | ≤0.5% |
| Power | max.160VA |
Binary Inputs
| Number | 10 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | “0”:0-6V; “1”:11V-250V |
| Max. measuring time | 999999.999s |
| Time accuracy | ≤0.1ms |
| Time resolution | 0.1ms |
Binary Outputs
| Number | 8 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A, 250VDC/0.2A |

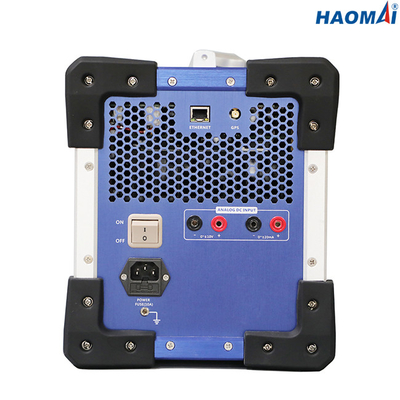

DC Voltage Measuring Input
| Measuring range | 0 ... ±10 V |
| Accuracy | error < 0.02 % rg. typ., < 0.05 % rg. guar. |
DC Current Measuring Input
| Measuring range | 0 ... ±20 mA |
| Accuracy | error < 0.02 % rg. typ., < 0.05 % rg. guar. |
In-built Monitoring and Recording
| Monitoring | 6-phase current and 4-phase voltage outputs |
| Recording | analog outputs |
| Mode | real time monitoring, no external wiring is required |
| Recording length | unlimited (until the internal memory is full) |
General Generators
| Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz),<2mHz(65~450Hz),<5mHz(450~1200Hz) | |
| resolution: 0.001Hz | |
| Phase | range: -360° ~+360° |
| accuracy: 0.1° | |
| resolution: 0. 1° | |
| Harmonic | superposition order: 2~24 times |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | AC220V/230V±10%, 1-phase |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V |
| Connection | standard AC socket (IEC 60320) |
Miscellaneous
| Weight | 14.8kg(32.63 lb) |
| Dimensions (W x H x D, without handle) | 392x272x237mm(15.43x10.71x9.33 in) |
| Connection port | 1 Ethernet port |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
The RELAYSTAR-H60 is Six-phase Secondary Injection Test Set for testing electro-mechanical, solid-state and microprocessor-based protection relays.
