| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015, Type Test Report, Calibration Report |
| Model Number: | RELAYSTAR-1600 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Transport Case + Plywood Case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Protection Relay Test Set, Relay Test Kit, Relay Test System | Current Output: | 6x0…40A |
|---|---|---|---|
| Voltage Output: | 6x0…150V | Output Accuracy: | ≤0.1% For AC Output |
| Max. Output Power: | 1x1000VA At 240A | Operation: | Local Mode + PC Mode |
| High Light: | Dual Operation Secondary Injection Test Kit,40A Secondary Injection Test Kit,150V Secondary Injection Test For Protection Relay |
||

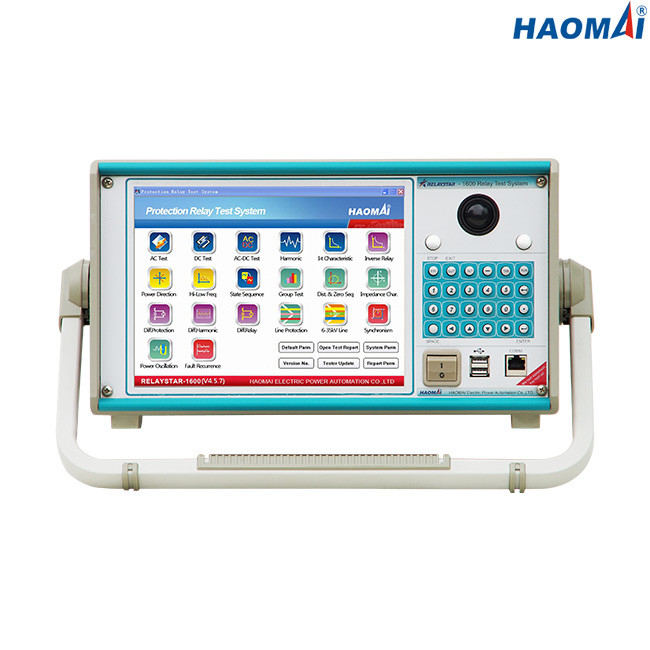

Multifunctional Six-phase Secondary Injection Test Set
Model: RELAYSTAR-1600
The Six-phase Secondary Injection Test Set RELAYSTAR-1600 is multifunctional test set with 6 current output channels (6x0…40A) and 6 voltage output channels (6x0…150V), which has is intended primarily for secondary testing of protection relays. Virtually all types of protection relays can be tested, such as electromechanical, solid-state and microprocessor-based protection relays.
Multifunctional Six-phase Secondary Injection Test Set RELAYSTAR-1600 has the ability to be manually controlled by embedded industrial PC and full color TFT LCD screen, which allows the user to perform manual, steady-state and dynamic testing quickly and easily, as well as using built-in preset test modules for most popular relays.
Multifunctional Six-phase Secondary Injection Test Set RELAYSTAR-1600 can be synchronized to perform end-to-end testing with the test sets allocated in different substations through its in-built GPS.
Main Features
1) 6-phase current(6×40A) + 6-phase voltage(6×150V) outputs
2) Embedded industrial PC with 10.4-inch LCD screen
3) Both local test and PC remote test available
4) High power output 1x1000VA at 240A
5) In-built waveform monitoring and recording
6) Perform end to end test via in-built GPS
7) Aux DC output
8) Full functional RELAYSTAR test software
9) RIO import & export facility
10) Automatic test report creation
Technical Data
Current Generator
| Setting range | 6-phase AC(L-N) | 6x0…40A |
| 3-phase AC(L-N) | 3x0…80A | |
| 1-phase AC(LL-LN) | 1x0…240A | |
| DC(L-N) | 6x0…±20 A | |
| Power | 6-phase AC(L-N) | 6x300VA at 40A |
| 3-phase AC(L-N) | 3x450VA at 80A | |
| 1-phase AC(LL-LN) | 1x1000VA at 240A | |
| DC(L-N) | 6x120VA at 20A | |
| Accuracy | AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A) | |
| DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~20A) | ||
| Resolution | 1mA | |
Voltage Generator
| Setting range | 6-phase AC(L-N) | 6x0…150V |
| 3-phase AC(L-N) | 3x0…300V | |
| DC(L-N) | 6x0…±175V | |
| Power | 6-phase AC(L-N) | 6x80VA at 150V |
| 3-phase AC(L-N) | 3x100VA at 300V | |
| DC(L-N) | 6x80VA at 175V | |
| Accuracy | AC: ±2mV(0.2~2V), ≤0.1% (2~150V) | |
| DC: ±10mV (0.5~5V), ≤0.2% (5~175V) | ||
| Resolution | 1mV | |
Auxiliary DC Supply
| Voltage range | 110V/220V(max.1.5A) |
| Power | max.165VA/330VA |
Binary Inputs
| Number | 10 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | “0”:0～6V; “1”:12V～250V |
| Max. measuring time | 999999.999s |
| Time accuracy | ±1ms |
| Time resolution | 1ms |
Binary Outputs
| Number | 8 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A, 250VDC/0.2A |
In-built Monitoring and Recording
| Monitoring | currents and voltage outputs |
| Recording | analog outputs, binary inputs/outputs status |
| Mode | real time monitoring, no external wiring is required |
| Recording length | unlimited (until the internal memory is full) |
General Generators
| Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz) | |
| resolution: 0.001Hz | |
| Phase | range: -360° ~+360° |
| accuracy: 0.1° | |
| resolution: 0.01° | |
| Harmonic | superposition order: 2~24 times |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | customized (AC 220V/230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 115V |
| Connection | standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight | 18kg(39.68 lb) |
| Dimensions (W x H x D, without handle) | 420×360×210mm(16.54x14.17x8.27 in) |
| Connection port | 2 USB2.0 ports, 1 Ethernet port |
Multifunctional Six-phase Secondary Injection Test Set RELAYSTAR-1600 is the portable and reliable tool for testing protection relays in substations.
