| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015 |
| Model Number: | RELAYSTAR-S60 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Transport Case + Plywood Case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Relay Tester, Relay Test Kit, Relay Test System, Secondary Injection Test Set | Current Output: | 6x0…30A |
|---|---|---|---|
| Voltage Output: | 6x0…150V | Output Accuracy: | ≤0.1% For AC Output |
| Operation: | Local Mode + PC Mode | Weight: | 10.6kg(26.37 Lb) |
| High Light: | Ultraportable Protection Relay Test Set,6Phase Protection Relay Test Set,26.37 Lb Universal Relay Test Set |
||

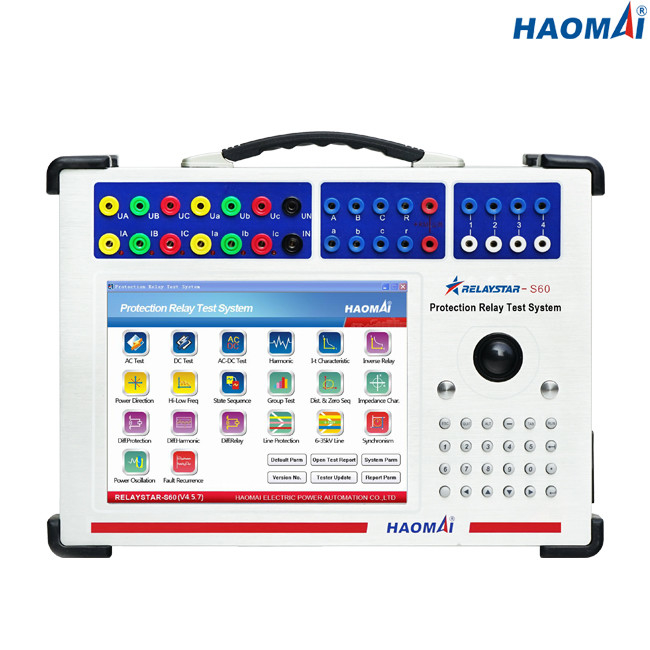

Ultraportable 6-phase Protection Relay Test Set
Model: RELAYSTAR-S60
The RELAYSTAR-S60 is ultraportable protection relay test set that delivers performance verification testing of electromechanical, solid-state and microprocessor-based protective relays in their operating installations.
The RELAYSTAR-S60 is a rugged test set suitable for testing a variety of protective relays operated in both indoor and outdoor environments. The unit’s ergonomic design and intuitive control panel layout make it ideal for first-time users who have little or no training.
Main Features:
1) 6-phase current(6×30A) + 6-phase voltage(6×150V) output
2) Embedded industrial PC with 10.4-inch LCD screen
3) Convenient front-panel display indicates active voltage/current amplitudes and phase values during testing
4) Analog testing of 1A and 5A protection devices
5) Perform state simulation and transient testing
6) COMTRADE viewer and playback
7) Lower weight: only 10.6kg(26.37 lb)
Technical Data
Current Generator
| Setting range | 6-phase AC(L-N) | 6x0…30A |
| 3-phase AC(L-N) | 3x0…60A | |
| 1-phase AC(LL-LN) | 1x0…180A | |
| DC(L-N) | 6x0…±10 A | |
| Power | 6-phase AC(L-N) | 6x200VA at 30A |
| 3-phase AC(L-N) | 3x300VA at 60A | |
| 1-phase AC(LL-LN) | 1x600VA at 180A | |
| DC(L-N) | 6x100VA at 10A | |
| Accuracy | AC: ±1mA(≤0.2A), ≤0.1% (0.2~30A) | |
| DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A) | ||
| Resolution | 1mA | |
Voltage Generator
| Setting range | 6-phase AC(L-N) | 6x0…150V |
| 3-phase AC(L-N) | 3x0…300V | |
| DC(L-N) | 6x0…±160V | |
| Power | 6-phase AC(L-N) | 6x60VA at 150V |
| 3-phase AC(L-N) | 3x100VA at 300V | |
| DC(L-N) | 6x60VA at 160V | |
| Accuracy | AC: ±2mV(0.2~2V), ≤0.1% (2~150V) | |
| DC: ±10mV (0.5~5V), ≤0.2% (5~160V) | ||
| Resolution | 1mV | |
Binary Inputs
| Number | 8 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | “0”:0～6V; “1”:12V～250V |
| Max. measuring time | 999999.999s |
| Time accuracy | ±1ms |
| Time resolution | 1ms |
Binary Outputs
| Number | 4 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A, 250VDC/0.2A |
General Generators
| Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz) | |
| resolution: 0.001Hz | |
| Phase | range: -360° ~+360° |
| accuracy: 0.1° | |
| resolution: 0.01° | |
| Harmonic | superposition order: 2~24 times |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | customized (AC 220V/230V/120V/127V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 115V |
| Connection | standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight | 10.6kg(26.37 lb) |
| Dimensions (W x H x D, without handle) | 350×250×120mm(13.78x9.84x4.72 in) |
| Connection port | 2 USB2.0 ports, 1 Ethernet port |
Safety Standards, Electromagnetic Compatibility
| EMC | The product adheres to the electromagnetic compatibility (EMC) Directive 2004/108/EC(CE conform) |
| IEC 61326-1; IEC 61000-6-4; IEC 61000-3-2/3 | |
| Safety | The product adheres to the low voltage Directive 2006/95/EC(CE conform). |
| IEC 61010-1 |
Ultraportable 6-phase Protection Relay Test Set RELAYSTAR-S60 is an excellent choice for testing and commissioning engineers to perform protection relay testing on site.
Ultraportable 6-phase Protection Relay Test Set RELAYSTAR-S60 is quite convenient to carry for users due to super-small size and much lower weight 10.6kg(26.37 lb).
