Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | MGT-200 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Plywood Case |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Measuring Current Output: | 1A~5A(adjustable) | Measuring Voltage Output: | 0~400V |
---|---|---|---|
Ground Impedance Measurement: | 0.001Ω~5kΩ | Soil Resistivity Measurement: | 0.001Ωm~5kΩm |
Step Voltage Measurement: | 0~400V | Variable Frequency For Anti-interference: | Yes |
High Light: | HAOMAI Ground Resistance Testing Equipment,400V Ground Resistance Testing Equipment,Multifunctional Ground Grid Tester |

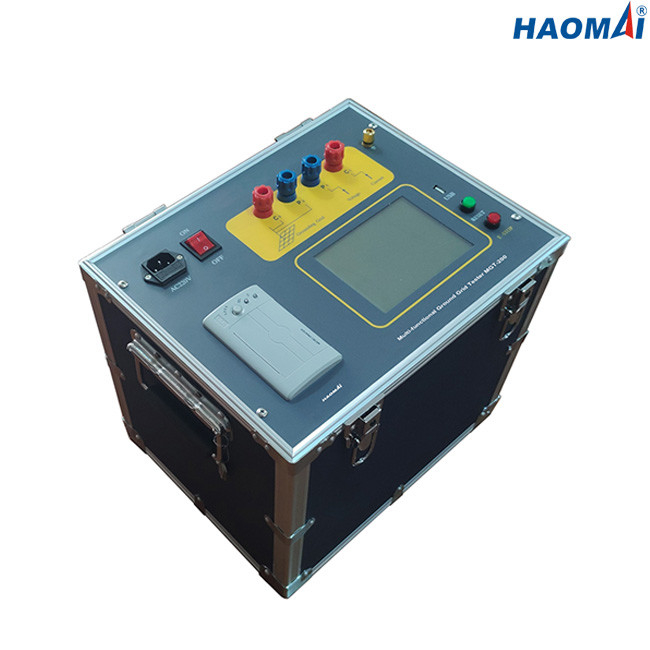

Multifunctional Ground Grid Tester
Model: MGT-200
Multifunctional Ground Grid Tester MGT-200 is multi-functional instrument, which can measure ground impedance, soil resistivity, step voltage and contact potential of the ground grid. It adopts variable frequency power module to solve the problem of accurate measurement under strong electric field interference.
Technical Data
●Output
Measuring current output: 1A~5A(adjustable)
Measuring voltage output: 0~400V
Rated power output: 2000W
●Ground impedance measurement
Measuring range: 0.001Ω~5kΩ
Accuracy: ±(1% reading +0.002)
Resolution: 0.0001
●Impedance angle measurement
Measuring range: 0~360.0°
Accuracy: ±(1% reading +0.02°)
Resolution: 0.0001°
●Soil resistivity measurement
Measuring range: 0.001Ωm~5kΩm
Accuracy: ±1% reading
●Step voltage measurement
Measuring range: 0~400V
Accuracy: ±1% reading
●Variable frequency for anti-interference
Single frequency: 45Hz, 50Hz, 55Hz, 60Hz or 65Hz
Variable frequency: 45Hz/55Hz, 47.5Hz/52.5Hz, 55Hz/65Hz
●Built-in thermal printer for test results printing
●USB interface for downloading test results
●Data storage: 100 test results can be stored into tester
●Power Supply: customized(AC 220V/120V±10%, 1-phase), 50Hz/60Hz
●Miscellaneous
Dimension of host: 370x295mx358mm(14.57x11.61x14.09 in)
Weight of host: 22kg(48.50 lb)
●Environmental Conditions
Storage temperature: -20℃~60℃
Operating temperature: -10℃~50℃
Humidity: <90%
●Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326
Multifunctional Ground Grid Tester MGT-200 is ideal and reliable tool for testing ground grid.
