| Product Name: | Power Quality Analyzer, PQ Analyser, PQ Tester | Number Of Channels: | 4U+4I |
|---|---|---|---|
| True RMS Phase-to Phase Voltage: | 1.0V-2000V | DC Voltage: | 1.0V-1000V |
| True RMS Current: | 10mA-1000A | Frequency: | 40Hz-70Hz |
| High Light: | Handheld Power Quality Analyzer,3Phase Power Quality Analyzer,1000A 3 Phase Power Analyzer |
||

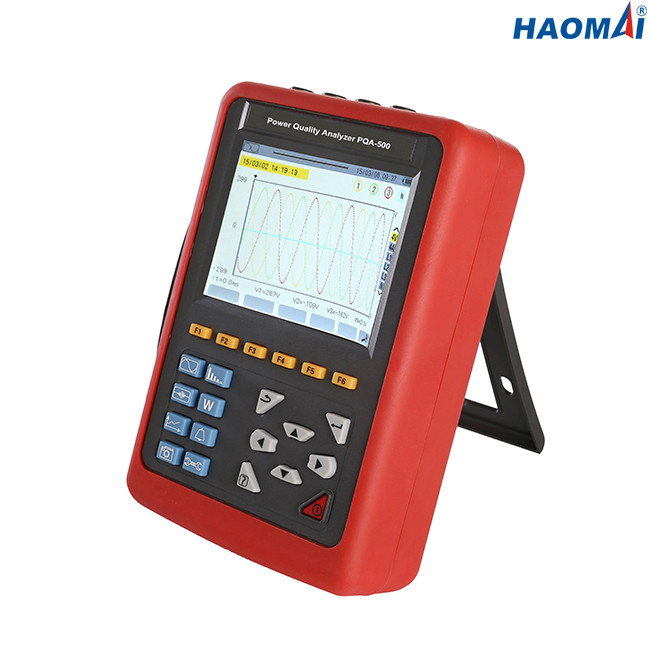

Handheld PQ Analyzer
Model: Model: PQA-500
The Power Quality Analyzer PQA-500 is an advanced handheld 3-phase analyzer. It is a highly intuitive analyzer that has capability to view RMS data, waveforms, demand data, phase angles, harmonics, unbalance, flicker and more in real time.
The Handheld PQ Analyzer PQA-500 has features which make it ideal for troubleshooting, compliance testing and energy audits. Auto CT identification eliminates potential errors due to wrong CT range settings. The analyzer will automatically identify the CT and verify it is connected correctly.
When data needs to be recorded, the built-in flash memory of PQA-500 can simultaneously store 60 sets of screen shots, 150 sets of transient voltage/current capture waveforms, 12800 sets of alarm logs, and the start current detection mode can continuously capture 100s of the start current waveform. The built-in 2G memory card is used to store long-term trend curve records and record 20 electricity parameters at the same time (optional). It can collect and record the trend curve records for up to 300 days once every 1 minute.
Technical Data
| Power supply | Rechargeable lithium-ion battery packs 9.6V, backup charger. |
| Battery indicator | Battery symbol shows dump energy. When the voltage is too low, automatic shutdown after the 1 minute. |
| Power consumption | Current consumption of normal test 490 mA, continuous working for 8 hours. |
| Display mode | LCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm. |
| Size of clamp |
HM-008B small sharp current clamp: 7.5mm×13mm; HM-040B circle current clamp: 35mm×40mm; HM-068B circle current clamp: 68mm×68mm. HM-300F Flexible Coil Current Sensor (with Integrator) : Ф300mm |
| Instrument dimensions | L×W×H: 240mm×170mm×68 mm. |
| Number of channels | 4U/4I |
| Phase-to phase voltage | 1.0V~2000V. |
| Phase-to-neutral voltage | 1.0V~1000V. |
| Current |
HM-008B current clamp: 10mA~10.0A; HM-040B current clamp: 0.10A~100A; HM-068B current clamp: 1.0A~1000A; HM-300F Flexible Coil Current Sensor (with Integrator) : 10A ~ 3000A |
| Frequency | 40Hz~70Hz. |
| Parameters of electricity | W, VA, Var, PF, DPF, cosφ, tanφ. |
| Energy parameters | Wh, Varh, Vah. |
| Harmonic | Order 0~50. |
| Total harmonic distortion | Order 0~50, each phase. |
| Expert mode | Yes |
| Number of Transient records | 150 sets |
| Voltage flicker | Yes |
| Starting current mode | Yes, 100 seconds. |
| 3 phases unbalance | Yes |
| Record | 300 days(simultaneous recording 20 parameters, record one point every 5 seconds). |
| Min/Max recorded value | Measurement of maximum and minimum values over a period of time. |
| Alarm | 40 different types of parameter selections, 12,800 sets alarm logs. |
| Peak | Yes |
| Phasor diagram display | Automatically. |
| Capacity of snapshots | 60 |
| Menu language | English/Chinese |
| Communication | USB. |
| Automatic switching off | When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automatic switching off. |
| In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute. | |
| Backlight function | Yes, suitable for use at night and dark place. |
| Weight | Host: 1.6kg (with battery). |
| HM-008B small sharp current clamp: 170g×4; | |
| HM-040B circle current clamp: 190g×4; | |
| HM-068B circle current clamp: 510g×4; | |
| HM-300F Flexible Coil Current Sensor (with Integrator) : 330g×4; | |
| Test wires and power adapter: 900g; | |
| Total weight: about 9.2kg (with packaging). | |
| Length of voltage test wire | 3m |
| Length of current sensor wire | 2m |
| Working temperature and humidity | -10°C~40°C; below 80%Rh. |
| Storage temperature and humidity | -10°C~60°C; below 70%Rh. |
| Input impedance | Input impedance of test voltage: 1MΩ. |
| Withstand voltage | Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell. |
| Insulation | Between instrument wiring and shell ≥10MΩ. |
| Structure | Double insulation, with insulation vibration-proof sheath. |
| Safely rules | IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2. |
The Handheld PQ Analyzer PQA-500 is suitable for electric power, petrochemical, metallurgy, railway, industrial and mining enterprises, scientific research colleges, measurement departments, etc., especially for all voltage, current, power, electric energy, harmonic, phase and other electricity parameters to do a comprehensive analysis and diagnosis.
