| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015, Type Test Report, Calibration Report |
| Model Number: | RELAYSTAR-806 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Transport Case + Plywood Case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Relay Tester, Relay Test System, Protection Relay Test Set | 3-phase Current Output: | 3×0…40A |
|---|---|---|---|
| 4-phase Voltage Output: | 4×0…150V | AC Output Accuracy: | ≤0.1% |
| Embedded IPC With LCD Screen: | Available | End-to-End Test: | Via Built-in GPS |
| High Light: | ISO9001 3 Phase Relay Test Kit,18kg 3 Phase Relay Test Kit,Ultralight Secondary Injection Tester |
||
Automatic Three-phase Secondary Injection Test Set
Model: RELAYSTAR-806
The RELAYSTAR-806 is a powerful and automatic three-phase secondary injection test set. The locally and PC controlled test kit generates high precision signals using multiple DSP technology. Its powerful current outputs(3x40A) and voltage outputs(4x150V) allow to test any type of protection relays including electromechanical relays.

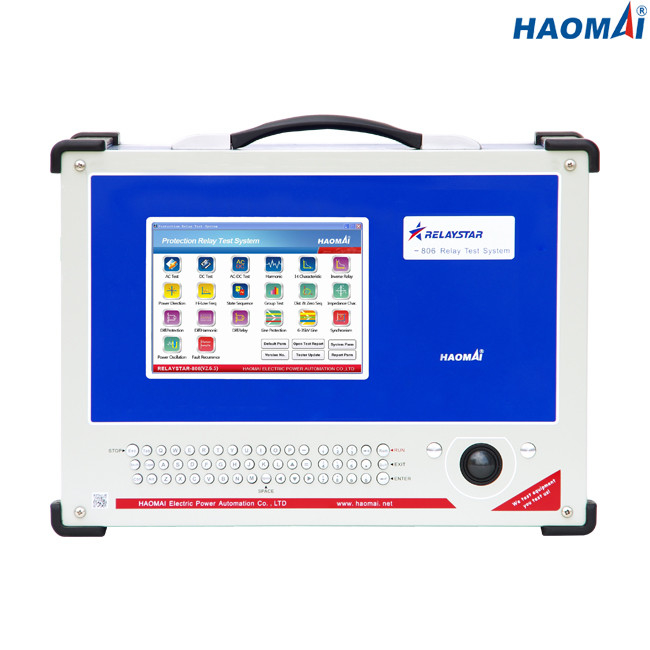

The RELAYSTAR-806 can be operated directly from the front panel by means of a large color graphical display, mouse, keypad and function keys. Test results are automatically saved and then downloaded to the PC via USB port for final storage or printing.
The Ethernet interface allows to control the RELAYSTAR-806 kit by advanced RELAYSTAR test software running on the PC with Windows operating system.
The end-to-end test can be performed by built-in GPS module and external antenna, which allows to synchronize test start of two RELAYSTAR-806 kits.
The protection of RELAYSTAR-806 kit from delivery problems is provided by this robust transport case with handle on the top and wheels on the bottom.
Main Features
1) Local control via embedded industrial PC, keyboard and 8-inch colored display
2) Remote control with the advanced RELAYSTAR test software
3) Simultaneously available: 3 Current and 4 Voltage plus 1 battery simulator outputs
4) Independent adjustment of current / voltage outputs
5) Capable of stepping or ramping the current / voltage
6) High current outputs : 3x40 A, 1x120A
7) Able to perform end-to-end test via built-in GPS module
8) RIO file import & export facility
9) Automatic test report
10) Light and easy to carry
Technical Data
Current Generator
| Setting range | 3-phase AC(L-N) | 3x0…40A |
| 1-phase AC(LL-LN) | 1x0…120A | |
| DC(L-N) | 3x…±10A | |
Power
| 3-phase AC(L-N) | 3x300VA at 40A |
| 1-phase AC(LL-LN) | 1x1000VA at 120A | |
| DC(L-N) | 3x120VA at 10A | |
| Accuracy | AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A) | |
| DC: ±5mA(0~0.5A), ≤0.2% (0.5~10A) | ||
| Resolution | 1mA | |
Voltage Generator
| Setting range | 4-phase AC(L-N) | 4x0…150V |
| 1-phase AC(L-L) | 1x0…300V | |
| DC(L-N) | 3x…±160V | |
| Power | 4-phase AC(L-N) | 4x70VA at 150V |
| 1-phase AC(L-L) | 1x140VA at 300V | |
| DC(L-N) | 3x80VA at 160V | |
| Accuracy | AC: ±2mV(0.2~2V), ≤0.1% (2~150V) | |
| DC: ±10mV (0~5V), ≤0.2% (5~160V) | ||
| Resolution | 1mV | |
Auxiliary DC Supply(Battery Simulator Output)
| Voltage range | 110V/220V(max.1.5A) |
| Power | max.165VA/330VA |
Binary Inputs
| Number | 8 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | “0”:0～6V; “1”:12V～250V |
| Max. measuring time | 999999.999s |
| Time accuracy | ±1ms |
| Time resolution | 1ms |
Binary Outputs
| Number | 4 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A, 250VDC/0.2A |
General Generators
| Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz),<10mHz(65~450Hz),<20mHz(450~1200Hz) | |
| resolution: 0.001Hz | |
| Phase | range: -360° ~+360° |
| accuracy: 0.1° | |
| resolution: 0.01° | |
| Harmonic | superposition order: 2~24 times |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | customized (AC 220V/230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 115V |
| Connection | standard AC socket (IEC 60320) |
Miscellaneous
| Weight | 18kg(39.68 lb) |
| Dimensions (W x H x D, without handle) | 405×300×164mm(15.94x11.81x6.46 in) |
| Connection port | 2 USB2.0 ports, 1 Ethernet port |
Three-phase current generator of Automatic Three-phase Secondary Injection Test Set RELAYSTAR-806 has the features as following:
- Three independent current sources, with a common neutral.
- Type of connection: safety banana sockets.
- For each output, a light turns on when the output is applied.
- Output ranges, and corresponding power and resolution.
- Independent adjustment of current outputs.
- Output frequency: 0 to 1200Hz.
- Output adjustable from zero to the maximum value.
- Possibility of step changing the value of the output.
