| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015, Calibration Report |
| Model Number: | HME-702 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Transport Case + Plywood Case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Relay Test Set, Relay Test Kit, Relay Tester, Secondary Injection Test Set | Current Output: | 3x0…40A |
|---|---|---|---|
| Voltage Output: | 4x0…120V | Output Accuracy: | ≤0.2% For AC Output |
| Max. Output Power: | 1x900VA At 120A | Operation: | Local Mode + PC Mode |
| High Light: | HAOMAI Protection Relay Test Set,3 Phase Protection Relay Test Set,Electromechanical 3 Phase Relay Test Set |
||

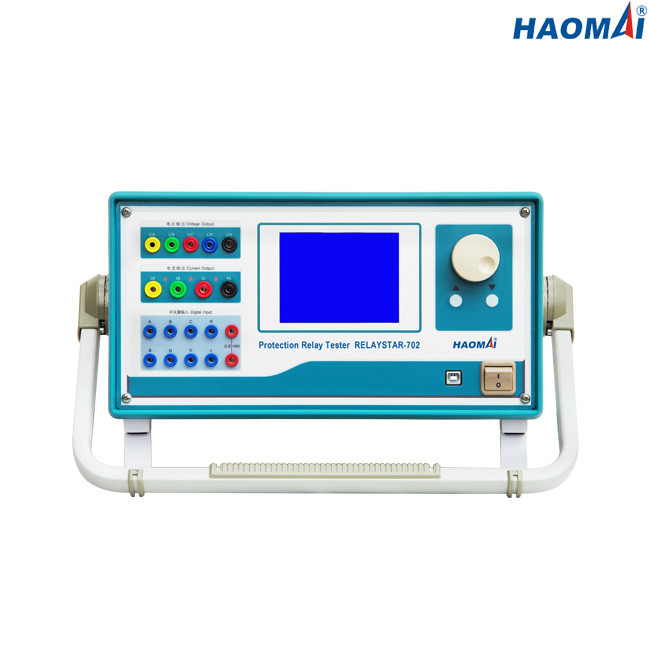

Economical 3-phase Protection Relay Test Set
Model: HME-702
The HME-702 is classic 3-phase protection relay test set, which was launched to the market since 1999. It can be used for testing electro-mechanical, solid-state and microprocessor-based protection relays.
The PC software of HME-702 is designed based on Windows system, easy and convenient for operation and upgrade.
The HME-702 is the most economical choice for relay testing engineers.
Main Features
1) 3-phase current(3×40A) + 4-phase voltage(4×120V) output
2) Both local test and PC remote test available
3) Embedded system with 320×240 LCD screen
4) High performance linear power amplifier
5) 8 binary inputs + 4 binary outputs
6) Independent Aux. DC
7) Powerful software testing function
Technical Data
Current Generator
| Setting range | 3-phase AC(L-N) | 3x0…40A |
| 1-phase AC(LL-LN) | 1x0…120A | |
| DC(L-N) | 3x…±10A | |
| 3-phase AC(L-N) | 3x420VA at 40A | |
| Power | 1-phase AC(LL-LN) | 1x900VA at 120A |
| DC(L-N) | 3x120VA at 10A | |
| Accuracy | AC: ≤0.2% | |
| DC: ≤0.5% | ||
Voltage Generator
| Setting range | 4-phase AC(L-N) | 4x0…120V |
| 1-phase AC(L-L) | 1x0…240V | |
| DC(L-N) | 3x…±160V | |
| Power | 4-phase AC(L-N) | 4x80VA at 120V |
| 1-phase AC(L-L) | 1x100VA at 240V | |
| DC(L-N) | 3x70VA at 160V | |
| Accuracy | AC: ≤0.2% | |
| DC: ≤0.5% | ||
Auxiliary DC Supply
| Voltage range | 110V/220V(max.1.5A) |
| Power | max.165VA/330VA |
Digital Inputs
| Number | 8 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | “0”:0~6V; “1”:11V~250V |
| Max. measuring time | 0.1ms~9999s |
| Time accuracy | 0.1ms |
Digital Outputs
| Number | 4 |
| Type | idle contact |
| Break capacity | 220VAC/0.5A, 220VDC/0.2A |
General Generators
| Frequency | range: 0~1000Hz(PC mode), 20~300Hz(local mode) |
| accuracy:<10mHz(0~450Hz),<20mHz(450~1000Hz) | |
| resolution: 0.01Hz | |
| Phase | range: 0~360° |
| accuracy: 0.2° | |
| resolution: 0.1° | |
| Harmonic | superposition orders: 1~20(PC mode), 1~6(local mode), |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | customized (AC 220V/230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 115V |
| Connection | standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight | 22kg(48.50 lb) |
| Dimensions (W x H x D, without handle) | 400×300×180mm(15.75x11.81x7.09 in) |
| Connection port | for PC connection |
HME-702 is the most cost-effective protection relay test set all over the world, and has reliable performance and low maintenance costs typical advantage. The cumulative sales over 5,000 units from 1999 to now.
