| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015, Type Test Report, Calibration Report |
| Model Number: | RELAYSTAR-7000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Transport Case + Plywood Case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Relay Test Set, Relay Test Kit, Secondary Injection Test Set | Current Output: | 6x0…30A |
|---|---|---|---|
| Voltage Output: | 6x0…150V | Output Accuracy: | ≤0.1% For AC Output |
| IEC 61850 Testing: | Available | Operation: | Local Mode + PC Mode |
| High Light: | 150V Protection Relay Test Kit,Microprocessor Protection Relay Test Kit,Multipurpose Protective Relay Tester |
||
Multipurpose Protection Relay Test Set
Model: RELAYSTAR-7000

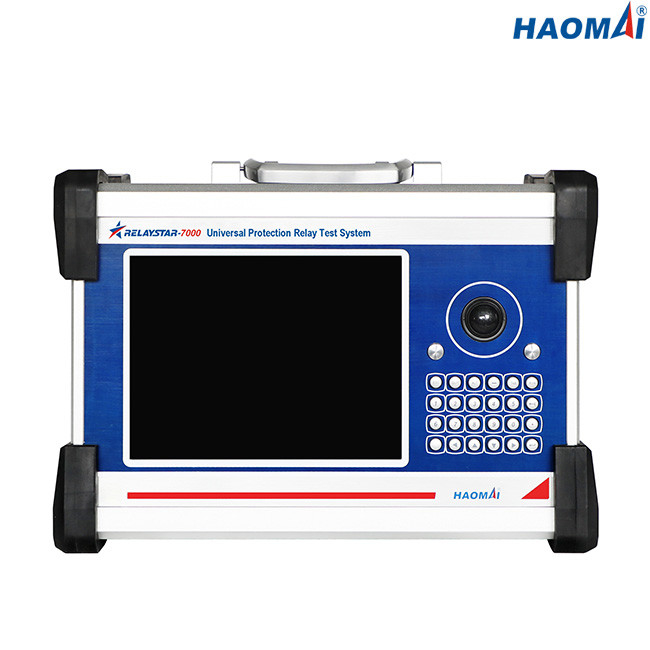

The RELAYSTAR-7000 is a multipurpose and field portable protection relay test set. The unit is operated via the built-in industrial PC with 9.7-inch TFT LCD touch-screen, keypad and mouse, which allows the user to perform manual, steady state and dynamic testing quickly and easily. Tests, and test results, can be saved in local memory and downloaded to a USB memory stick for test data transfer or to print test reports.
For full automatic testing on a PC, each RELAYSTAR-7000 unit comes with an install version of RELAYSTAR software. RELAYSTAR software is designed to run on a PC with Windows 10 operating system.
The RELAYSTAR-7000 is capable of testing electro-mechanical, solid-state and microprocessor-based protective relays, IEC61850 IEDs and merging unit.
Main Features
●Capable of testing electro-mechanical, solid-state and microprocessor-based protective relays, IEC61850 IEDs and merging unit
●Stand-alone operation using intuitive high resolution graphic TFT LCD screen, no PC required to operate
●PC remote test capability
●High current and high power
●In-built waveform monitoring and recording
●Dynamic GPS satellite synchronized end-to-end testing capability
●IEC61850 testing capability
Technical Data
General Current and Voltage Outputs
| Current Generator | Setting range | 6-phase AC(L-N): 6x0…30A |
| DC(L-N): 6x0…±10 A | ||
| Power | 6-phase AC(L-N): 6x450VA at 30A | |
| DC(L-N): 6x120VA at 10A | ||
| Accuracy | AC:±1mA(≤0.2A), ≤0.1% (0.2~30A) | |
| DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A) | ||
| Resolution | 1mA | |
| Voltage Generator | Setting range | 6-phase AC(L-N): 6x0…150V |
| DC(L-N): 6x0…±160V | ||
| Power | 6-phase AC(L-N): 6x80VA at 150V | |
| DC(L-N): 6x80VA at 160V | ||
| Accuracy | AC:±2mV(0.2~2V), ≤0.1% (2~150V) | |
| DC:±10mV (0.5~5V), ≤0.2% (5~160V) | ||
| Resolution | 1mV | |
| General Generators | Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz), <10mHz(65~450Hz),<20mHz(450~1200Hz) | ||
| resolution: 0.001Hz | ||
| Phase | range: -360° ~+360° | |
| accuracy: 0.1° | ||
| resolution: 0.01° | ||
| Harmonic | superposition order: 2~24 times | |
| distortion: ≤0.5% |
Ethernet Communication Interfaces
| Mode | 10/100Base-TX(10/100Mbit,twisted-pair,auto-crossover) |
| Number of port | 2 |
| Type of interface | RJ45 |
| Status indication | LED lights |
Optical Fiber Communication Interfaces
| Mode | 100Base-FX (100Mbit, optical fiber, full duplex) |
| Number of port | 8 |
| Type of interface | LC |
| Fiber type | 62.5/125μm(multi-mode fiber) |
| Wavelength | 1310nm |
| Transmission distance | >1km |
| Status indication | LED lights |
FT3 Interfaces
| Number of port | 9 (8 for transmitting, 1 for receiving) |
| Type of interface | ST |
| Fiber type | 62.5/125μm (multi-mode fiber) |
| Wavelength | 850nm |
Binary Inputs
| Number | 8 |
| Type | potential-free contact or idle contact (automatic identification) |
| Threshold characteristics | “0”: 0～6V; “1”:12V～250V |
Binary Outputs
| Number | 4 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A; 250VDC/0.2A |
In-built Monitoring and Recording
| Monitoring | currents and voltage outputs |
| Recording | analog outputs, binary inputs/outputs status |
| Mode | real time monitoring, no external wiring is required |
| Recording length | unlimited (until the internal memory is full) |
Power Supply
| Nominal input voltage | customized (AC230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 120V |
| Connection | Standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight | 19.5kg(42.99 lb) |
| Dimensions (W x H x D, without handle) | 405×295×250mm(15.94x11.61x9.84 in) |
Safety Standards, Electromagnetic Compatibility
| EMC | The product adheres to the electromagnetic compatibility (EMC) Directive 2004/108/EC(CE conform). |
| The product adheres to the low voltage Directive 2006/95/EC(CE conform). | |
| Safety | IEC 61326-1; IEC 61000-6-4; IEC 61000-3-2/3 |
| IEC 61010-1 |
The RELAYSTAR-7000 is a multipurpose and field portable test set for testing electro-mechanical, solid-state and microprocessor-based protection relays, IEC61850 IEDs and merging unit in power plant, conventional substation or smart substation.
