| Product Name: | IEC 61850 Test Set, Digital Relay Test Kit | Tested Objects: | IEC 61850-based Protection Devices & MU |
|---|---|---|---|
| IEC 61850 Sampled Values Testing: | Available | GOOSE Testing: | Available |
| Four Modes Of Time Synchronization: | Available | Operation: | Local Mode + PC Mode |
| High Light: | HAOMAI IEC 61850 Testing,Multimode IEC 61850 Testing,8.82 Lb Protection Relay Test Equipment |
||

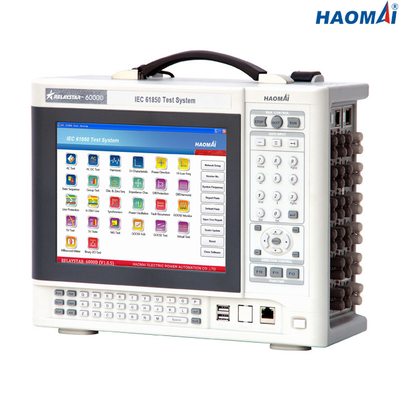

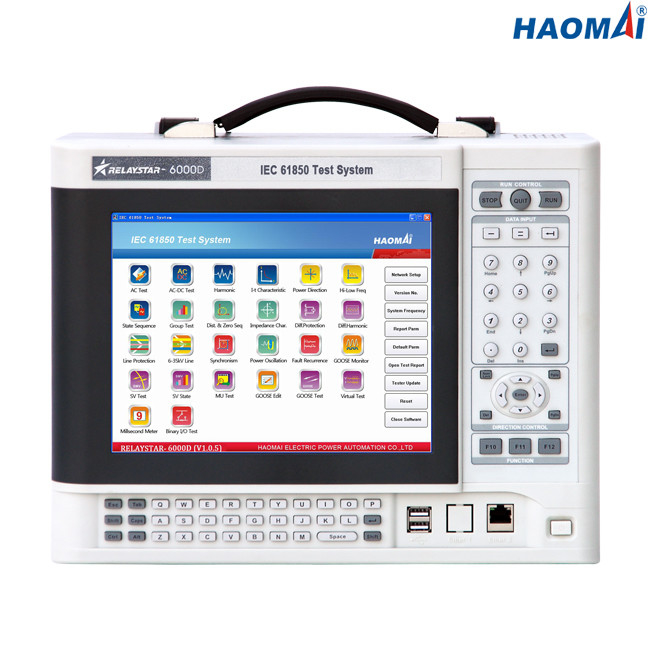

IEC 61850 Test System
Model: RELAYSTAR-6000D
The RELAYSTAR-6000D is new generation test set dedicated to IEC 61850-based protection devices and Merging Unit. It can simulate various types of messages which conforms to IEC 61850-9-1/9-2/9-2LE, GOOSE, IEC 60044-7/8 FT3.
IEC 61850 Test System RELAYSTAR-6000D can either be operated by embedded industrial PC with 9.7-inch touch screen or by test software running on a PC.
The time synchronization modes GPS, IRIG-B code and IEEE1588 are supplied along with RELAYSTAR-6000D, which makes both substation internal debugging and substation to substation joint debugging available.
Main Features
●IEC 61850-based protection devices & MU can be tested
●Embedded industrial PC with 9.7-inch touch screen
●Both local test and PC remote test available
●Able to simulate various types of messages which conforms to IEC 61850-9-1/9-2/9-2LE, GOOSE, IEC 60044-7/8 FT3
●12 low level analog outputs
●Four time synchronization modes: in-built GPS, IRIG-B code, PPS and IEEE1588
●Small size and light weight(only 4kg / 8.82lb)
Technical Data
Ethernet Communication Interfaces
| Mode | 10/100Base-TX(10/100Mbit,twisted-pair,auto-crossover) |
| Number of port | 2 |
| Type of interface | RJ45 |
| Status indication | LED lights |
Optical Fiber Communication Interfaces
| Mode | 100Base-FX (100Mbit, optical fiber, full duplex) |
| Number of port | 16 |
| Type of interface | ST |
| Fiber type | 62.5/125μm(multi-mode fiber) |
| Wavelength | 1310nm |
| Transmission distance | >1km |
| Status indication | LED lights |
FT3 Interfaces
| Number of port | 10 (8 for transmitting, 2 for receiving) |
| Type of interface | ST |
| Fiber type | 62.5/125μm (multi-mode fiber) |
| Wavelength | 850nm |
Low Level Analog Outputs
| Number of outputs | 12 |
| Setting range | AC: 0~7.07Vrms; DC: 0~10V |
| Current at max. burden | 1mA |
| Accuracy | <0.05% |
| Resolution | 250μV |
| Distortion (THD+N) | <0.1% |
| Frequency | Sinusoidal signal: 10~1000Hz |
| Transient signal: DC~10.0kHz | |
| Accuracy: <0.002%(under power frequency, error 1mHz) | |
| Resolution: 0.001Hz | |
| Phase | Range of phase angle: 0 ~359. 9° |
| Accuracy: <0.1°, 50/60Hz | |
| Resolution: ±0.01° |
Binary Inputs
| Number | 10 |
| Type | potential-free contact or idle contact (automatic identification) |
| Threshold characteristics | “0”: 0～6V; “1”:12V～250V |
Binary Outputs
| Number | 4 |
| Type | idle contact(fast contact output optional) |
| Break capacity | 250VAC/0.5A; 250VDC/0.2A |
Power Supply
| Nominal input voltage | customized (AC230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 120V |
| Connection | Standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight | 4kg(8.82 lb) |
| Dimensions (W x H x D, without handle) | 345×135×270mm(13.58x5.31x10.63 in) |
IEC 61850 Protection Relay Test System RELAYSTAR-6000D focuses on the real-time communication methods of GOOSE and Sampled Values to interface with the devices under test.
