| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015, Type Test Report, Calibration Report |
| Model Number: | RELAYSTAR-7000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Transport Case + Plywood Case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Protection Relay Test Set, Relay Test Kit, Relay Test System | Current Output: | 6x0…30A |
|---|---|---|---|
| Voltage Output: | 6x0…150V | Output Accuracy: | ≤0.1% For AC Output |
| IEC 61850 Testing: | Available | Operation: | Local Mode + PC Mode |
| High Light: | ISO9001 IEC 61850 Testing,Multifunctional IEC 61850 Testing,150V Protection Relay Test Kit |
||

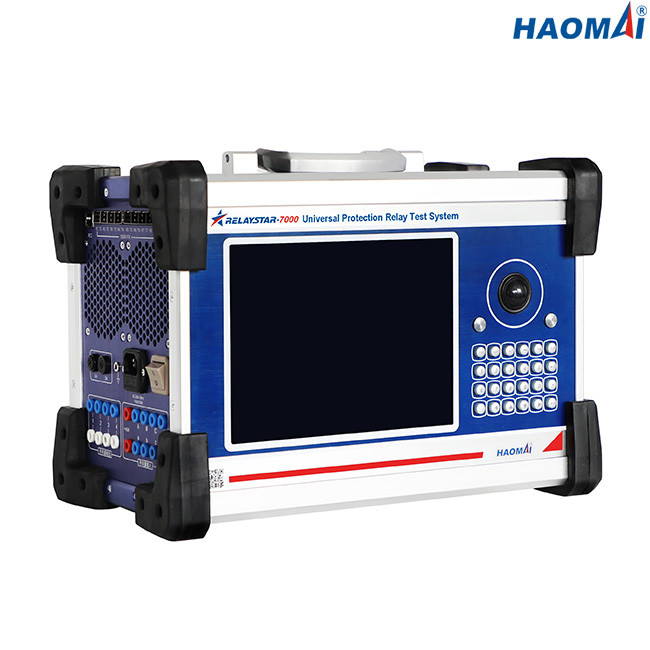

Universal Protection Relay Test System Complying with IEC 61850 Testing
Model: RELAYSTAR-7000
The RELAYSTAR-7000 is multifunctional protection relay test system complying with IEC61850 SV and GOOSE. It can output 6-phase current(6×0…30A) and 6-phase voltage(6×0…150V) to test conventional protection relays, such as old electromechanical type and microprocessor-based type. The RELAYSTAR-7000 can also be as ideal tool for testing relays and substations using the IEC 61850 protocol, which can simulate various types of messages complying with IEC 61850-9-1/9-2/9-2LE, GOOSE, IEC 60044-7/8 FT3.
RELAYSTAR-7000 can be used to perform transient tests. The RELAYSTAR-7000 can perform acceptance or troubleshooting tests by replaying digitally recorded faults in the IEEE- C37.111, COMTRADE standard format.
Main Features
1) Integrated multi-phase protection relay test system
2) Stand-alone operation using intuitive high resolution graphic screen, no PC required to operate
3) Both local test and PC remote test available
4) Digital inputs and outputs
5) In-built waveform monitoring and recording
6) End to end test with GPS or IRIG-B
7) IEC 61850 Testing Capability
Technical Data
General Current and Voltage Outputs
| Current Generator | Setting range | 6-phase AC(L-N): 6x0…30A |
| DC(L-N): 6x0…±10 A | ||
| Power | 6-phase AC(L-N): 6x450VA at 30A | |
| DC(L-N): 6x120VA at 10A | ||
| Accuracy | AC:±1mA(≤0.2A), ≤0.1% (0.2~30A) | |
| DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A) | ||
| Resolution | 1mA | |
| Voltage Generator | Setting range | 6-phase AC(L-N): 6x0…150V |
| DC(L-N): 6x0…±160V | ||
| Power | 6-phase AC(L-N): 6x80VA at 150V | |
| DC(L-N): 6x80VA at 160V | ||
| Accuracy | AC:±2mV(0.2~2V), ≤0.1% (2~150V) | |
| DC:±10mV (0.5~5V), ≤0.2% (5~160V) | ||
| Resolution | 1mV | |
| General Generators | Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz), <10mHz(65~450Hz),<20mHz(450~1200Hz) | ||
| resolution: 0.001Hz | ||
| Phase | range: -360° ~+360° | |
| accuracy: 0.1° | ||
| resolution: 0.01° | ||
| Harmonic | superposition order: 2~24 times | |
| distortion: ≤0.5% |
Ethernet Communication Interfaces
| Mode | 10/100Base-TX(10/100Mbit,twisted-pair,auto-crossover) |
| Number of port | 2 |
| Type of interface | RJ45 |
| Status indication | LED lights |
Optical Fiber Communication Interfaces
| Mode | 100Base-FX (100Mbit, optical fiber, full duplex) |
| Number of port | 8 |
| Type of interface | LC |
| Fiber type | 62.5/125μm(multi-mode fiber) |
| Wavelength | 1310nm |
| Transmission distance | >1km |
| Status indication | LED lights |
FT3 Interfaces
| Number of port | 9 (8 for transmitting, 1 for receiving) |
| Type of interface | ST |
| Fiber type | 62.5/125μm (multi-mode fiber) |
| Wavelength | 850nm |
Binary Inputs
| Number | 8 |
| Type | potential-free contact or idle contact (automatic identification) |
| Threshold characteristics | “0”: 0～6V; “1”:12V～250V |
Binary Outputs
| Number | 4 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A; 250VDC/0.2A |
In-built Monitoring and Recording
| Monitoring | currents and voltage outputs |
| Recording | analog outputs, binary inputs/outputs status |
| Mode | real time monitoring, no external wiring is required |
| Recording length | unlimited (until the internal memory is full) |
Power Supply
| Nominal input voltage | customized (AC230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 120V |
| Connection | Standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight | 19.5kg(42.99 lb) |
| Dimensions (W x H x D, without handle) | 405×295×250mm(15.94x11.61x9.84 in) |
The RELAYSTAR-7000 is multifunctional protection relay test system complying with IEC61850 testing, which not only can test conventional protection relays, but also can simulate various types of messages complying with IEC 61850-9-1/9-2/9-2LE, GOOSE, IEC 60044-7/8 FT3.
