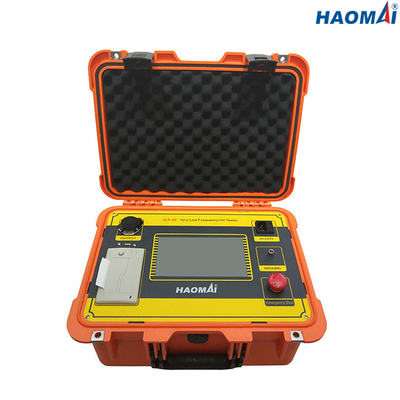

HAOMAI 30kV VLF HV Cable Testing Equipment 0.05Hz AC 220V/120V

HAOMAI 30kV VLF HV Cable Testing Equipment 0.05Hz AC 220V/120V

  • HAOMAI 30kV VLF HV Cable Testing Equipment 0.05Hz AC 220V/120V
  • HAOMAI 30kV VLF HV Cable Testing Equipment 0.05Hz AC 220V/120V
HAOMAI 30kV VLF HV Cable Testing Equipment 0.05Hz AC 220V/120V
Product Details:
Place of Origin: China
Brand Name: HAOMAI
Certification: ISO9001:2015
Model Number: VLF-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation

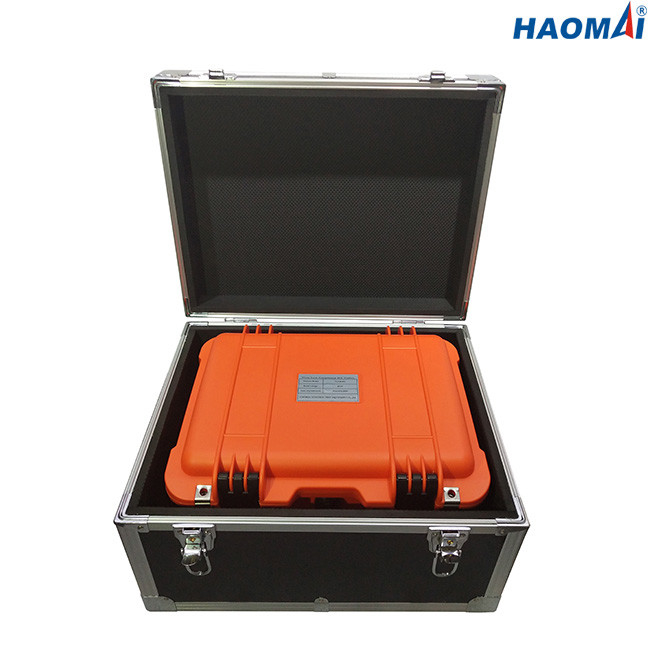

Packaging Details: Transport Case + Plywood Case
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 400 sets per month
Contact Now
Detailed Product Description
Product Name: VLF Tester, VLF Hipot Tester, VLF HV Tester Max. Output Voltage: 30kV(peak Value)
Output Frequency: 0.1Hz, 0.05Hz, 0.02Hz Measurement Accuracy: ≤3%
Voltage Waveform Distortion: ≤ 5% Operation: 7-inch Touch Screen
High Light:

HAOMAI HV Cable Testing Equipment

,

30kV HV Cable Testing Equipment

,

0.05Hz VLF Testing Equipment

30kV VLF HV Tester



Model: VLF-30

VLF stands for Very Low Frequency.

The 30kV VLF HV Tester VLF-30 can output up to 30kV/20mA.

The principal use of VLF HV Tester is testing medium and high voltage shielded power cables. It is especially valuable for verifying a cable after installation or repair. Use the VLF to cause defects to fail during the test, find the fault, make the repair or replacement, and be left with a better cable.

VLF HV Tester is also very useful for testing large rotating machinery (motor/generator), since it provides a portable and affordable method of field testing coils and is specified by the IEEE 433-2009 standard.



Main Features

1) Output frequency: 0.1Hz, 0.05Hz, 0.02Hz

2) Current, voltage and waveform data are directly sampled from the high-voltage side, which ensures accurate data.

3) With overvoltage protection function. When the output exceeds the set voltage limit, the instrument will stop for protection, and the action time is less than 20ms.

4) With overcurrent protection function for high and low voltage double protection. High voltage side can be set according to the precise stop protection value. When the current on low-voltage side exceeds the rated current, it will be stopped for protection, and the operation time is less than 20ms.

5) The high voltage output protection resistor is designed in the booster body, so there is no need to connect another protection resistor outside.

6) The high and low voltage closed loop negative feedback control circuit is adopted, so the output has no capacitance rise effect.

7) Test results can be saved into tester.

8) Test results can be printed via built-in thermal printer.



Technical Data

1) Output rated voltage: 30kV/20mA(peak value)

2) Output frequency: 0.1Hz, 0.05Hz, 0.02Hz

3) Load capacity

0.1Hz, max. 1.1µF

0.05Hz, max. 2.2µF

0.02Hz, max. 5.5µF

4) Measurement accuracy: 3%

5) Voltage positive and negative peak value error: ≤3%

6) Voltage wave form distortion: ≤ 5%

7) Working condition

temperature: -10℃~+40℃

humidity: ≤ 85%RH

8) Power supply: AC220V/120V ±10%, 50/60Hz



30kV VLF HV Tester VLF-30 is ideal test equipment for measuring power cable or rotating machinery(motor/generator) at 0.1Hz, 0.05Hz or 0.02Hz.
