Product Name: | Line Impedance Analyzer, Line Impedance Tester | Max. Output Voltage: | AC300V |
---|---|---|---|
Max. Output Current: | 8A | Impedance Measurement Range: | 0.01~30µF |
Impedance Angle Range: | -180°~ +180° | Operation: | Touch Screen |
High Light: | Multipurpose HV Cable Testing Equipment,8A HV Cable Testing Equipment,55Hz Cable Testing Equipment |

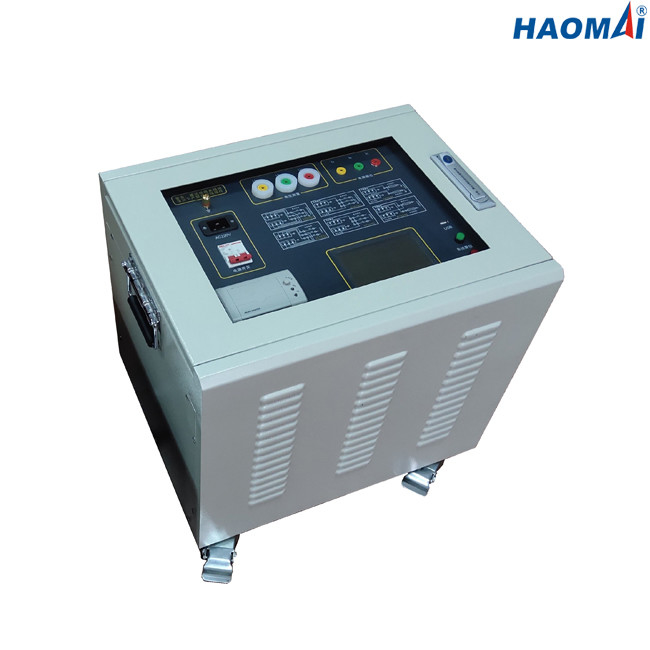

Transmission Line Impedance Analyzer
Model: HLT-300
Transmission Line Impedance Analyzer HLT-300 is a high-precision instrument for testing various high-voltage transmission line parameters in power station, substation or laboratory. The instrument is integrated structure with built-in frequency conversion power module, which can output power by means of frequency conversion voltage regulation. The frequency can be changed to 45Hz or 55Hz. Digital filtering technology is adopted to avoid the interference of power frequency electric field on site, and fundamentally solve the problem of accurate measurement under the interference of strong electric field.
Main Features
●Stand-alone operation using touch screen, no PC required to operate
●Super anti-induction voltage capability
●Adopt frequency conversion technology for accurate measurement
●Able to measure induced voltage and induced current directly
●Able to measure impedance, impedance angle, resistance, reactance and inductance of HV transmission line
●Able to save test results on-board
●Able to print test results directly via built-in thermal printer
●Simple wiring connection
Technical Data
1) Output
●Max. output voltage: AC 300V
Output voltage accuracy: 0.5%
●Max. Current voltage: 8A
Output current accuracy: 0.5%
●Output Frequency: 45Hz, 55Hz
2) Capacitance measurement
Measuring range: 0.01~30µF
Measuring accuracy: ±1% reading ±0.01µF (measured value ≥1µF)
±2% reading ±0.01µF (measured value <1µF)
Resolution: 0.0001µF
3) Impedance Measurement
Measuring range: 0.1~400Ω
Measuring accuracy: ±1% reading ±0.01Ω (measured value ≥1Ω)
±2% reading ±0.01µF (measured value <1Ω)
Resolution: 0.0001Ω
4) Impedance angle
Measuring range: -180°~ +180°
Measuring accuracy: ±0.2°(voltage ≥1.0 V)
±0.3°(voltage 0.2V~1.0V)
Resolution: 0.0001°
5) Anti-interference principle: frequency conversion method
6) Anti-interference current: 80A
7) Anti-interference voltage: 30kV
8) Storage capacity: 200 test results
9) Power supply: AC 220V±10%, 50/60Hz
10) Dimension: 530x 410x 510mm(20.87x16.14x20.08 inch)
11) Weight: 65kg(143.30 lbs)
12) Environmental Conditions
●Storage temperature: -20°C to 70°C (-4°F to +158°F)
●Operating temperature: -20°C to +50°C (-4°F to +122° F)
●Humidity: < 85% RH, non-condensing
13) Safety Qualifications and EMC
●Safety: designed in accordance with IEC61010-1, 2006/95/EC
●EMC: 2004/108/EC
Transmission Line Impedance Analyzer HLT-300 is powerful test set for measuring impedance, impedance angle, resistance, reactance and inductance of HV transmission line.
