Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | HJF-500 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Transport Case + Carton |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | PD Detector, PD Tester | Measurement Principle: | Ultrasonic, TEV, UHF, HFCT |
---|---|---|---|
Tested Objects: | Switchgear, Transformer, GIS And HV Cable | Time Domain Signal Waveform: | Available |
PRPD And PRPS Spectrum: | Available | Operation: | 4-inch Touch Screen |
High Light: | Multifunctional Partial Discharge Detector,TEV Partial Discharge Detector,Non Invasive Partial Discharge Tester |

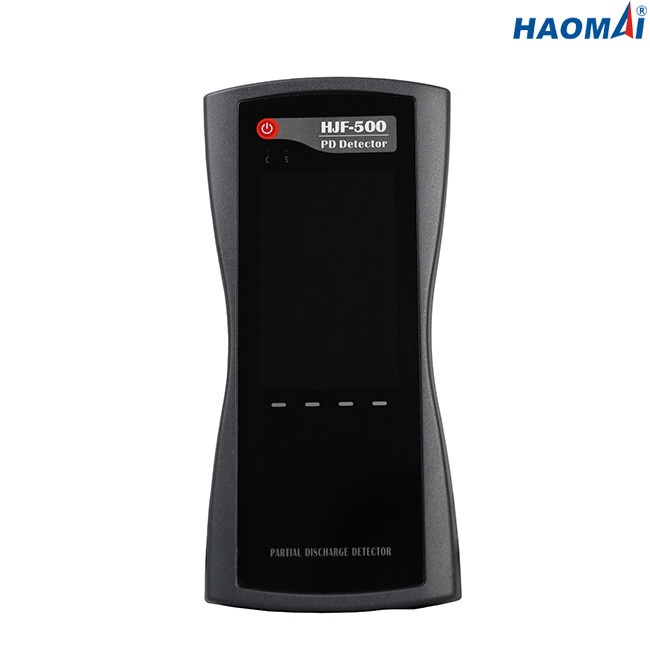

Multifunctional Partial Discharge Detector
Model: HJF-500
The Multifunctional Partial Discharge Detector HJF-500 is the ideal non-invasive tool for quick measuring partial discharge activity in MV and HV substations.
Both MV and HV substations can be monitored using the HJF-500 thanks to the wide variety of sensors which can be connected to it. Typical MV and HV assets that can be diagnosed for partial discharges include Switchgear, Transformer, GIS and HV cable etc.
The high bandwidth together with PRPD(phase resolved partial discharge) pattern display can categories the different types of defect. Corona discharges and surface discharges can be easily distinguished from the dangerous internal partial discharges, which is another advantage of this type of technology.
The HJF-500 unit can be operated via 4-inch touch screen. The built-in lithium battery is adopted for HJF-500 unit, and the operating time is more than 6 hours.
Main Features
●Non-invasive tool for online PD measurement in MV and HV substations
●Able to equip with 5 sensors, including 1 built-in TEV sensor(standard configuration), 1 built-in ultrasonic sensors(standard configuration), 1 external ultrasonic sensor(option configuration), 1 external UHF sensor(option configuration), 1 HFCT sensor(option configuration).
●Combines multiple functions in a single package
●Ultrasonic and TEV sensors for surface and internal PD
●UHF measurement can accurately measure PD activity in high bandwidth
●PD activity in HV cables is measured by using HFCT
●High sampling rate, strong anti-interference ability
●Synchronization with the power frequency for PRPD pattern recognition
●Provide time domain signal waveform, PRPD spectrum, PRPS spectrum etc. discharge patterns to realize the analysis of different discharge types.
●The test results can be stored on board, also can be uploaded to PC for generated test report.
Technical Data
●TEV Measurement
Measuring range: 0-60dBmV
Resolution: 1dB
Accuracy: ±1dB
Maximum pulse per cycle: 1400
Measurement frequency band: 3~100MHz
●UHF Measurement
Detection frequency: 300-2000MHz
Measuring range: 0-60dBmV
Accuracy: <1dBmV
Sensor band: 300-2000MHz
●AA Measurement
Measuring range: -6dBμV~68dBμV
Resolution: 1dB
Accuracy: ±1dB
Sensor center frequency: 40kHz
●AE Measurement
Measuring range: -6dBμV~68dBμV
Resolution: 1dB
Accuracy: ±1dB
Frequency range: 20~200kHz
●HFCT Measurement
Sensor transmission impedance: 5mV/mA
Detection frequency: 1~30MHz
Sensitivity: ≤50pC
●Display: 4.0-inch RGB LCD screen
●Power Supply
Built-in battery: 3.7V/5000Ah lithium battery
Working time: more than 6 hours
Battery charger: AC90-264V or DC 5V
●Environmental Conditions
Operating temperature: -20 ~ 50℃
Humidity: 20-85% relative humidity
●Miscellaneous
Dimensions(handheld host): 210x100x35mm
Weight(handheld host): 0.4kg
Connection port: one USB port for PC connection or charger input, one external sensor port, one 3.5mm stereo headphone jack
Earphone: minimum 8 ohm
SD card: standard 16G
The Multifunctional Partial Discharge Detector HJF-500 is the ideal non-invasive tool for measuring partial discharge activity of Switchgear, Transformer, GIS and HV cable etc. in MV and HV substations.
