Name: HV 5kV Insulation Resistance Testing Equipment 108×65mm LCD Display
Brand: HAOMAI
SKU: HIT-5

Home Products Insulation Resistance Testing Equipment

HV 5kV Insulation Resistance Testing Equipment 108×65mm LCD Display

Product Details:

Place of Origin:	China
Brand Name:	HAOMAI
Certification:	ISO9001:2015
Model Number:	HIT-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Transport Case + Carton
Delivery Time:	5-10 working days
Payment Terms:	T/T
Supply Ability:	400 sets per month

Contact Now

Detailed Product Description

Product Name:	HV Insulation Resistance Tester, Megohm Meter	Max. Voltage:	5kV
Insulation Resistance Range:	0.01MΩ-10TΩ	DC Voltage Range:	0-1000V
AC Voltage Range:	0-750V	DAR And PI Measurement:	Available
High Light:	5kV Insulation Resistance Testing Equipment , 65mm Insulation Resistance Testing Equipment , LCD HV Insulation Resistance Tester

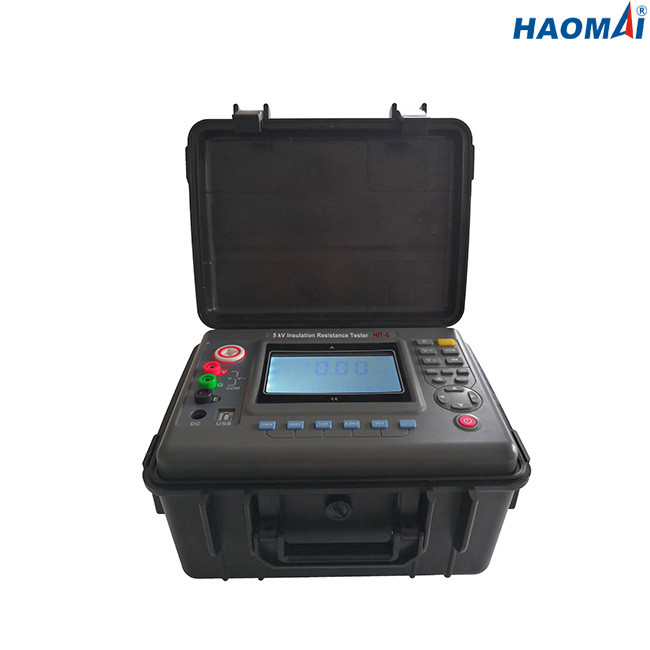

5kV Insulation Resistance Tester

Model: HIT-5

Insulation Resistance Tester(also known as High Voltage DC Insulation Resistance Tester) is used for measuring the resistance of various insulating materials, and insulation resistance of transformers, motors, cables and electrical equipment.

Technical Data

Function	insulation resistance test, voltage test, current test, capacitance test
Base Conditions	23°C±5°C, below 75%RH
Rated Voltage(V)	100V, 250V, 500V, 1kV, 2.5kV, 5kV
Test Voltage(V)	rated voltage x(1±10%)
Insulation Resistance Range	0.01MΩ~10TΩ
Insulation Resistance Resolution	0.01MΩ
DC Voltage Range	0~1000V
DC Voltage Resolution	0.1V
AC Voltage Range	0~750V
AC Voltage resolution	0.1V
Output Short-circuit Current	≥6mA
Dielectric Absorption Ratio(DAR) and Polarization Index(PI) Measurement	available
Power Supply	12V rechargeable battery
Backlight	controllable gray screen backlight, suitable for use in dim places
Display Mode	4-bit large LCD display, gray screen backlight
LCD Display Size	108×65mm
Instrument Size	277.2×227.5×153mm(LxWxH)
USB Interface	for software monitoring and data transmission. The saved data can be uploaded to the computer for save and print.
Communication Line	USB communication line 1PC
Test Line	high voltage rob red 3 meters, high voltage test line black 1.5smeters, green 1.5 meters
Data Storage	500 groups. "FULL" symbol indicates that storage is full.
Data View	data view function: "MR" symbol display
Overflow Display	overflow function(exceed measurement range): “OL ” symbol display
Alarm Function	when the measured value exceeds the set value, an alarm prompt will be given
Power Consumption	standby: max.30mA(backlight off)
	turn on backlight: max.42mA
	measure. max.300mA(backlight off)
Instrument weight	2.72kg(including battery)
Battery voltage	when the battery voltage is low, low battery symbol will display.
Automatic shut-down	automatic shutdown after 15 minutes boot
Insulation Test	≥50MΩ(between measuring line and case)
Withstand Voltage	AC3kV/50Hz, 1min
Working Temperature and Humidity	-10℃~+50℃＜85%RH
Storage Temperature and Humidity	-15℃~+55℃＜90%RH
Safety	IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54) pollution grade 2, CAT Ⅲ 300V

Measuring Range and Accuracy

Measuring Function	Output Voltage	Measuring Range	Accuracy	Resolution
Insulation resistance	100V(±10%)	0MΩ～0.5MΩ	±5%rdg±5dgt	0.001MΩ
		0.5MΩ～5MΩ	±5%rdg±5dgt	0.01MΩ
		5MΩ～50MΩ	±5%rdg±5dgt	0.1MΩ
		50MΩ～500MΩ	±5%rdg±5dgt	1MΩ
		0.5GΩ～5GΩ	±5%rdg±5dgt	0.01GΩ
		5GΩ～50GΩ	±10%rdg±5dgt	0.1GΩ
		50GΩ～500GΩ	±20%rdg±5dgt	1GΩ
	250V(±10%)	0 MΩ～1MΩ	±5%rdg±5dgt	0.001MΩ
		1 MΩ～10MΩ	±5%rdg±5dgt	0.01MΩ
		10 MΩ～100MΩ	±5%rdg±5dgt	0.1MΩ
		100MΩ～1000MΩ	±5%rdg±5dgt	1MΩ
		1GΩ～10GΩ	±5%rdg±5dgt	0.01GΩ
		10GΩ～100GΩ	±10%rdg±5dgt	0.1GΩ
		100GΩ～1000GΩ	±20%rdg±5dgt	1GΩ
	500V(±10%)	0 MΩ～2MΩ	±5%rdg±5dgt	0.001MΩ
		2 MΩ～20MΩ	±5%rdg±5dgt	0.01MΩ
		20 MΩ～200MΩ	±5%rdg±5dgt	0.1MΩ
		200 MΩ～2000MΩ	±5%rdg±5dgt	1MΩ
		2GΩ～20GΩ	±5%rdg±5dgt	0.01GΩ
		20GΩ～200GΩ	±10%rdg±5dgt	0.1GΩ
		200GΩ～2000GΩ	±20%rdg±5dgt	1GΩ
	1kV(±10%)	0 MΩ～5MΩ	±5%rdg±5dgt	0.001MΩ
		5 MΩ～50MΩ	±5%rdg±5dgt	0.01MΩ
		50 MΩ～500MΩ	±5%rdg±5dgt	0.1MΩ
		500 MΩ～5000MΩ	±5%rdg±5dgt	1MΩ
		5GΩ～50GΩ	±10%rdg±5dgt	0.01GΩ
		50GΩ～500GΩ	±15%rdg±5dgt	0.1GΩ
		500GΩ～5000GΩ	±20%rdg±5dgt	1GΩ
	2.5kV(±10%)	0 MΩ～10MΩ	±5%rdg±5dgt	0.01MΩ
		10 MΩ～100MΩ	±5%rdg±5dgt	0.1MΩ
		100 MΩ～1000MΩ	±5%rdg±5dgt	1MΩ
		1 GΩ～10GΩ	±5%rdg±5dgt	0.01GΩ
		10 GΩ～100GΩ	±10%rdg±5dgt	0.1GΩ
		100 GΩ～1000GΩ	±15%rdg±5dgt	1GΩ
		1 TΩ～10TΩ	±20%rdg±10dgt	0.01TΩ
	5kV(±10%)	0 MΩ～20MΩ	±5%rdg±5dgt	0.01MΩ
		20 MΩ～200MΩ	±5%rdg±5dgt	0.1MΩ
		200 MΩ～2000MΩ	±5%rdg±5dgt	1MΩ
		2 GΩ～20GΩ	±5%rdg±5dgt	0.01GΩ
		20 GΩ～200GΩ	±10%rdg±5dgt	0.1GΩ
		200 GΩ～2000GΩ	±15%rdg±5dgt	1GΩ
		2 TΩ～10TΩ	±25%rdg±10dgt	0.01TΩ

Voltage Range & Accuracy

Test Function	Measure Range	Accuracy	Resolution
DC Voltage	DC 0.0V~1000V	±1.5%rdg±3dgt	0.1V
AC Voltage	AC 0.0V~750V	±1.5%rdg±3dgt	0.1V

Current Range & Accuracy

Measuring Function	Measuring Range	Accuracy	Resolution
DC current	1mA-6mA	±10%rdg±5dgt	0.01mA
	100uA-1000uA	±10%rdg±5dgt	1uA
	10uA-100uA	±10%rdg±5dgt	0.1uA
	1uA-10uA	±10%rdg±5dgt	0.01uA
	100nA-1000nA	±10%rdg±5dgt	1nA
	10nA-100nA	±20%rdg±5dgt	0.1nA
	1nA-10nA	±20%rdg±5dgt	0.01nA
	100pA-1000pA	±30%rdg±5dgt	1pA

Capacitance Range & Accuracy

Measuring Function	Measuring Range	Accuracy	Resolution
capacitance	10uf-50uf	±15%rdg±5dgt	0.01uf
	1uf-10uf	±15%rdg±5dgt	0.1uf
	100nf-10nf	±15%rdg±5dgt	0.01nf
	10nf-100nf	±15%rdg±5dgt	0.01nf
