| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015 |
| Model Number: | HIT-5H |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | HV Insulation Resistance Tester, Megohm Meter | Max. Voltage: | 5kV |
|---|---|---|---|
| Insulation Resistance Range: | 0.01MΩ-5TΩ | DC Voltage Range: | 0.01V-1000V |
| AC Voltage Range: | 0.01V-750V | DAR And PI Measurement: | Available |
| High Light: | Anti Interference Insulation Resistance Test Instrument,5kv Insulation Resistance Test Instrument,Handheld 5kv Insulation Tester |
||

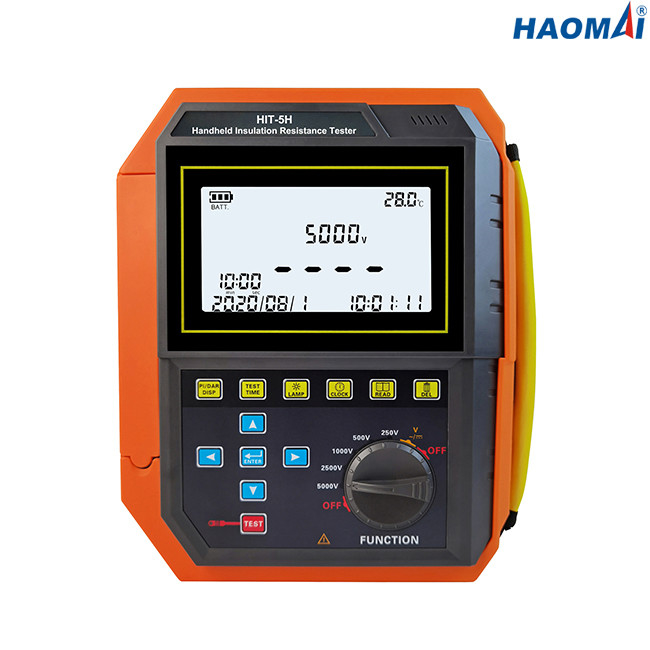

Handheld Insulation Resistance Tester
Model: HIT-5H
Insulation Resistance Tester(also known as High Voltage DC Insulation Resistance Tester, Megohm Meter) is used for measuring the resistance of various insulating materials, and insulation resistance of transformers, motors, cables and electrical equipment.
Handheld Insulation Resistance Tester HIT-5H consists of medium and large scale integrated circuit, including high precision micro current measurement system, digital voltage boost system, automatic discharge circuit. Only need to use a high voltage line and a signal line to connect the measured object can be measured.
The rated output test voltage range of Handheld Insulation Resistance Tester HIT-5H is from 250V to 5000V, and the insulation resistance measurement range is from 0.01MΩ to 5.00TΩ.
Main Features
1)Handheld tester for measuring insulation resistance
2)AC and DC voltage test available
3)PI and DAR measurement available
4)Test voltage: 250V, 500V, 1000V, 2500V, 5000V
5)Insulation resistance measurement range: 0.01MΩ to 5.00TΩ
6)Test time: 1min~30min(regarding method of test,settable)
7)Simple wiring connection
Technical Data
General Specifications
| Function | Insulation resistance, polarization index(PI), dielectric absorption ratio(DAR), AC and DC voltage test; automatic discharge function; environmental temperature test; clock function |
| Power | DC 14.8V 2200mAh rechargeable lithium battery, full battery volt approx. 16.8V |
| Test Voltage | Range:250V, 500V, 1000V, 2500V, 5000V |
| Short Circuit Current | ≥5mA(≥10mA,≥3.5mA,≥1.5mA option) |
| Wiring Connection Method | L port: “L" called high voltage output port,It is called the end of the line and leads to one end of the measured object |
| G port: "G" called shield end, used to measure the insulation resistance of insulating materials or cables by three electrode method. It is connected to the end of electrode protection ring. | |
| E port: "E" called ground earth end,Connect to the ground and zero terminals of the measured object. For example, motor shell metal, transformer core, cable shield. | |
| V port: AC/DC voltage measuring terminal(AC/DC automatic identification) | |
| Resolution | Insulation Resistance: 0.01MΩ |
| AC Voltage:0.01V | |
| DC Voltage:0.01V | |
| Test Time | 1min~30min(regarding method of test,settable) |
| Backlight | Controllable white screen backlight, suitable for dark field |
| Shift | Automatic shift |
| LCD | 4-digit LCD display, white screen backlight |
| LCD Size | 128mm×75mm |
| LCD Display Field | 124mm×67mm |
| Test Indicator | In the measurement, the LED flashes and the progress bar chart indicates |
| Charging Indicator | When charging, the indicator light on the charger is red and green after full charge |
| Dimensions | 258mm×215mm×83mm(LxWxH) |
| Standard Test Line | One red high voltage test rod, one green and one black test line |
| Battery Voltage | Display the remaining power of the battery. When the battery is low, please charge it in time |
| Communication Port | With USB interface, storage data can be uploaded to the computer, save printing |
| Communication Line | 1pc USB line, length 1.5m |
| Working Current | Standby: 25mA Max(backlight off)；backlight: 25mA Max(only backlight on)；working: 450mA Max(backlight off) |
| Weight | Instrument weight:2.19kg(including battery) |
| Total weight:3.50kg(including package) | |
| Tool back | Yellow-Black double color toolkit, carry conveniently, good looking toolkit |
| Working Temperature/ Humidity | -10℃～40℃, 80%RH below |
| Storage Temperature/ Humidity | -20℃～60℃, 70%RH below |
| Withstand voltage | AC 3700V/rms(between the front and rear ends of the shell ) |
| Insulation Resistance | 20MΩ above(between bottom metal screw and top end 500V) |
| Electromagnetic Characteristic | IEC61326(EMC) |
| Output Voltage | Test Range | Accuracy |
| 250V(15%) DC | 0.01MΩ~2.50GΩ | ±3%rdg±5dgt |
| 2.50GΩ~250 GΩ | ±15%rdg±5dgt | |
| 500V(10%) DC | 0.01MΩ~5.00GΩ | ±3%rdg±5dgt |
| 5.00GΩ~500 GΩ | ±15%rdg±5dgt | |
| 1000V(10%) DC | 0.01MΩ~10.00GΩ | ±3%rdg±5dgt |
| 10.00GΩ~1.00 TΩ | ±15%rdg±5dgt | |
| 2500V(10%) DC | 0.01MΩ~25.0GΩ | ±3%rdg±5dgt |
| 25.0GΩ~2.50 TΩ | ±15%rdg±5dgt | |
| 5000V(10%) DC | 0.01MΩ~50.0GΩ | ±3%rdg±5dgt |
| 50.0GΩ~5.00 TΩ | ±15%rdg±5dgt |
AC and DC Voltage Measurement Range and Accuracy
| Test Function | Measure Range | Accuracy | Resolution |
| DC Voltage | 0.01V~1000V | ±2%rdg±3dgt | 0.1V |
| AC Voltage | 0.01V~750V | ±2%rdg±3dgt | 0.1V |
Insulation Resistance Tester HIT-5H is handheld instrument for measuring insulation resistance of various insulating materials and electrical equipment.
