| Product Name: | HV Insulation Resistance Tester, Megohm Meter | Max. Voltage: | 15kV |
|---|---|---|---|
| Insulation Resistance Range: | 0.01MΩ-50TΩ | DC Voltage Range: | 0-1000V |
| AC Voltage Range: | 0-750V | DAR And PI Measurement: | Available |
| High Light: | 15kV Insulation Resistance Testing Equipment,Moistureproof Insulation Resistance Testing Equipment,50T Ohm High Voltage Insulation Tester |
||

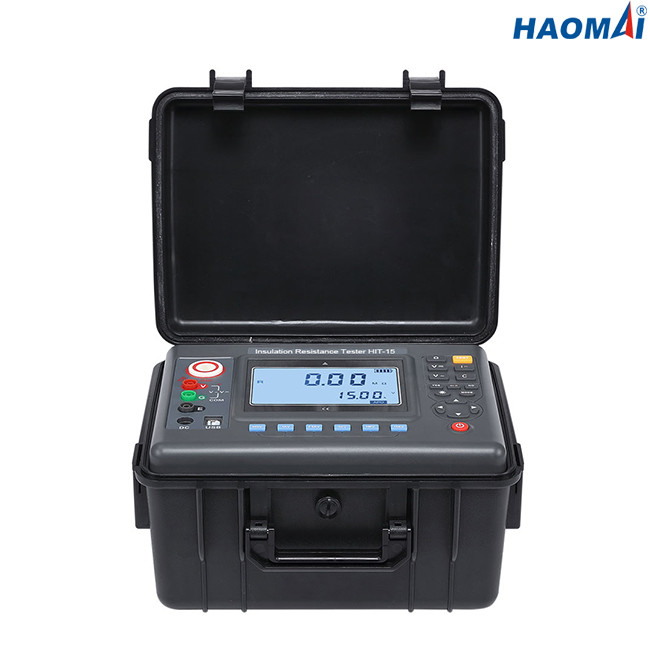

15kV Insulation Resistance Tester
Model: HIT-15
15kV Insulation Resistance Tester is suitable for measuring the resistance of various insulating materials, and insulation resistance of transformers, motors, cables and electrical equipment.
Technical Data
| Function | insulation resistance test, voltage test |
| Base Conditions | 23°C±5°C, below 75%RH |
| Rated Voltage(V) | 500V, 1kV, 2.5kV, 5kV,10kV,15kV |
| Test Voltage(V) | rated voltage x(1±10%) |
| Insulation Resistance Range | 0.01MΩ~50TΩ |
| Insulation Resistance Resolution | 0.01MΩ |
| DC Voltage Range | 0~1000V |
| DC Voltage Resolution | 0.1V |
| AC Voltage Range | 0~750V |
| AC Voltage resolution | 0.1V |
| Output Short-circuit Current | ≥6mA |
| Dielectric Absorption Ratio and Polarization Index Measurement | available |
| Power Supply | 12V rechargeable battery |
| Backlight | controllable gray screen backlight, suitable for use in dim places |
| Display Mode | 4-bit large LCD display, gray screen backlight |
| LCD Display Size | 108×65mm |
| Instrument Size | 277.2×227.5×153mm(LxWxH) |
| USB Interface | for software monitoring and data transmission. The saved data can be uploaded to the computer for save and print. |

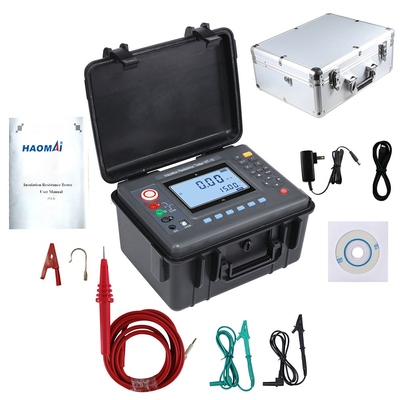

| Communication Line | USB communication line 1PC |
| Test Line | high voltage rob red 3 meters, high voltage test line black 1.5smeters, green 1.5 meters |
| Data Storage | 500 groups. "FULL" symbol indicates that storage is full. |
| Data View | data view function: "MR" symbol display |
| Overflow Display | overflow function(exceed measurement range): “OL ” symbol display |
| Alarm Function | when the measured value exceeds the set value, an alarm prompt will be given |
| Power Consumption | standby: max.30mA(backlight off) |
| turn on backlight: max.42mA | |
| measure. max.300mA(backlight off) | |
| Instrument weight | 2.75kg(including battery) |
| Battery voltage | when the battery voltage is low, low battery symbol will display. |
| Automatic shut-down | automatic shutdown after 15 minutes boot |
| Insulation Test | ≥50MΩ(between measuring line and case) |
| Withstand Voltage | AC3kV/50Hz, 1min |
| Working Temperature and Humidity | -10℃~+50℃＜85%RH |
| Storage Temperature and Humidity | -15℃~+55℃＜90%RH |
| Safety | IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54) pollution grade 2, CAT Ⅲ 300V |
Measuring Range and Accuracy
| Measuring function | Output voltage | Measuring range | accuracy | resolution |
| Insulation Resistance | 500V(±10%) | 0 MΩ～2MΩ | ±5%rdg±5dgt | 0.001MΩ |
| 2 MΩ～20MΩ | ±5%rdg±5dgt | 0.01MΩ | ||
| 20 MΩ～200MΩ | ±5%rdg±5dgt | 0.1MΩ | ||
| 200 MΩ～2000MΩ | ±5%rdg±5dgt | 1MΩ | ||
| 2GΩ～20GΩ | ±5%rdg±5dgt | 0.01GΩ | ||
| 20GΩ～200GΩ | ±10%rdg±5dgt | 0.1GΩ | ||
| 200GΩ～2000GΩ | ±20%rdg±5dgt | 1GΩ | ||
| 1kV(±10%) | 0 MΩ～5MΩ | ±5%rdg±5dgt | 0.001MΩ | |
| 5 MΩ～50MΩ | ±5%rdg±5dgt | 0.01MΩ | ||
| 50 MΩ～500MΩ | ±5%rdg±5dgt | 0.1MΩ | ||
| 500 MΩ～5000MΩ | ±5%rdg±5dgt | 1MΩ | ||
| 5GΩ～50GΩ | ±10%rdg±5dgt | 0.01GΩ | ||
| 50GΩ～500GΩ | ±15%rdg±5dgt | 0.1GΩ | ||
| 500GΩ～5000GΩ | ±20%rdg±5dgt | 1GΩ | ||
| 2.5kV(±10%) | 0 MΩ～10MΩ | ±5%rdg±5dgt | 0.01MΩ | |
| 10 MΩ～100MΩ | ±5%rdg±5dgt | 0.1MΩ | ||
| 100 MΩ～1000MΩ | ±5%rdg±5dgt | 1MΩ | ||
| 1 GΩ～10GΩ | ±5%rdg±5dgt | 0.01GΩ | ||
| 10 GΩ～100GΩ | ±10%rdg±5dgt | 0.1GΩ | ||
| 100 GΩ～1000GΩ | ±15%rdg±5dgt | 1GΩ | ||
| 1 TΩ～10TΩ | ±20%rdg±10dgt | 0.01TΩ | ||
| 5kV(±10%) | 0 MΩ～20MΩ | ±5%rdg±5dgt | 0.01MΩ | |
| 20 MΩ～200MΩ | ±5%rdg±5dgt | 0.1MΩ | ||
| 200 MΩ～2000MΩ | ±5%rdg±5dgt | 1MΩ | ||
| 2 GΩ～20GΩ | ±5%rdg±5dgt | 0.01GΩ | ||
| 20 GΩ～200GΩ | ±10%rdg±5dgt | 0.1GΩ | ||
| 200 GΩ～2000GΩ | ±15%rdg±5dgt | 1GΩ | ||
| 2 TΩ～10TΩ | ±25%rdg±10dgt | 0.01TΩ | ||
| 10KV(±10%) | 0 MΩ～50MΩ | ±5%rdg±5dgt | 0.01MΩ | |
| 50 MΩ～500MΩ | ±5%rdg±5dgt | 0.1MΩ | ||
| 500 MΩ～5000MΩ | ±5%rdg±5dgt | 1MΩ | ||
| 5 GΩ～50GΩ | ±5%rdg±5dgt | 0.01GΩ | ||
| 50 GΩ～500GΩ | ±10%rdg±5dgt | 0.1GΩ | ||
| 500 GΩ～5000GΩ | ±20%rdg±5dgt | 1GΩ | ||
| 5TΩ～35TΩ | ±35%rdg±10dgt | 0.01TΩ | ||
| 15kV(±10%) | 0 MΩ～60MΩ | ±5%rdg±5dgt | 0.01MΩ | |
| 60 MΩ～600MΩ | ±5%rdg±5dgt | 0.1MΩ | ||
| 600 MΩ～6000MΩ | ±5%rdg±5dgt | 1MΩ | ||
| 6 GΩ～60GΩ | ±5%rdg±5dgt | 0.01GΩ | ||
| 60 GΩ～600GΩ | ±10%rdg±5dgt | 0.1GΩ | ||
| 600 GΩ～6000GΩ | ±20%rdg±5dgt | 1GΩ | ||
| 6 TΩ～50TΩ | ±35%rdg±10dgt | 0.01TΩ |
Voltage Range & Accuracy
| Test Function | Measure Range | Accuracy | Resolution |
| DC Voltage | DC 0.0V~1000V | ±1.5%rdg±3dgt | 0.1V |
| AC Voltage | AC 0.0V~750V | ±1.5%rdg±3dgt | 0.1V |
Current Range & Accuracy
| Measuring function | Measuring range | accuracy | resolution |
DC current | 1mA-6mA | ±10%rdg±5dgt | 0.01mA |
| 100uA-1000uA | ±10%rdg±5dgt | 1uA | |
| 10uA-100uA | ±10%rdg±5dgt | 0.1uA | |
| 1uA-10uA | ±10%rdg±5dgt | 0.01uA | |
| 100nA-1000nA | ±10%rdg±5dgt | 1nA | |
| 10nA-100nA | ±20%rdg±5dgt | 0.1nA | |
| 1nA-10nA | ±20%rdg±5dgt | 0.01nA | |
| 100pA-1000pA | ±30%rdg±5dgt | 1pA |
Capacitance Range & Accuracy
| Measuring function | Measuring range | accuracy | resolution |
| capacitance | 10uf-50uf | ±15%rdg±5dgt | 0.01uf |
| 1uf-10uf | ±15%rdg±5dgt | 0.1uf | |
| 100nf-10nf | ±15%rdg±5dgt | 0.01nf | |
| 10nf-100nf | ±15%rdg±5dgt | 0.01nf |
