Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015, Calibration Report |
Model Number: | HME-1200 |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Transport Case + Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Protection Relay Test Set, Relay Test Kit, Secondary Injection Test Set | Current Output: | 6x0…30A |
---|---|---|---|
Voltage Output: | 6x0…120V | Output Accuracy: | ≤0.2% For AC Output |
Auxiliary DC Supply: | 110V/220V(max.1.5A) | Operation: | Local Mode + PC Mode |
High Light: | 20.3kg Secondary Injection Test Kit,6x30A Secondary Injection Test Kit,Multifunctional Protective Relay Tester |

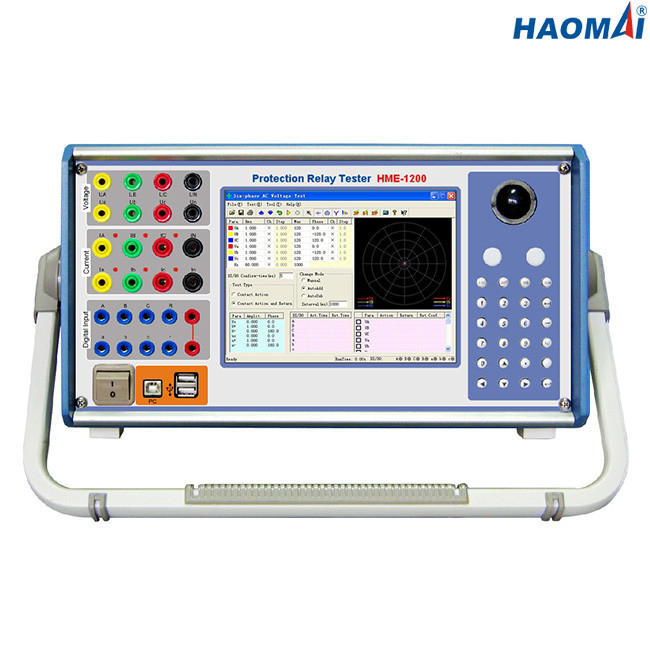

Economical Six-phase Relay Test System
Model: HME-1200
The HME-1200 is economical six-phase protection relay test system, which can output 6-phase current(6×0…30A) & 6-phase voltage(6×0..120V) for testing conventional protection relays.
The embedded industrial PC with 8-inch LCD screen, keyboard and trackball mouse are adopted to make HME-1200 run without a PC. It is also can be operated via PC software running on a laptop with Windows operating system.
Main Features
● Most cost-effective 6-phase relay test system
● 6-phase current(6×0…30A) + 6-phase voltage(6×0…120V) output
● Embedded industrial PC with 8-inch LCD screen
● Both local test and PC remote test available
● Adopt high fidelity and high reliability linear amplifier
● Abundant test modules for testing various protection relays
Technical Data
Current Generator
Setting range | 6-phase AC(L-N) | 6x0…30A |
3-phase AC(L-N) | 3x0…60A | |
1-phase AC(LL-LN) | 1x0…180A | |
DC(L-N) | 6x0…±10 A | |
Power | 6-phase AC(L-N) | 6x300VA at 30A |
3-phase AC(L-N) | 3x450VA at 60A | |
1-phase AC(LL-LN) | 1x1000VA at 180A | |
DC(L-N) | 6x70VA at 10A | |
Accuracy | AC: ≤0.2% | |
DC: ≤0.5% | ||
Resolution | 1mA |
Voltage Generator
Setting range | 6-phase AC(L-N) | 6x0…120V |
3-phase AC(L-N) | 3x0…240V | |
DC(L-N) | 6x0…±160V | |
Power | 6-phase AC(L-N) | 6x80VA at 120V |
3-phase AC(L-N) | 3x100VA at 240V | |
DC(L-N) | 6x70VA at 160V | |
Accuracy | AC: ≤0.2% | |
DC: ≤0.5% | ||
Resolution | 1mV |
Auxiliary DC Supply
Voltage range | 110V/220V(max.1.5A) |
Power | max.165VA/330VA |
Digital Inputs
Number | 8 |
Input characteristics | idle contact or potential-free contact |
Threshold characteristics | “0”:0~6V; “1”:12V~250V |
Max. measuring time | 999999.999s |
Time accuracy | ±1ms |
Time resolution | 1ms |
Digital Outputs
Number | 8 |
Type | idle contact |
Break capacity | 250VAC/0.5A, 250VDC/0.2A |
General Generators
Frequency | range: 0~1000Hz |
accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1000Hz) | |
resolution: 0.01Hz | |
Phase | range: -360° ~+360° |
accuracy: 0.1° | |
resolution: 0.1° | |
Harmonic | superposition order: 2~20 times |
distortion: ≤0.5% |
Power Supply
Nominal input voltage | AC220V/230V±10%, 1-phase |
Nominal frequency | 50/60 Hz |
Rated current | 10A at 230V |
Connection | standard AC socket (IEC 60320) |
Miscellaneous
Weight | 20.3kg(44.75 lb) |
Dimensions (W x H x D, without handle) | 470×550×280mm(18.50x21.65x11.02 in) |
Connection port | 2 USB ports, 1 serial port |
The HME-1200 is the economical six-phase protection relay test system for testing conventional protection relays. The test results can be saved on board, and the operator can use USB flash disk to copy the saved test results. Or the operator can connect HME-1200 kit to a laptop with Windows operating system, then use laptop to control HME-1200 kit and complete all tests, and the test results can be saved into laptop directly.
