| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015, Type Test Report, Calibration Report |
| Model Number: | RELAYSTAR-1600 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Transport Case + Plywood Case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Relay Test Set, Relay Test Kit, Secondary Injection Test Set | Current Output: | 6x0…40A |
|---|---|---|---|
| Voltage Output: | 6x0…150V | Output Accuracy: | ≤0.1% For AC Output |
| Operation: | Local Mode + PC Mode | ||
| High Light: | Multipurpose Protection Relay Tester,1000VA Protection Relay Tester,Microprocessor Relay Test Set |
||

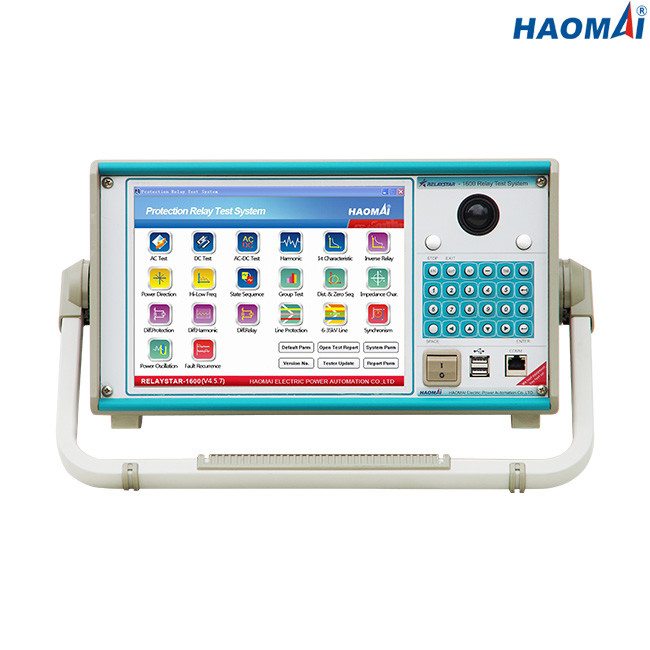

High Power Six-phase Relay Test System
Model: RELAYSTAR-1600
The RELAYSTAR-1600 is all-in-one protection relay test system developed by HAOMAI, quick and easy to use. It can be operated with or without a PC.
The RELAYSTAR-1600 can output 6-phase current(6x0…40A) and 6-phase voltage (6x0…150V) for testing electro-mechanical, solid-state and microprocessor-based protective relays.
The new higher powered voltage-current amplifiers are adopted for RELAYSTAR-1600. The current amplifier delivers maximum compliance voltage to the load constantly during the test, and range changing is done automatically under load. This insures better test results, and saves time by not having to turn the outputs off to change ranges. Constant power output in many cases eliminates the need to parallel or series current channels together to test high burden relays.
Main Features:
1) 6-phase current(6×40A) + 6-phase voltage(6×150V) output
2) Embedded industrial PC with 10.4-inch LCD screen
3) Both local test and PC remote test available
4) Constant power output
5) Steady-state and dynamic testing capability
6) End to end test with in-built GPS
7) Performs transient tests
8) Abundant test modules
Technical Data
Current Generator
| Setting range | 6-phase AC(L-N) | 6x0…40A |
| 3-phase AC(L-N) | 3x0…80A | |
| 1-phase AC(LL-LN) | 1x0…240A | |
| DC(L-N) | 6x0…±20 A | |
| Power | 6-phase AC(L-N) | 6x300VA at 40A |
| 3-phase AC(L-N) | 3x450VA at 80A | |
| 1-phase AC(LL-LN) | 1x1000VA at 240A | |
| DC(L-N) | 6x120VA at 20A | |
| Accuracy | AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A) | |
| DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~20A) | ||
| Resolution | 1mA | |
Voltage Generator
| Setting range | 6-phase AC(L-N) | 6x0…150V |
| 3-phase AC(L-N) | 3x0…300V | |
| DC(L-N) | 6x0…±175V | |
| Power | 6-phase AC(L-N) | 6x80VA at 150V |
| 3-phase AC(L-N) | 3x100VA at 300V | |
| DC(L-N) | 6x80VA at 175V | |
| Accuracy | AC: ±2mV(0.2~2V), ≤0.1% (2~150V) | |
| DC: ±10mV (0.5~5V), ≤0.2% (5~175V) | ||
| Resolution | 1mV | |
Auxiliary DC Supply
| Voltage range | 110V/220V(max.1.5A) |
| Power | max.165VA/330VA |
Binary Inputs
| Number | 10 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | “0”:0～6V; “1”:12V～250V |
| Max. measuring time | 999999.999s |
| Time accuracy | ±1ms |
| Time resolution | 1ms |
Binary Outputs
| Number | 8 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A, 250VDC/0.2A |
In-built Monitoring and Recording
| Monitoring | currents and voltage outputs |
| Recording | analog outputs, binary inputs/outputs status |
| Mode | real time monitoring, no external wiring is required |
| Recording length | unlimited (until the internal memory is full) |
General Generators
| Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz) | |
| resolution: 0.001Hz | |
| Phase | range: -360° ~+360° |
| accuracy: 0.1° | |
| resolution: 0.01° | |
| Harmonic | superposition order: 2~24 times |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | customized (AC 220V/230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 115V |
| Connection | standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight | 18kg(39.68 lb) |
| Dimensions (W x H x D, without handle) | 420×360×210mm(16.54x14.17x8.27 in) |
| Connection port | 2 USB2.0 ports, 1 Ethernet port |
High Power Six-phase Relay Test System RELAYSTAR-1600 is an excellent choice for testing and commissioning engineers to perform protection relay testing on site.
High Power Six-phase Relay Test System RELAYSTAR-1600 passed the Type Test in China KETOP laboratory accredited under ISO/IEC 17025.
High Power Six-phase Relay Test System RELAYSTAR-1600 is used to test SIEMENS SIPROTEC protection relays. Please refer to the below pictures.
