| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015, Type Test Report, Calibration Report |
| Model Number: | RELAYSTAR-806 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Transport Case + Plywood Case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Relay Test Set, Relay Test Kit, Secondary Injection Test Set | Current Output: | 3x0…40A |
|---|---|---|---|
| Voltage Output: | 4x0…150V | Output Accuracy: | ≤0.1% For AC Output |
| End-to-end Test: | Available | Operation: | Local Mode + PC Mode |
| High Light: | Ultraportable Three Phase Relay Test Set,39.68lb Three Phase Relay Test Set,Multifunctional Protective Relay Test Set |
||

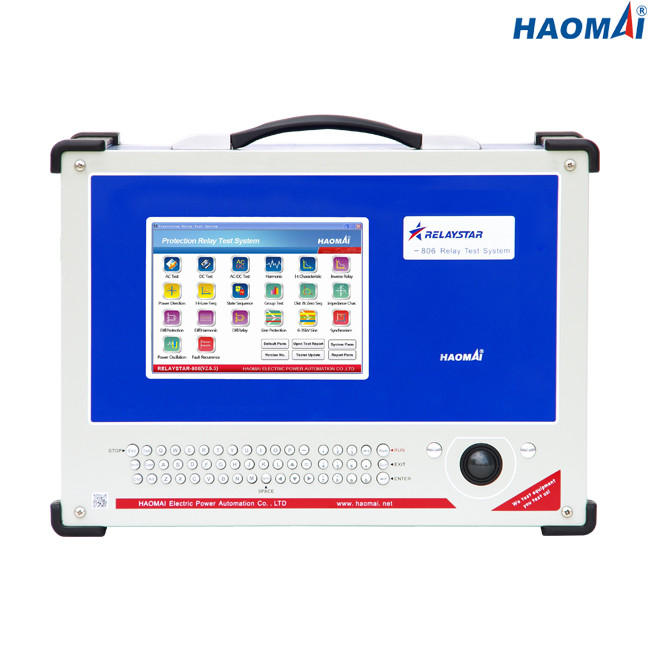

Full Functional Three-phase Relay Test System
Model: RELAYSTAR-806
The RELAYSTAR-806 is universal and portable protection relay test system with three current outputs and four voltage outputs to test single and three phase protective relays.
The RELAYSTAR-806 comprises of three independent current output channels and four independent voltage output channels. This enables the unit to be used as a complete single-phase equipment (voltage, current, and phase angle between them) or, with channels synchronised, as a three phase current or four phase voltage generator from a single phase mains input.
The RELAYSTAR-806 also allows optional connection to a computer for either automatic testing of relays or control of the equipment using Windows compatible software.
Main Features
1) Embedded industrial PC with 8-inch LCD screen
2) Stand-alone operation, no PC required to operate
3) 3-phase current+ 4-phase voltage outputs
4) Perform multi-phase tests
5) Perform acceptance or troubleshooting tests in COMTRADE format
6) Dynamic GPS satellite synchronized end-to- end testing capability
Technical Data
Current Generator
| Setting range | 3-phase AC(L-N) | 3x0…40A |
| 1-phase AC(LL-LN) | 1x0…120A | |
| DC(L-N) | 3x…±10A | |
|
Power
|
3-phase AC(L-N) | 3x300VA at 40A |
| 1-phase AC(LL-LN) | 1x1000VA at 120A | |
| DC(L-N) | 3x120VA at 10A | |
| Accuracy | AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A) | |
| DC: ±5mA(0~0.5A), ≤0.2% (0.5~10A) | ||
| Resolution | 1mA | |
Voltage Generator
| Setting range | 4-phase AC(L-N) | 4x0…150V |
| 1-phase AC(L-L) | 1x0…300V | |
| DC(L-N) | 3x…±160V | |
| Power | 4-phase AC(L-N) | 4x70VA at 150V |
| 1-phase AC(L-L) | 1x140VA at 300V | |
| DC(L-N) | 3x80VA at 160V | |
| Accuracy | AC: ±2mV(0.2~2V), ≤0.1% (2~150V) | |
| DC: ±10mV (0~5V), ≤0.2% (5~160V) | ||
| Resolution | 1mV | |
Auxiliary DC Supply
| Voltage range | 110V/220V(max.1.5A) |
| Power | max.165VA/330VA |
Binary Inputs
| Number | 8 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | “0”:0～6V; “1”:12V～250V |
| Max. measuring time | 999999.999s |
| Time accuracy | ±1ms |
| Time resolution | 1ms |
Binary Outputs
| Number | 4 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A, 250VDC/0.2A |
General Generators
| Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz),<10mHz(65~450Hz),<20mHz(450~1200Hz) | |
| resolution: 0.001Hz | |
| Phase | range: -360° ~+360° |
| accuracy: 0.1° | |
| resolution: 0.01° | |
| Harmonic | superposition order: 2~24 times |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | customized (AC 220V/230V/120V±10%, 1-phase) |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V / 12A at 115V |
| Connection | standard AC socket (IEC 60320) |
Miscellaneous
| Weight | 18kg(39.68 lb) |
| Dimensions (W x H x D, without handle) | 405×300×164mm(15.94x11.81x6.46 in) |
| Connection port | 2 USB2.0 ports, 1 Ethernet port |
Full Functional Three-phase Relay Test System RELAYSTAR-806 passed the Type Test in China KETOP laboratory accredited under ISO/IEC 17025.
HAOMAI is China well-known mark recognized and approved by State Administration for Industry & Commerce of People’s Republic of China, also enjoys high reputation in China market.
HAOMAI Electric is certified by ISO 9001: 2015, ISO 14001:2015 and ISO 45001:2018.
