Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | FR-4 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Transport Case + Carton |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Impedance Tester | Internal Resistance Measurement Range: | 0-99.999mΩ |
---|---|---|---|
Internal Resistance Measurement Accuracy: | ±0.5%rdg ±6dgt | Battery Voltage Measurement Range: | 0-25V |
Operation: | 5-inch Touch Screen | Data Storage: | 64Mbit Flash + 8G SD Card |
High Light: | 25V Battery Testing Equipment,Multimode Battery Testing Equipment,2.43 Lb Battery Internal Resistance Tester |

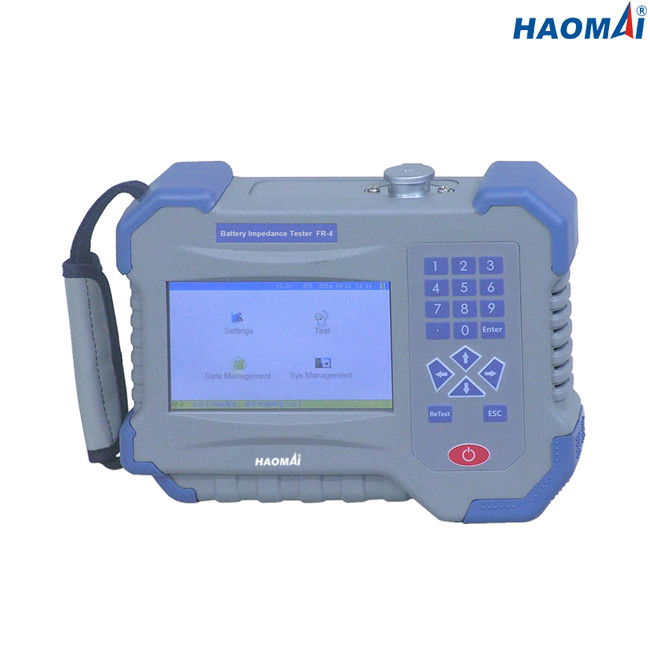

Battery Internal Resistance Tester
Model: FR-4
Battery Internal Resistance Tester FR-4 can test internal resistance and voltage of single battery online, store and process the tested data, give an alarm to the battery fault, and accurately and effectively identify the condition of single battery.
PC analysis software of FR-4 can analyze and display the test data through various charts, and automatically generate test reports.
Main Features
1) 5-inch touch screen for easy operation
2) Able to test battery internal resistance and voltage
3) Both manual and auto test modes available
4) Able to display voltage, current, capacity, time etc. data in real time
5) Able to analyze and compare voltage, impedance and capacity bar chart
6) Enhanced overvoltage protection for safety
7) Test results can be saved on-board or into SD card
8) PC software for data analysis, statistics and test report generation
Technical Data
◇Battery Internal Resistance Measurement
range: 0mΩ-99.999mΩ
accuracy: ±0.5%rdg ±6dgt
resolution: 0.001mΩ
◇Battery Voltage Measurement
range: 0-25V
accuracy: ±0.15%rdg
resolution: 1mV
◇Display: 5-inch color touch screen
◇Data Storage: 64Mbit Flash + 8G SD card
◇Power Supply: 12V, chargeable Li-battery
◇Charger: AC100-240V
◇Standby Time: >8 hours
◇Dimension: 220x170x52mm(8.66x6.69x2.05 in)
◇Weight: 1.1kg(2.43 lb)
Battery Internal Resistance Tester FR-4 is ideal tool for measuring internal resistance and voltage of single battery online.
