Multipurpose Discharge Battery Testing Equipment System For 110V/220V Battery Bank

Battery Discharge Test System

Model: FDT-220/110

Battery banks in power plants and substations must provide the equipment they serve with standby power in the event of a power failure. However, the capacity of such batteries can drop significantly for a number of reasons before their calculated life expectancy is reached. So it is very important to check batteries and battery banks at regular intervals, and the only reliable way of measuring battery capacity is to conduct a discharge test.

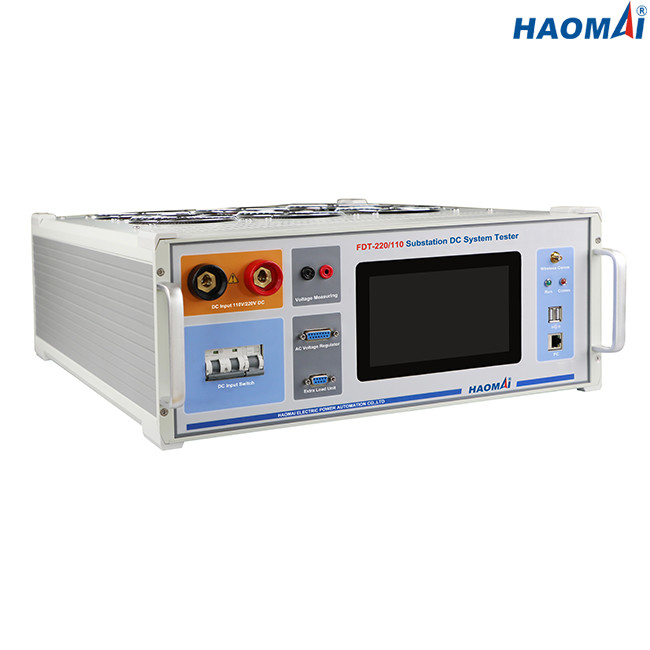

The FDT-220/110 is three-in-one battery discharge test system, which not only can perform discharge testing of battery bank, but also can test battery charger and monitor the charging process of battery bank.

The FDT-220/110 kit is used for 110V or 220V battery bank, and the discharging current can take place at up to 50A. If higher current is needed, the extra load unit can be linked together. Tests can be conducted at constant current and constant power. Together with the wireless battery measuring system, the FDT-220/110 kit becomes a complete stand-alone discharge test system.

Main Features

1) Able to test 110V or 220V battery charger(voltage stabilizing accuracy, current stabilizing accuracy, ripple factor etc.)

2) Able to test discharge of 110V or 220V battery bank

3) Discharge testing for full insight into battery capacity

4) Able to monitor the charging process of battery bank

5) Able to monitor the voltage change of battery cell by wireless communication mode in charging or discharging process

6) Wireless battery measuring system available

7) Patented load technology to ensure high-precision and adjustable constant-current discharge

8) Expandable for larger battery banks using extra load unit

9) Multiple and reliable fault protection measures and self-check

10) Easily save results to a PC for analysis, report generation and storage

Technical Data

1)Specifications of Host

◇Voltage of applicable battery bank: 220VDC, 110VDC

◇Voltage of applicable single cell: 2V, 6V, 12V

◇Discharge current of host: 0~50A@220V, 0~50A@110V

◇Max. discharge current of extra load module: 130A@220V, 65A@110V

◇Number of combined load module: 0~4

◇Constant current accuracy: ±1 %

◇Voltage measurement accuracy: ±0.5 %

◇Communication port: USB, Ethernet

2)Specifications of 3-phase Electronic Voltage Regulator

◇Rated power: 15kVA

◇Rated current: 30A

◇Measurement accuracy: ±0.5 %

◇Environment temperature: -20~+50℃

3)Wireless Battery Measuring System

◇Modulation mode: GFSK

◇Working frequency: 428~434MHZ

◇Transmitting power: <10dBm

◇Receiving sensitivity: -100dBm

◇Transmitting current: <30mA

◇Receiving current: <12mA

◇Transmission speed: 100kbps

◇Transmission distance: <50m

◇Voltage measurement accuracy: >0.5%

◇Working power source: DC 3~18V

Battery Discharge Test System FDT-220/110 is reliable and powerful battery testing equipment in power plants or substations.
