| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015 |
| Model Number: | TWO-110S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Product Name: | Winding Resistance Meter, DC Resistance Tester | Max. DC Current Output: | 10A |
|---|---|---|---|
| Resistance Measurement Range: | 0.5mΩ-100kΩ | Measuring Accuracy: | 0.2% Reading ±2μΩ |
| Built-in Printer: | Available | Operation: | 7-inch Touch Screen |
| High Light: | 6kg Power Transformer Test Set,10A Power Transformer Test Set,7inch DC Resistance Tester |
||

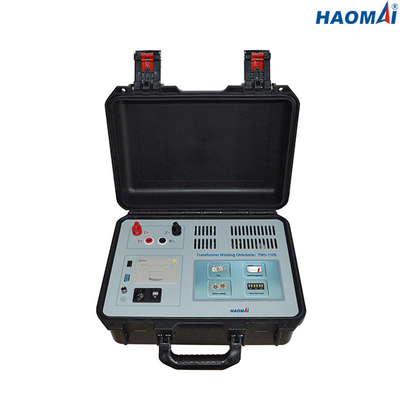

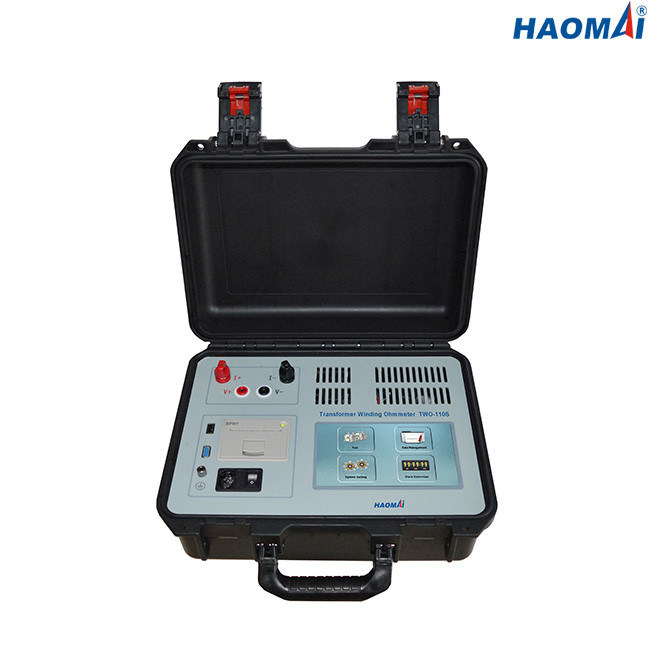

10A Transformer Winding Ohmmeter with Touch Screen
Model: TWO-110S
Transformer Winding Ohmmeter is designed to measure the dc resistance of all types of magnetic windings accurately. It can test transformers and rotating machine windings and perform low-current resistance measurement on connections, contacts and control circuits.
Main Features
●Adopt 4-wire method for resistance measurement
●DC test current up to 10A maximum
●7-inch high brightness touch screen
●Able to save 1000 test results on-board
●Fast auto safety discharge circuit
●Have overcurrent, overvoltage, discharge etc. protection functions
●Able to print the test results directly via built-in printer
Technical Data
◇DC output range: 10A, 5A, 1A, 200mA, 40mA, <20mA, auto
◇Resistance measurement
0.5mΩ-0.8Ω @ 10A
1mΩ-4Ω @ 5A
5mΩ-20Ω @ 1A
100mΩ-100Ω @ 200mA
1Ω-500Ω @ 40mA
100Ω-100kΩ @ <20mA
◇Measuring accuracy: 0.2% reading ±2μΩ
◇Resolution: 0.1μΩ
◇7-inch high brightness touch screen
◇USB port for downloading results
◇Built-in printer for printing test results directly
◇Max. memory capacity: 1000 groups test result
◇Power supply: AC220V/230V,50Hz/60Hz optional
◇Dimension: 360x290x170mm(14.17x11.42x6.69 in)
◇Weight: 6kg(13.23 lb)
◇Environmental Conditions
storage temperature: -20℃~60℃
humidity: <90%
operating temperature: -10℃~50℃
◇Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326
Transformer Winding Ohmmeter TWO-110S is reliable tool for measuring the dc resistance of all types of magnetic windings.
