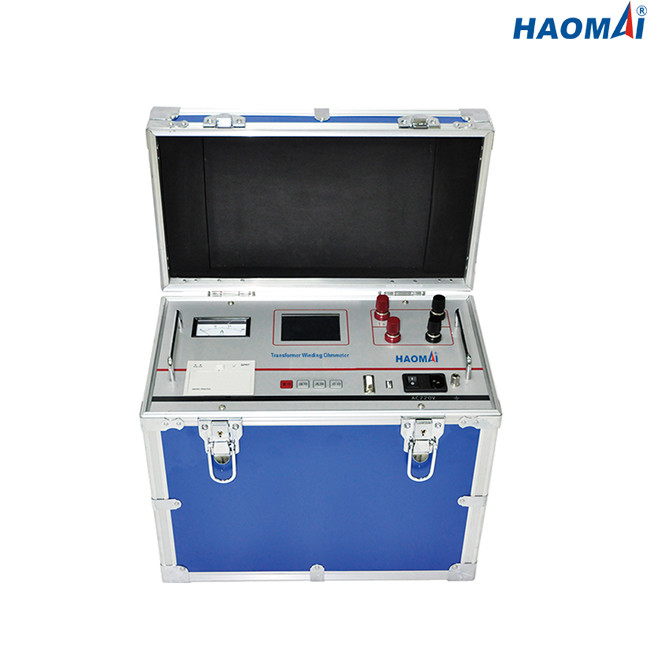

100A ISO9001 Power Transformer Test Set DC Winding Resistance

100A ISO9001 Power Transformer Test Set DC Winding Resistance

  • 100A ISO9001 Power Transformer Test Set DC Winding Resistance
100A ISO9001 Power Transformer Test Set DC Winding Resistance
Product Details:
Place of Origin: China
Brand Name: HAOMAI
Certification: ISO9001:2015
Model Number: TWO-1100S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood Case
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 400 sets per month
Contact Now
Detailed Product Description
Product Name: Winding Resistance Meter, DC Resistance Tester Max. DC Current Output: 100A
Resistance Measurement Range: 30μΩ-4Ω Measuring Accuracy: 0.2% Reading ±2μΩ
Built-in Printer: Available USB Port For Downloading Results: Available
High Light:

100A Power Transformer Test Set

,

ISO9001 Power Transformer Test Set

,

DC Winding Resistance Test Set

100A Transformer Winding Ohmmeter



Model: TWO-1100S

Maximum 100A current for measuring winding resistance of power transformer

Transformer Winding Ohmmeter is designed to measure the dc resistance of all types of magnetic windings accurately. It can test transformers and rotating machine windings and perform low-current resistance measurement on connections, contacts and control circuits. The maximum test current of TWO-1100S can be up to 100A.



Main Features

1) Adopt 4-wire method for resistance measurement

2) DC test current up to 100 A maximum

3) User-selectable maximum current range

4) Resistance measurement from 50μΩ to 4Ω

5) Fast auto safety discharge circuit

6) Able to download test results via USB interface

7) Able to print the test results directly via built-in printer



Technical Data

◇DC output range: 100A, 50A, 20A, 10A, 5A

◇Resistance measurement

30μΩ-100mΩ @ 100A

100μΩ-200mΩ @ 50A

200μΩ-1Ω @ 20A

500μΩ-2Ω @ 10A

2mΩ-4Ω @ 5A

◇Measuring accuracy: ±0.2% reading ± 2μΩ

◇Resolution: 0.1μΩ

◇320×240 colour LCD screen for display

◇USB port for downloading results

◇Built-in printer for printing test results directly

◇Max. memory capacity: 1000 test results

◇Power supply: customized(AC220V/120V±10%, 50Hz/60Hz optional)

◇Dimension: 400x225x350mm(15.75x8.86x13.78 in)

◇Weight: 19.5kg(42.99 lb)

◇Environmental Conditions

storage temperature: -20℃~60℃

humidity: <90%

operating temperature: -10℃~50℃

◇Safety Qualifications and EMC

Safety: designed in accordance with IEC61010-1

EMC: light industrial IEC 61326



Transformer Winding Ohmmeter TWO-1100S is used for measuring winding resistance of power transformer, which the maximum test current can be up to 100A.
