Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | TWO-140S |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Transport Case + Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Winding Resistance Meter, DC Resistance Tester | Max. DC Current Output: | 40A |
---|---|---|---|
Resistance Measurement Range: | 50μΩ-20kΩ | Measuring Accuracy: | 0.2% Reading ±2μΩ |
Built-in Printer: | Available | Operation: | 7-inch Touch Screen |
High Light: | HAOMAI Winding Resistance Meter,40A Winding Resistance Meter,Power Transformer Winding Resistance Test Set |

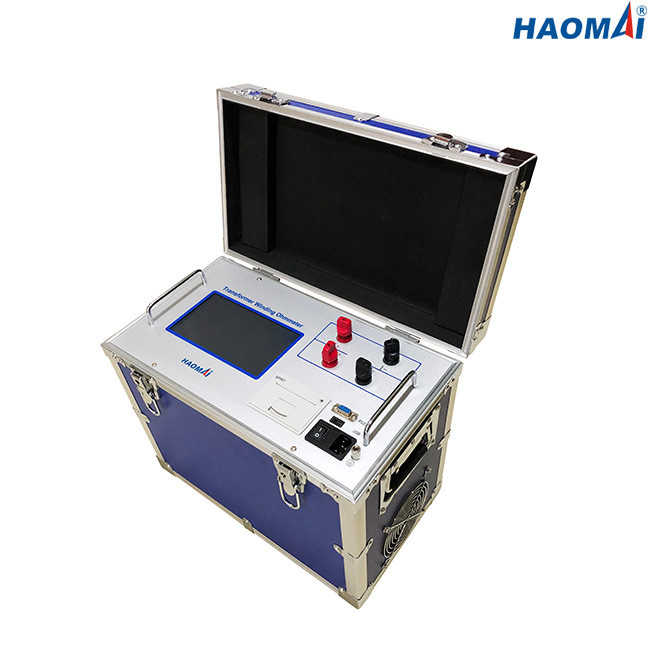

40A Transformer Winding Ohmmeter
Model: TWO-140S
Transformer Winding Ohmmeter is designed to measure the dc resistance of all types of magnetic windings accurately. It can test transformers and rotating machine windings and perform low-current resistance measurement on connections, contacts and control circuits.
Main Features
1) Adopt 4-wire method for resistance measurement
2) DC test current up to 40 A maximum
3) User-selectable maximum current range
4) Resistance measurement from 50μΩ to 20kΩ
5) Fast auto safety discharge circuit
6) Able to download test results via USB interface
7) Able to print the test results directly via built-in printer
Technical Data
◇DC output range: 40A, 20A, 10A, 5A, 2.5A, <20mA
◇Resistance measurement
50μΩ-500mΩ @ 40A
100μΩ-1Ω @ 20A
500μΩ-2Ω @ 10A
1mΩ-4Ω @ 5A
2mΩ-8Ω @ 2.5A
10Ω-20kΩ @ <20mA
◇Measuring accuracy: ±0.2% reading ± 2μΩ
◇Resolution: 0.1μΩ
◇320×240 colour LCD screen for display
◇USB port for downloading results
◇Built-in printer for printing test results directly
◇Max. memory capacity: 1000 test results
◇Power supply: AC220V/230V±10%, 50Hz/60Hz optional
◇Dimension: 400x225x350mm(15.75x8.86x13.78 in)
◇Weight: 13kg(28.67 lb)
◇Environmental Conditions
storage temperature: -20℃~60℃
humidity: <90%
operating temperature: -10℃~50℃
◇Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326
Transformer Winding Ohmmeter TWO-140S is ideal tool for measuring winding resistance of power transformer.
