Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | TWO320 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Winding Resistance Meter, DC Resistance Tester | Three-phase Testing: | Available |
---|---|---|---|
Max. DC Current Output: | 20A | Resistance Measurement Range: | 0-100Ω |
Measuring Accuracy: | 0.2% Reading ±2μΩ | Built-in Printer: | Available |
High Light: | 3Phase Transformer Winding Resistance Meter,ISO9001 Transformer Winding Resistance Meter,20A DC Resistance Tester |

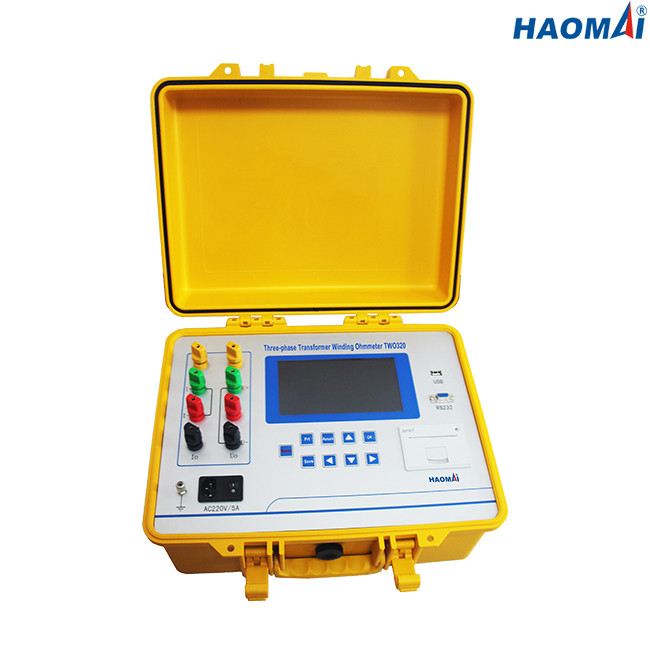

Three-phase Transformer Winding Ohmmeter
Model: TWO320
Three-phase Transformer Winding Ohmmeter is designed to accurately measure three-winding resistance of power transformers. It can save time by testing three-winding without having to disconnect and reconnect leads. The test sequence can be selected as three-winding measurement of HV or LV separately, or single winding test.
Main Features
1) DC test current up to 20 A maximum
2) Automated three-winding measurement capability
3) Fast testing with one-time connection principle
4) Calculates three-phase resistance unbalance rate automatically
5) Fast auto safety discharge circuit
6) Able to print the test results directly via built-in printer
Technical Data
◇DC output: automatically select, maximum 20A
◇Resistance measurement: 0-100Ω
◇Measuring accuracy: 0.2% reading ±2μΩ
◇Resolution: 0.1μΩ
◇7-inch true-color LCD screen for display
◇USB port for downloading results
◇Built-in printer for printing test results directly
◇Max. memory capacity: 500 groups test result
◇Power supply: AC220V/230V, 50Hz/60Hz
◇Dimension: 400x340x195mm(15.75x13.39x7.68 in)
◇Weight: 8kg(17.64 lb)
◇Environmental Conditions
storage temperature: -20℃~60℃
humidity: <90%
operating temperature: -10℃~50℃
◇Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326
Three-phase Transformer Winding Ohmmeter TWO320 is ideal tool for accurately measuring three-winding resistance of power transformers.
