Product Name: | On-load Tap Changer Tester | Output Current: | 1A, 0.5A, 0.2A |
---|---|---|---|
Transition Time Measurement: | 0-320ms | Transition Resistance Measurement: | 0.3Ω-100Ω |
Open Circuit Voltage: | 24V | Operation: | 7-inch Touch Screen |
High Light: | OLTC Transformer On Load Tap Changer Tester,320ms Transformer On Load Tap Changer Tester,Ultraportable OLTC Tester |

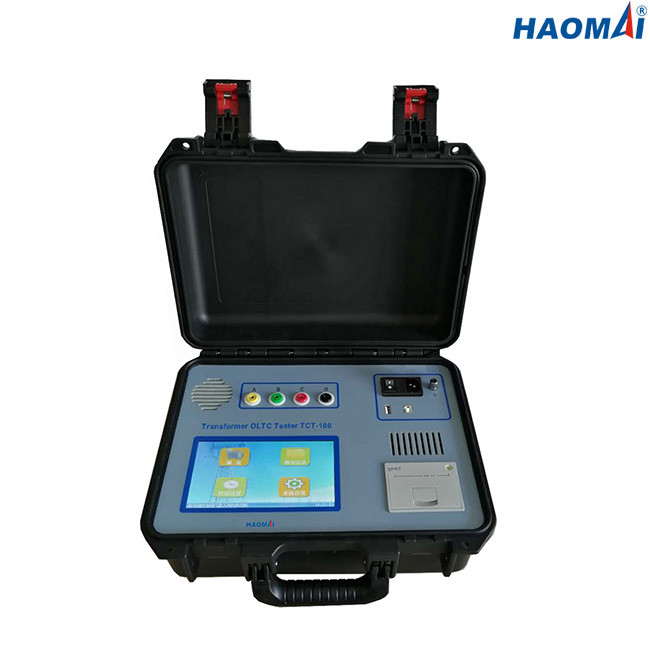

Transformer OLTC Tester
Model: TCT-100
Able to test on-load tap changer of power transformers
Transformer OLTC Tester TCT-100 is used to measure the transition waveform, transition time, transition resistance and three-phase synchronization of on-load tap changer of power transformers.
Main Features
1) Able to measure transition waveform, transition time, transition resistance and three-phase synchronization
2) Touch screen for operation
3) High speed A/D conversion
4) 100kHz high speed sampling
5) Independent voltage source and constant current source
6) Able to download test results via USB interface
7) Able to print the test results directly via built-in printer
Technical Data
◇Output current:1A, 0.5A, 0.2A
◇Transition time measurement
●range: 0-320ms
●accuracy: ±0.1% reading ± 0.2ms
◇Transition resistance measurement
●range: 0.3Ω-20Ω @ 1A
5Ω-40Ω @ 0.5A
20Ω-100Ω @ 0.2A
●accuracy: ±5% reading ± 0.1Ω
◇Open circuit voltage: 24V
◇7-inch LCD screen for display
◇USB interface for downloading test results
◇Able to save test results on-board
◇Built-in printer for printing test results directly
◇Power supply: AC220V/230V±10%, 50Hz/60Hz
◇Dimension: 340x245x210mm(13.39x9.65x8.27 in)
◇Weight: 7kg(15.43 lb)
◇Environmental Conditions
storage temperature: -20℃~60℃
humidity: <90%
operating temperature: -10℃~50℃
◇Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326
Transformer OLTC Tester TCT-100 is reliable tool for testing on-load tap changer of power transformers.
