HAOMAI Portable Power Transformer Test Set Lightweight 10A Demagnetizer

HAOMAI Portable Power Transformer Test Set Lightweight 10A Demagnetizer

  • HAOMAI Portable Power Transformer Test Set Lightweight 10A Demagnetizer
HAOMAI Portable Power Transformer Test Set Lightweight 10A Demagnetizer
Product Details:
Place of Origin: China
Brand Name: HAOMAI
Certification: ISO9001:2015
Model Number: TDU300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood Case
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 400 sets per month
Contact Now
Detailed Product Description
Product Name: Transformer Core Degausser Max. Demagnetization Current: 10A
Demagnetization Current Gears: Auto, 10A, 5A, 1A, 500mA, 200mA Demagnetization Progress: 0-100%
Auto Or Manual Mode: User Selectable Weight Of Tester: 6.5kg
High Light:

HAOMAI Power Transformer Test Set

,

Lightweight Power Transformer Test Set

,

10A Portable Power Transformer Demagnetizer

Transformer Demagnetizer



Model: TDU300

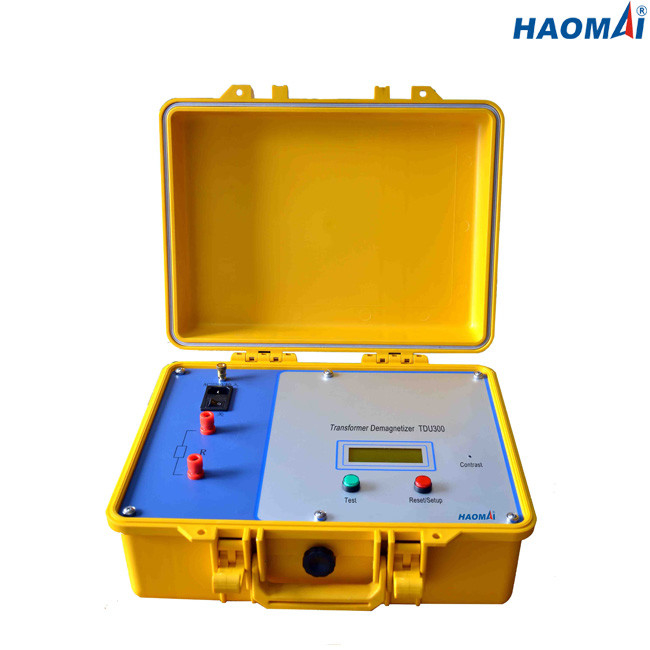

Transformer Demagnetizer TDU300 is portable instrument for single and three-phase transformer core demagnetization.

The demagnetization process can eliminate the remanent magnetism from transformer core. In this way, users can efficiently avoid the remanence harm of transformer, which can free from excitation inrush current at the start-up of transformers, incorrect operation or incorrect diagnosis, and ensure the safe operation of the transformer and extend the life of the transformer.

Transformer Demagnetizer TDU300 can demagnetize safely and fast, and the percentage progress will be displayed during demagnetization.



Main Features

1) Maximum demagnetization current 10A

2) Six demagnetization current gears: auto, 10A, 5A, 1A, 500mA, 200mA

3) Auto or manual mode, user selectable

4) Fast demagnetization speed

5) Display percentage progress during demagnetization

6) Light weight: only 6.5kg / 14.33 lb



Technical Data

●Maximum demagnetization current: 10A

●Six demagnetization current gears: auto, 10A, 5A, 1A, 500mA, 200mA

●Demagnetization progress: 0-100%

●Power Supply: AC220V/230V, 50Hz/60Hz

●Dimensions: 400 x 310 x 160 mm (15.75” x 12.20” x 6.30”)

●Weight: 6.5kg (14.33 lb)

Environmental Conditions

Storage temperature: -20°C to 70°C (-4°F to +158°F)

Operating temperature: -20°C to +50°C (-4°F to +122°F)

Humidity: < 95% RH, non-condensing

Safety Qualifications and EMC

Safety: designed in accordance with IEC61010-1, 2006/95/EC

EMC: 2004/108/EC



Transformer Demagnetizer TDU300 is ideal tool for single and three-phase transformer core demagnetization.
