Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015, Calibration Report |
Model Number: | TDC3100 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |

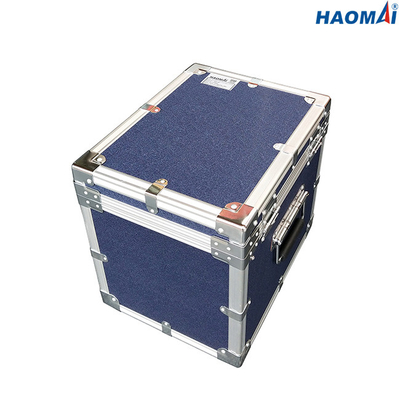

Packaging Details: | Transport Case + Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Tan Delta Tester, IPF, C&DF Test Set | HV Output: | 0.5-12kV |
---|---|---|---|
Maximum Output Current: | 200mA | Dissipation Factor(tgδ) Measurement: | Available |
Capacitance (Cx) Measurement: | Available | CVT Ratio Test: | Available |
High Light: | 50.27 Lb Power Transformer Test Set,12kV Power Transformer Test Set,Multiphase Tan Delta Test Kit |
Capacitance and Dissipation Factor Test System
Model: TDC3100

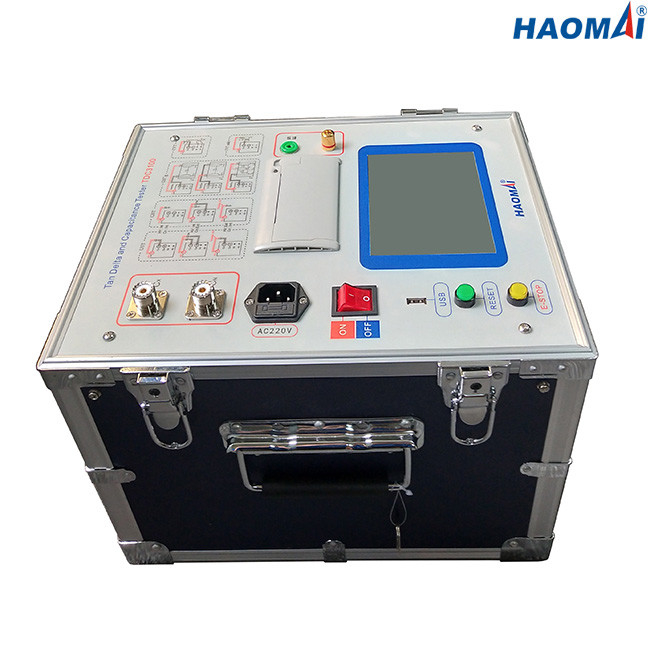

Capacitance and Power/Dissipation Factor Test System TDC3100, namely C&DF Test Set, is the powerful test system for analyzing the insulation condition of high voltage equipment by measuring the power/dissipation factor and capacitance.
Capacitance and Power/Dissipation Factor Test System TDC3100 is 22.8kg(50.27 lb), which makes it easy to transport to the testing locations. The touch screen on the panel of TDC3100 makes the operation easier and faster.
Main Features
1)Test standard:IEC60247
2)Selectable test mode: UST, GST, GSTg
3)10 kV insulation power factor/dissipation factor (tan∂) measurement
4)Capacitance measurement up to 60 nF at 12 kV
5)CVT ratio test available(suitable for CVT with accuracy class 1.0 or 3.0)
6)Interference suppression circuits for testing under severe interference or noise conditions
7)Touch screen for easy and quick operation
8)Built-in thermal printer for printing out test results directly
Technical Data
●Test Standard: IEC60247
●Internal HV Output: 0.5~12kV
Output accuracy: ±(reading×1%)
Resolution: 100V
Maximum output current: 200mA
Capacity: 2000VA
●Self-excitation Power Source: AC 0~50V/15A
●Dissipation Factor(tgδ) Measurement
Measuring range: no limit
Accuracy: ±(reading×1%+0.040%)
Resolution: 0.001%
●Capacitance (Cx) Measurement
Measuring range: 15pF < Cx < 300nF
Cx < 60nF @12kV
Cx < 150nF @5kV
Cx < 300nF @1kV
Cx <300nF for CVT test
Accuracy: ±(reading×1%+1.00pF)
Resolution: 0.001pF(4 valid digital)
●CVT Ratio Test(suitable for CVT with accuracy class 1.0 or 3.0)
Measuring range: 10~10000
Accuracy: 1%
●Frequency
Single frequency: 50Hz or 60Hz
Variable frequency: 45Hz/55Hz, 47.5Hz/52.5Hz, 55Hz/65Hz, 57.5Hz/62.5Hz
●Built-in thermal printer for test results printing
●USB interface for test results download storage
●Data storage: 200 test results can be stored into tester
●Power Supply: customized(AC 220V/230V/120V/127V±10%, 1-phase), 50Hz/60Hz
●Environmental Condition
Storage temperature: -20℃~60℃
Operating temperature: -10℃~50℃
Humidity: <90%
●Miscellaneous
Dimension of host: 350x270mx270mm(13.78x10.62x10.63 in.)
Weight of host: 22.8kg(50.27 lb)
●Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326
Capacitance and Power/Dissipation Factor Test System TDC3100(C&DF Test Set) TDC3100 is reliable test instrument for testing dissipation factor(tgδ), power factor(PF) and Capacitance(Cx) of transformers, circuit breakers, rotating machines, cables, CVT etc..
