Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | ODB-100P |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Transport Case + Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Oil Test Set, Oil Tester, Oil BDV Tester | Programmed Test Sequences: | IEC60156, ASTM D877, ASTM D1816, Custom |
---|---|---|---|
Output Voltage: | AC 0-100kV | Voltage Measurement Accuracy: | ±3% |
Max. Test Times: | 9 | Built-in Printer: | With |
High Light: | IEC60156 Insulating Oil Testing Equipment,60Hz Insulating Oil Testing Equipment,100kV Insulating Oil Dielectric Strength Tester |

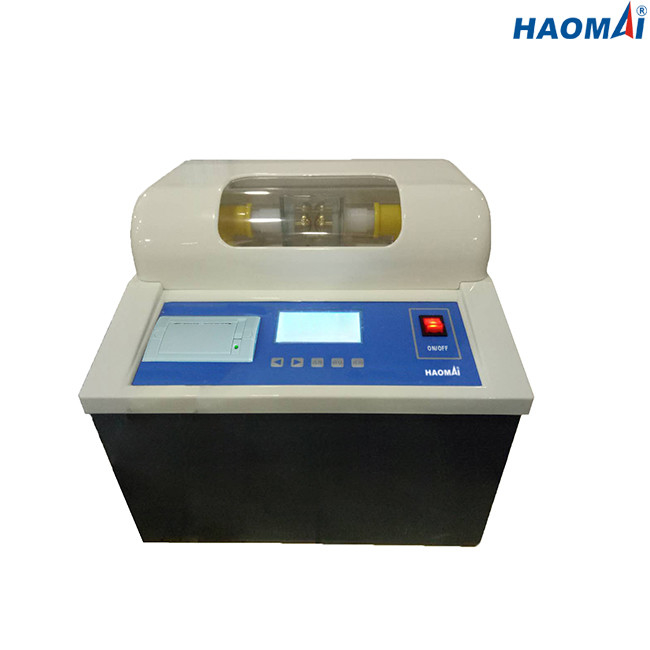

Insulation Oil Dielectric Breakdown Voltage Tester
Model: ODB-100P
Monitoring and maintenance of oil quality is essential in ensuring the reliable operation of oil filled electrical equipment. One of the fundamental tests of oil quality is the breakdown voltage test, which is a measure of the oil’s ability to withstand electric stress.
Insulation Oil Dielectric Breakdown Voltage Tester ODB-100P performs accurate breakdown voltage tests on mineral, ester and silicon insulating liquids. The maximum AC voltage output can reach 100kV.
Main Features
●Suitable for mineral, ester and silicon oils
●Able to measure insulating oil breakdown voltage
●Maximum AC voltage output: 100kV
●Automated analysis and reporting
●Breakdown test of user-defined
●Able to save test results on-board
●Able to print test results via built-in thermal printer
●More suitable for field test due to light weight
Technical Data
◇Output voltage: AC 0~100kV
◇Voltage measurement accuracy: ±3%
◇Resolution:0.1kV
◇Stir time: 0~120s(adjustable)
◇Stand time: 0~15min(adjustable)
◇Interval of boosting: 0~5min (adjustable)
◇Max. test times: 9
◇Voltage slew rate: 0.5kV/s~5kV/s (adjustable)
◇Able to save 100 test results on-board
◇Able to print test results via built-in thermal printer
◇Communicate with computer with RS232 interface
◇Power supply: AC 220V/230V±10%, 50Hz/60Hz optional
◇Power consumption: 200VA
◇Others
dimension: 465x385x425mm(18.31x15.16x16.73 in)
weight: 30kg(66.14 lb)
◇Environmental Conditions
storage temperature: -30 ºC to +65 ºC
humidity: <95% RH at 40 ºC storage
operating temperature: 0 ºC to +50 ºC
◇Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326-1 Class B
Insulation Oil Dielectric Breakdown Voltage Tester ODB-100P is reliable tool for performing accurate breakdown voltage tests on mineral, ester and silicon insulating liquids.
