Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | T6000 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Transport Case + Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Oil Test Set, Oil Dissipation Factor Tester | AC High Voltage Output: | 400-2200V |
---|---|---|---|
DC High Voltage Output: | 200-600V | Tan Delta(tgδ) Measurement: | Without Limit |
Volume Resistivity(ρ) Measurement: | Accuracy: ±reading X10% | Operation: | Touch Screen |
High Light: | Lightweight Transformer Oil BDV Test Kit,Resistivity Transformer Oil BDV Test Kit,600V Oil Tan Delta And Resistivity Tester |

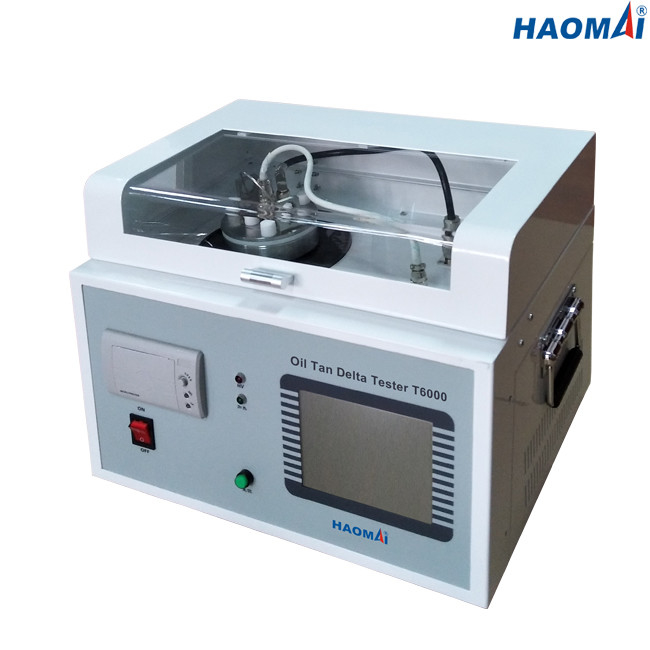

Oil Tan Delta Tester
Model: T6000
To ensure the reliable operation of oil filled electrical equipment, monitoring and maintenance of insulating oil quality is essential.
Oil Tan Delta Tester T6000 is a fully automatic unit, which is capable of measuring Tan Delta(dissipation/power factor), Relative Permittivity, Insulation Resistance and Volume Resistivity of a wide range of oils such as mineral, ester and silicon insulating oils.

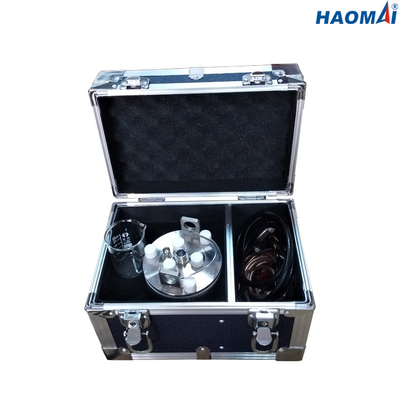

A precision Test Cell based on IEC 60247 is used for Oil Tan Delta Tester T6000.The Test Cell is designed to give highly accurate and repeatable results.
All test results can be stored in tester(up to 200 test results), printed out by built-in thermal printer, or downloaded to PC via built-in USB port.
Main Features
1) 320×240 touch screen for operation
2) Able to measure Tan Delta, Relative Permittivity, Insulation Resistance and Volume Resistivity of insulating oil
3) Able to measure capacitance of test cell
4) Innovative Test Cell based on IEC 60247: easy to assemble and clean
5) Stores up to 200 test records on-board
6) Download saved test results to PC via USB port
7) Internal thermal printer for printing test results
8) Compact and lightweight (18 kg / 39.68 lbs)
Technical Data
◇AC High Voltage Output
range: 400~2200V
accuracy: ±2%
resolution: 100V
◇DC High Voltage Output
range: 200~600V
accuracy: ±2%
◇Temperature Control
induction furnace: max. power 500W
control range: ≤100℃
control error: ±0.5℃
measuring resolution: 0.1℃
temperature control time: from room temperature to 90℃, <20min
◇Tan Delta(tgδ) Measurement
range: without Limit
resolution: 0.001%
accuracy: ±(readingx0.5%+0.020%)
◇Capacitance(Cx) measurement
range:15pF-300pF
resolution: 0.01pF
accuracy:±(readingx0.5%+0.5pF)
◇Relative Permittivity(εr) Measurement
calculated automatically according to Cx
accuracy: ±reading x0.5%
◇Insulation Resistance(Rx) Measurement
range:10M-20T
resolution:0.01
accuracy: ±reading x10%
◇Volume Resistivity(ρ) Measurement
calculated automatically according to Rx
accuracy: ±reading x10%
◇General
●Power supply: customized (AC220V/230V/120V,50Hz/60Hz optional)
●Dimension:450x310x360mm(17.72x12.20x14.17 in)
●Weight: 18 kg(39.68 lbs)
◇Environmental Conditions
●Storage temperature: -20°C to 70°C (-4°F to +158°F)
●Operating temperature: -20°C to +50°C (-4°F to +122°F)
●Humidity: < 95% RH, non-condensing
◇Safety Qualifications and EMC
●Safety: designed in accordance with IEC61010-1, 2006/95/EC
●EMC: 2004/108/EC
Oil Tan Delta Tester T6000 is reliable test instrument for measuring Tan Delta(dissipation/power factor), Relative Permittivity, Insulation Resistance and Volume Resistivity of insulating oil.
