Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | ODB-80 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Oil Test Set, Oil Tester, Oil BDV Tester | Programmed Test Sequences: | IEC60156, ASTM D877, ASTM D1816, Custom |
---|---|---|---|
Output Voltage: | AC 0-80kV | Voltage Measurement Accuracy: | ±3% |
Max. Test Times: | 10 | Built-in Printer: | With |
High Light: | 50Hz Insulating Oil Testing Equipment,Multimode Insulating Oil Testing Equipment,80kV Dielectric Breakdown Voltage Tester |

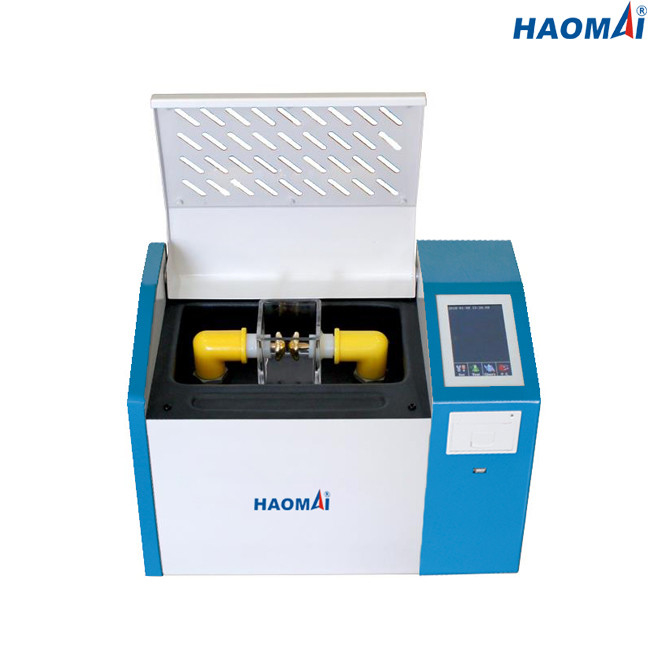

80kV Insulating Oil Dielectric Breakdown Voltage Tester
Model: ODB-80
Main Features
●Suitable for mineral, ester and silicon oils
●Able to measure insulating oil breakdown voltage
●Color touch screen for operation
●Maximum AC voltage output: 80kV
●Automated testing to wide range of standards
●Automated analysis and reporting
●USB interface for downloading test results
●Able to print test results via built-in thermal printer
Technical Data
◇Programmed test sequences: IEC60156/BS EN60156/IS6792/BS5874/VDE0370-5/ GB/T507-2002, ASTM D877, ASTM D1816, JIS C2101, Custom
◇Output voltage: AC 0~80kV
◇Voltage measurement accuracy: ±3%
◇Resolution:0.1kV
◇Stir time: 0~120s(adjustable)
◇Stand time: 0~15min(adjustable)
◇Interval of boosting: 0~5min(adjustable)
◇Max. test times: 10
◇Voltage slew rate: 0.5kV/s~5kV/s(adjustable)
◇Colorful touch screen for operation
◇Able to save 100 test results on-board
◇Able to print test results via built-in thermal printer
◇Able to download test results via USB flash disk
◇Power supply: AC 220V/230V±10%, 50Hz/60Hz
◇Power consumption: 200VA
◇Others
dimension: 446x228x332mm(17.56x8.98x13.07 in)
weight:32kg(70.55 lb)
◇Environmental Conditions
storage temperature: -30 ºC to +65 ºC
humidity: <95% RH at 40 ºC storage
operating temperature: 0 ºC to +50 ºC
◇Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326-1 Class B
Insulation Oil Dielectric Breakdown Voltage Tester ODB-80 is powerful tool for breakdown voltage tests on mineral, ester and silicon insulating liquids.
