| Place of Origin: | China |
| Brand Name: | HAOMAI |
| Certification: | ISO9001:2015 |
| Model Number: | HTT-101 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 400 sets per month |
| Design Standard: | ISO6205-1983 | Application: | Measure Interfacial Tension Of Oil Against Water |
|---|---|---|---|
| Measuring Range: | 0-200mN/m | Accuracy: | 0.1% Reading ±0.1mN/m |
| Resolution: | 0.1mN/m | Sensibility: | 0.1mN/m |
| High Light: | HAOMAI Insulating Oil Testing Equipment,200mN/M Insulating Oil Testing Equipment,Automatic Oil BDV Test Kit |
||

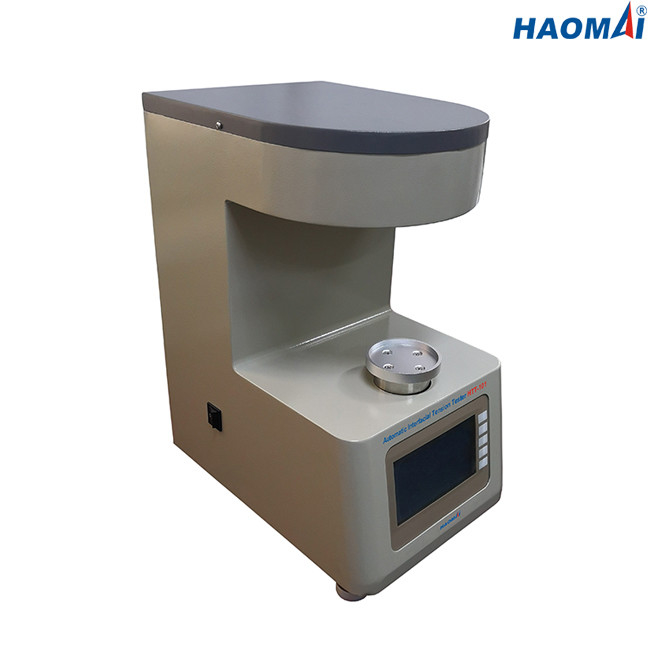

Automatic Interfacial Tension Tester
Model: HTT-101
Interfacial Tension Tester is designed according to standard ISO6205-1983 Petroleum products-Mineral oils-Determination of interfacial tension of oil against water-Ring method, which can measure interfacial tension of mineral oils against water.
Main Features
1) Design according to standard ISO6205-1983
2) Able to measure interfacial tension of mineral oils against water
3) Display equivalent tension value and current weight in real time
4) Adopt electromagnetic force-balance-type sensor to improve measurement accuracy
5) Integrated temperature detection circuit for temperature compensation
6) 240×128 dot matrix LCD display
7) Able to save 255 test results with time tags on board
8) Able to print test results via built-in thermal printer
Technical Data
◆Measuring range: 0-200mN/m
◆Accuracy: 0.1% reading ±0.1mN/m
◆Resolution: 0.1mN/m
◆Sensibility: 0.1mN/m
◆Mains: AC220V±20%, 50Hz±10%
◆Maximum power dissipation: 20W
◆Dimensions: 200×300×330mm(7.87×11.81×12.99 in)
◆Weight: 6kg(13.23 lb)
◆Environmental conditions
operating temperature: 10-30℃
humidity: ≤85% RH
Automatic Interfacial Tension Tester HTT-101 is ideal tools for engineers.
