Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | OTD-800 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Oil Test Set, Oil Dissipation Factor Tester | AC High Voltage Output: | 500-2200V |
---|---|---|---|
DC High Voltage Output: | 0-500V | Test Standard: | IEC 60247, ASTM D924, ASTM D1169 Etc. |
Test Temperature: | 0-125℃ | Operation: | Touch Screen |
High Light: | ASTM Insulating Oil Testing Equipment,22 kg Insulating Oil Testing Equipment,Multifunctional Oil Tan Delta Tester |

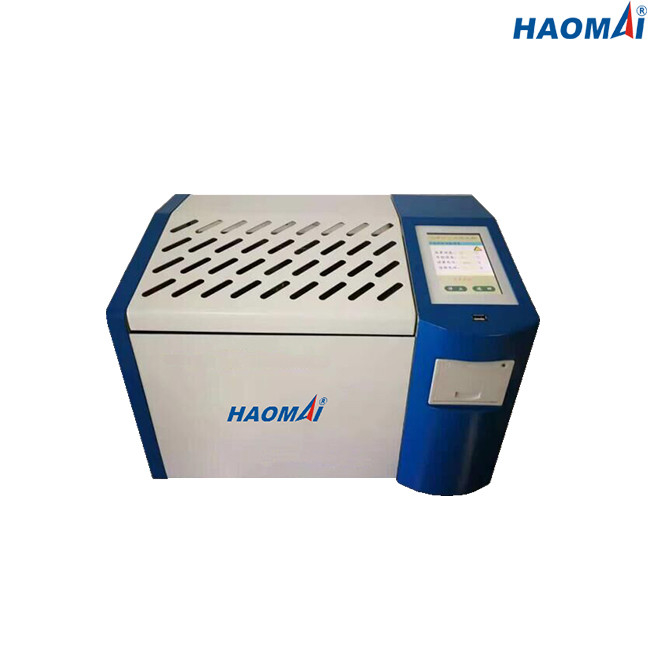

Multifunctional Oil Tan Delta Tester
Model: OTD-800
To ensure the reliable operation of oil filled electrical equipment, monitoring and maintenance of insulating oil quality is essential.
Multifunctional Oil Tan Delta Tester OTD-800 is a fully automated tester for measuring Tan Delta, resistivity and relative permittivity of insulating oils.
A three-electrode structure test cell conforming to IEC 60247 is used for Multifunctional Oil Tan Delta Tester OTD-800. It can eliminate the influence of stray capacitance and leakage on dielectric loss test results.
The integrated automated oil drain facility is equipped for Multifunctional Oil Tan Delta Tester OTD-800, without the need to move the oil vessel.
Main Features
●Colour touch screen for operation
●Able to measure Tan Delta, Relative Permittivity and Resistivity of insulating oils
●Able to measure capacitance of test cell
●Innovative Test Cell based on IEC 60247: easy to assemble and clean
●Fully automated international standards and user defined tests
●Equipped with integrated automated oil drain facility
●Download saved test results via USB interface
●Built-in thermal printer for printing test results directly
Technical Data
◇Fully automated international standards: IEC 60247, ASTM D924, ASTM D1169 etc.
◇Tan Delta(tan∂) Measurement
range: 0.00001~100
resolution: 0.00001
accuracy: ±1% reading ± 0.0001
◇Relative Permittivity(εr) Measurement
range: 1.000~30.000
resolution: 0.001
accuracy:±1% reading
◇Resistivity(ρ) Measurement
range: 2.5 MΩm~20 TΩm
accuracy: ±10% reading
◇Capacitance(Cx) measurement
range: 5pF-200pF
resolution: 0.01pF
accuracy: ±1% reading ± 0.5pF
◇Test Temperature
range: 0~125℃
resolution: 0.1℃
accuracy: ±0.5℃
◇AC Voltage Output
range: 500~2200V(continuously adjustable)
accuracy: ±2%
◇DC Voltage Output
range:0~500V(continuously adjustable)
accuracy: ±2%
◇General
●Power supply: AC220V/230V±10%, 50Hz/60Hz
●Dimension:500x360x420 mm(19.69x14.17x16.54 in)
●Weight: 22 kg(48.50 lb)
◇Environmental Conditions
●Storage temperature: -20°C to 70°C (-4°F to +158°F)
●Operating temperature: -20°C to +50°C (-4°F to +122°F)
●Humidity: < 95% RH, non-condensing
◇Safety Qualifications and EMC
●Safety: designed in accordance with IEC61010-1, 2006/95/EC
●EMC: 2004/108/EC
Multifunctional Oil Tan Delta Tester OTD-800 is powerful tool for measuring Tan Delta, Relative Permittivity and Resistivity of insulating oils and capacitance of test cell.
