Name: 80kV Transformer Oil BDV Testing Machine Set IEC60156 And ASTM Standrads
Brand: HAOMAI
SKU: ODB-80P

Home Products Insulating Oil Testing Equipment

80kV Transformer Oil BDV Testing Machine Set IEC60156 And ASTM Standrads

Product Details:

Place of Origin:	China
Brand Name:	HAOMAI
Certification:	ISO9001:2015
Model Number:	ODB-80P

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Plywood Case
Delivery Time:	5-10 working days
Payment Terms:	T/T
Supply Ability:	400 sets per month

Contact Now

Detailed Product Description

Product Name:	Oil Test Set, Oil BDV Tester	Programmed Test Sequences:	IEC60156, ASTM D877, ASTM D1816, Custom
Output Voltage:	AC 0-80kV	Voltage Measurement Accuracy:	±3%
Max. Test Times:	9	Built-in Printer:	With
High Light:	80kV Transformer Oil BDV Testing Machine , IEC60156 Transformer Oil BDV Testing Machine , ASTM Transformer Oil Test Set

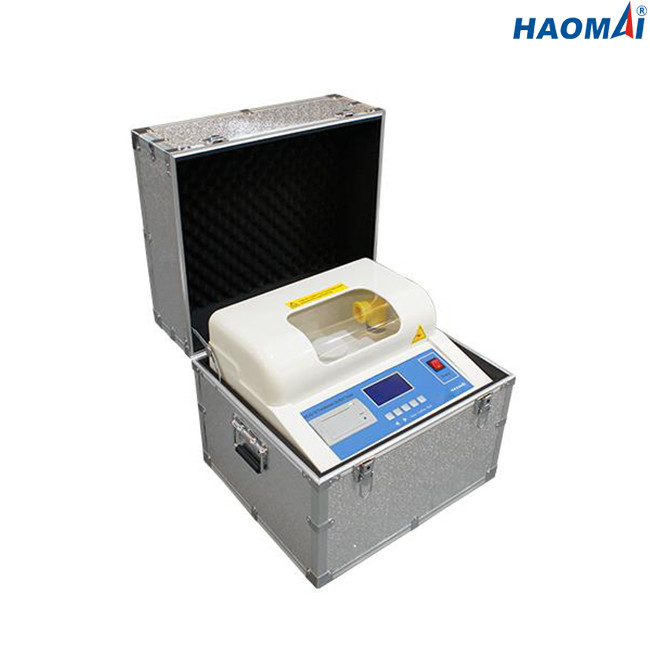

80kV Insulating Oil Tester

Model: ODB-80P

80kV Insulating Oil Tester ODB-80P performs accurate breakdown voltage tests on mineral, ester and silicon insulating liquids.

Technical Data

◇Output voltage: AC 0~80kV

◇Voltage measurement accuracy: ±3%

◇Resolution:0.1kV

◇Stir time: 0~120s(adjustable)

◇Stand time: 0~15min(adjustable)

◇Interval of boosting: 0~5min (adjustable)

◇Max. test times: 9

◇Voltage slew rate: 0.5kV/s~5kV/s (adjustable)

◇Able to save 100 test results on-board

◇Able to print test results via built-in thermal printer

◇Power supply: customized (AC 220V/230V±10%, 50Hz/60Hz optional)

◇Power consumption: 200VA

◇Others

dimension: 465x385x425mm(18.31x15.16x16.73 in)

weight: 30kg(66.14 lb)

◇Environmental Conditions

storage temperature: -30 ºC to +65 ºC

humidity: <95% RH at 40 ºC storage

operating temperature: 0 ºC to +50 ºC

80kV Insulating Oil Tester ODB-80P is reliable test instrument for testing insulating oil.
