Place of Origin: | China |
Brand Name: | HAOMAI |
Certification: | ISO9001:2015 |
Model Number: | ODB-80 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Plywood Case |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T |
Supply Ability: | 400 sets per month |
Product Name: | Oil Test Set, Oil Tester, Oil BDV Tester | Programmed Test Sequences: | IEC60156, ASTM D877, ASTM D1816, Custom |
---|---|---|---|
Output Voltage: | AC 0-80kV | Voltage Measurement Accuracy: | ±3% |
Max. Test Times: | 10 | Built-in Printer: | With |
High Light: | ISO9001 Insulating Oil Testing Equipment,70.55 lb Insulating Oil Testing Equipment,80kV Oil Breakdown Voltage Tester |

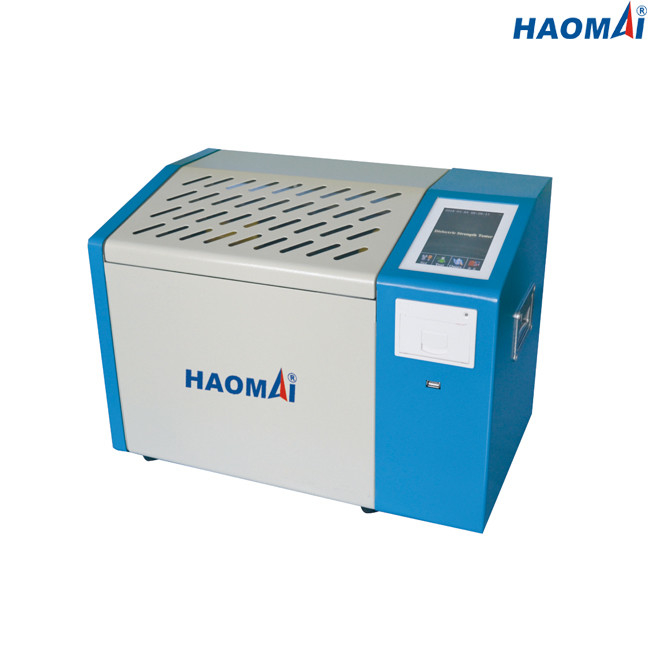

Oil Breakdown Voltage Tester
Model: ODB-80
The Oil Breakdown Voltage Tester ODB-80 is capable of automatically testing the electrical breakdown strength of insulating liquids(mineral or silicone oils and ester liquids). The test sequences can be accomplished easily and fully automatically in compliance with the international standards. It is possible to determine the exact condition of the insulating material via reliable test results.
The ODB-80 is designed for mobile use as well as for daily continuous operation in laboratories. The compact and sophisticated design guarantees the safe and reliable operation for several hundred thousands of measurements.
Main Features
●Fully automatic testing of the breakdown strength in compliance with international standards
●Easy creation of user-specific test sequences
●Suitable for mineral or silicone oils and ester liquids
●Designed for mobile use on site as well as for daily continuous operation in laboratories
●Color touch screen for operation
●Maximum test voltage 80kV
●Automated analysis and reporting
●USB interface for downloading test results
●Able to print test results via built-in thermal printer
Technical Data
◇Programmed test sequences: IEC60156/BS EN60156/IS6792/BS5874/VDE0370-5/ GB/T507-2002, ASTM D877, ASTM D1816, JIS C2101, Custom
◇Output voltage: AC 0~80kV
◇Voltage measurement accuracy: ±3%
◇Resolution:0.1kV
◇Stir time: 0~120s(adjustable)
◇Stand time: 0~15min(adjustable)
◇Interval of boosting: 0~5min(adjustable)
◇Max. test times: 10
◇Voltage slew rate: 0.5kV/s~5kV/s(adjustable)
◇Colorful touch screen for operation
◇Able to save 100 test results on-board
◇Able to print test results via built-in thermal printer
◇Able to download test results via USB flash disk
◇Power supply: AC 220V/230V±10%, 50Hz/60Hz
◇Power consumption: 200VA
◇Others
dimension: 446x228x332mm(17.56x8.98x13.07 in)
weight:32kg(70.55 lb)
◇Environmental Conditions
storage temperature: -30 ºC to +65 ºC
humidity: <95% RH at 40 ºC storage
operating temperature: 0 ºC to +50 ºC
The Oil Breakdown Voltage Tester ODB-80 can perform repeatable breakdown measurements in mineral, silicone and plant oils. It is designed for portable use onsite as well as for daily continuous operation in laboratories.
